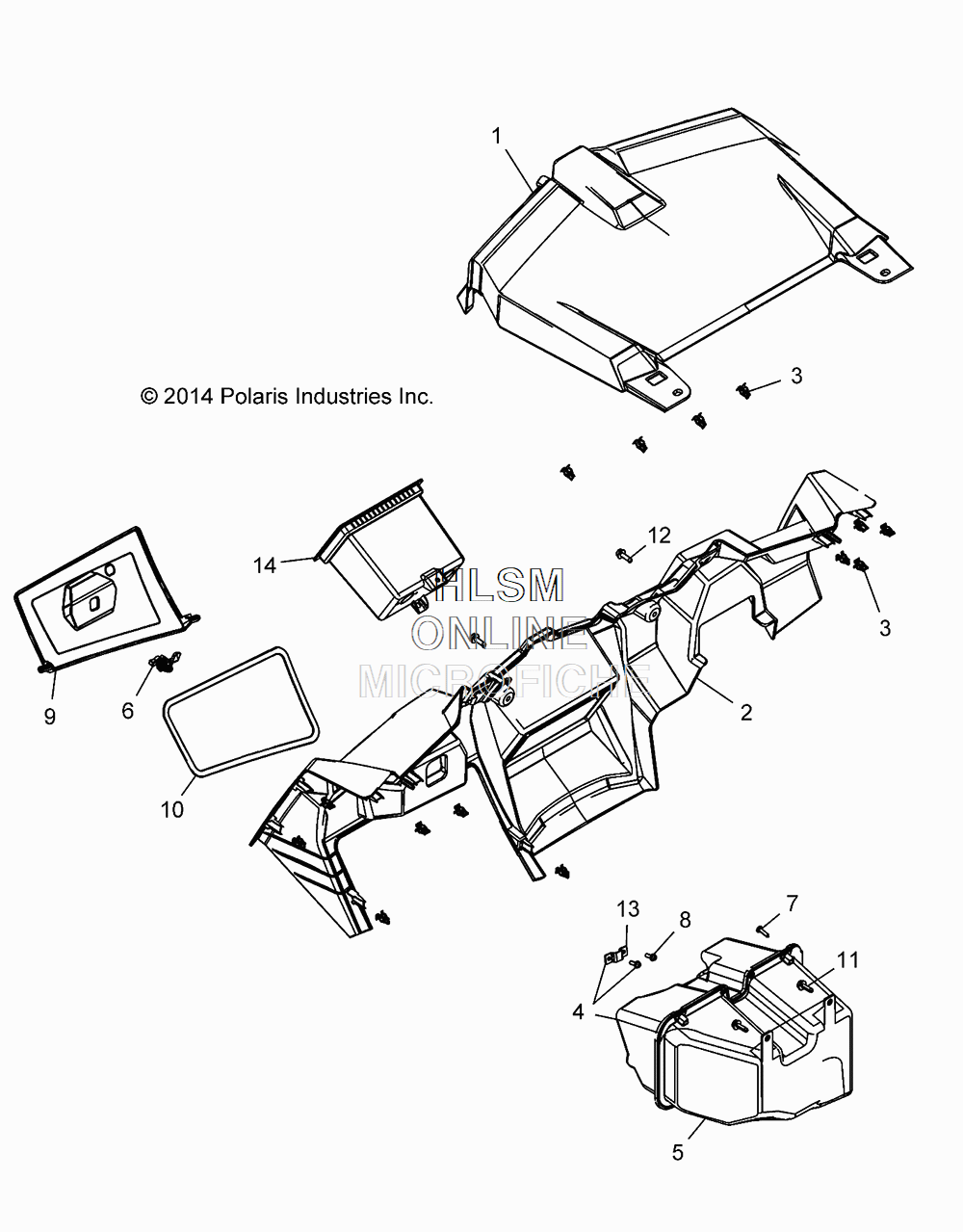

DASH AND GLOVEBOX для Polaris RZR 900 50 INCH MD [PZ17VAE87NK] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    2634956-070 ASM., UPPER IP, (BLACK) [INCL. QTY 7 OF REF. 3]
    ASM., UPPER IP, (BLACK) [INCL. QTY 7 OF REF. 3]
  • 2
    2636048-070 ASM-LOWER IP, WARNDECAL, MD, (BLACK) [INCL. WARNING DECALS] [INCL. QTY 10 OF REF. 3]
    ASM-LOWER IP, WARNDECAL, MD, (BLACK) [INCL. WARNING DECALS] [INCL. QTY 10 OF REF. 3]
  • 3
    7519806 CLIP, DASH, TRIM, METAL
    CLIP, DASH, TRIM, METAL
  • 4
    2635460 ASM., GLOVE BOX [INCL. 5, 7, 8, 13]
    ASM., GLOVE BOX [INCL. 5, 7, 8, 13]
  • 5
    5439796-070 GLOVEBOX, (BLACK)
    GLOVEBOX, (BLACK)
  • 6
    7081425 LATCH, 1/4 TURN
    LATCH, 1/4 TURN
  • 7
    7512026 SCREW
    SCREW
  • 8
    7518641 SCREW
    SCREW
  • 9
    5451897-070 DOOR, GLOVEBOX, (BLACK)
    DOOR, GLOVEBOX, (BLACK)
  • 10
    5415208 SEAL, GLOVEBOX
    SEAL, GLOVEBOX
  • 11
    7519342 SCREW
    SCREW
  • 12
    7519650 SCREW
    SCREW
  • 13
    5259660 BRACKET, GLOVEBOX, LATCH
    BRACKET, GLOVEBOX, LATCH
  • 14
    5451290-070 PANEL, DOUBLE DIN., (BLACK)
    PANEL, DOUBLE DIN., (BLACK)
