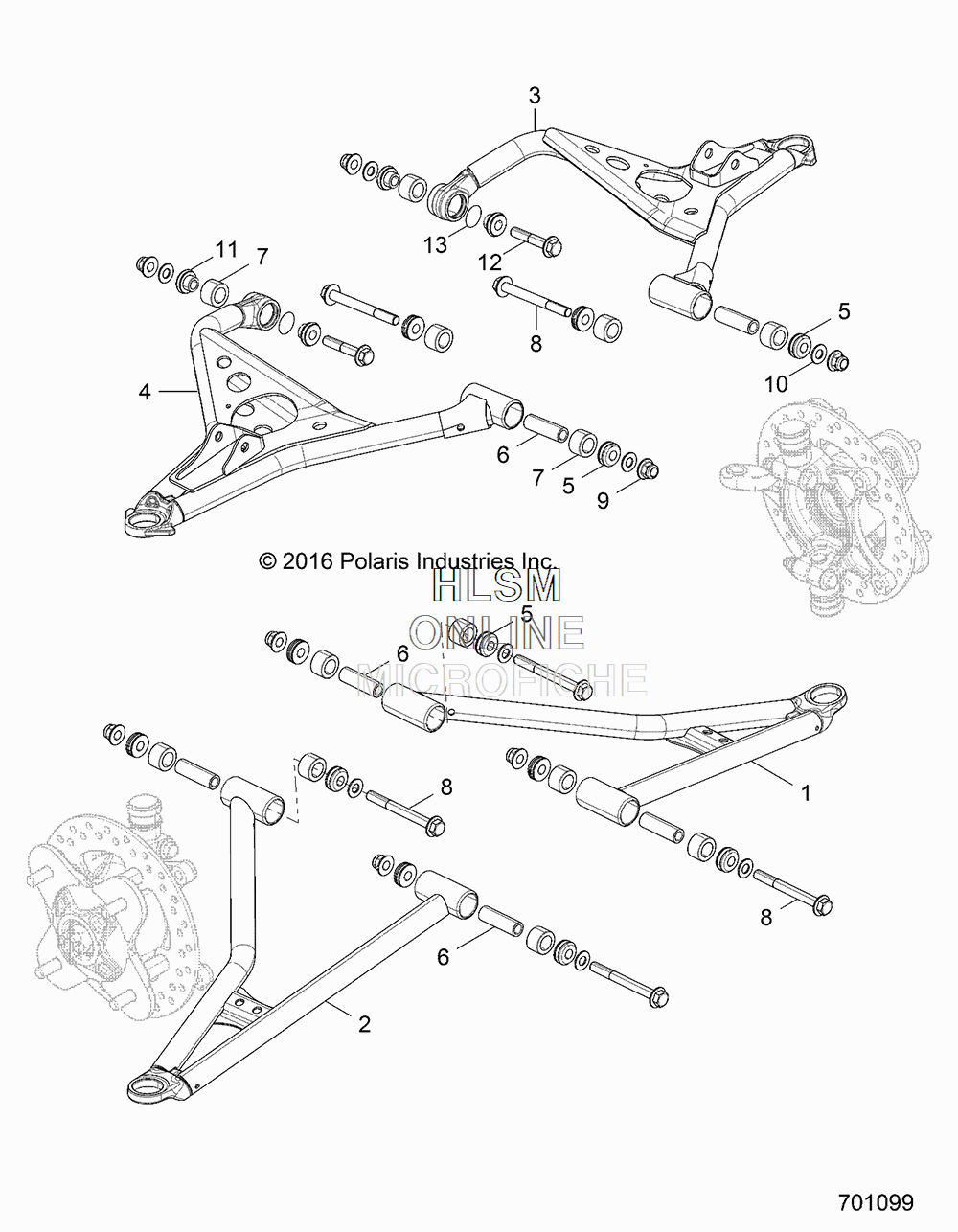

CONTROL ARMS - FRONT для Polaris RZR 900 50 INCH MD [PZ17VAE87NK] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1021404-458 WELD-CTRL ARM, LOWER, FRT, LEFT HAND, 50, BL
    WELD-CTRL ARM, LOWER, FRT, LEFT HAND, 50, BL
  • 2
    1021405-458 WELD-CTRL ARM, LOWER, FRT, RIGHT HAND, 50, BL
    WELD-CTRL ARM, LOWER, FRT, RIGHT HAND, 50, BL
  • 3
    1021406-458 WELD-CTRL ARM, UPPER, FRT, LEFT HAND, 50, BL
    WELD-CTRL ARM, UPPER, FRT, LEFT HAND, 50, BL
  • 4
    1021407-458 WELD-CTRL ARM, UPPER, FRT, RIGHT HAND, 50, BL
    WELD-CTRL ARM, UPPER, FRT, RIGHT HAND, 50, BL
  • 5
    1543611 ASM-PIVOT CAP, SEALED, M10
    ASM-PIVOT CAP, SEALED, M10
  • 6
    5139966 SHAFT-PIVOT, SHORT, M10
    SHAFT-PIVOT, SHORT, M10
  • 7
    5452233 BUSHING-STANDARD, SUSP, M10
    BUSHING-STANDARD, SUSP, M10
  • 8
    7519043 SCREW, HEX FLANGE
    SCREW, HEX FLANGE
  • 9
    7547333 NUT
    NUT
  • 10
    7556153 WASHER
    WASHER
  • 11
    1543735 ASM-PIVOT CAP, SEALED, SLIM, M10
    ASM-PIVOT CAP, SEALED, SLIM, M10
  • 12
    7519285 SCREW, HEX FLANGE
    SCREW, HEX FLANGE
  • 13
    7710845 28MM SPIRAL RING, STEEL
    28MM SPIRAL RING, STEEL
