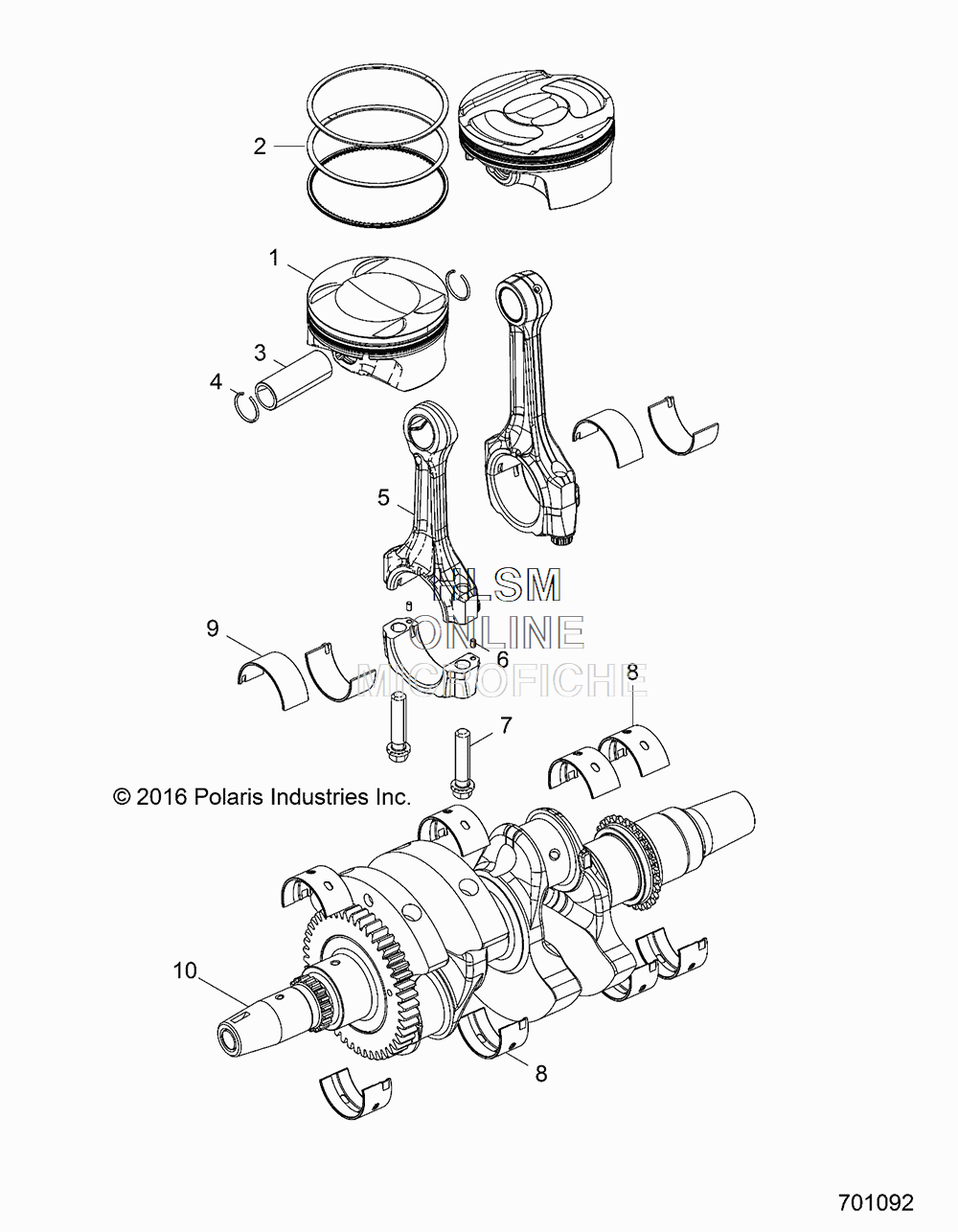

CRANKSHAFT AND PISTON для Polaris RZR 900 50 INCH MD [PZ17VAE87NK] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    2205244 KIT, PISTON [INCL. 1 PISTON, 1 PIN, 1 RING SET, 2 CLIPS]
    KIT, PISTON [INCL. 1 PISTON, 1 PIN, 1 RING SET, 2 CLIPS]
  • 2
    2205245 KIT, PISTON RINGS [INCL. 1 TOP, 1 MIDDLE AND 1 BOTTOM RING]
    KIT, PISTON RINGS [INCL. 1 TOP, 1 MIDDLE AND 1 BOTTOM RING]
  • 3
    3022358 PIN, PISTON
    PIN, PISTON
  • 4
    3022413 RING, RETAINING
    RING, RETAINING
  • 5
    3022893 ASM., CONNECTING ROD, FORGED [INCL. 6, 7]
    ASM., CONNECTING ROD, FORGED [INCL. 6, 7]
  • 6
    7661972 PIN-DOWEL-SOL-M3X5 SUJ2
    PIN-DOWEL-SOL-M3X5 SUJ2
  • 7
    7520349 SCREW, CONNECTING ROD
    SCREW, CONNECTING ROD
  • 8
    3514662-001 BEARING, MAIN, (WHITE)
    BEARING, MAIN, (WHITE)
  • 8
    3514662-002 BEARING, MAIN, (BLUE)
    BEARING, MAIN, (BLUE)
  • 8
    3514662-003 BEARING, MAIN, (GREEN)
    BEARING, MAIN, (GREEN)
  • 8
    3514662-004 BEARING, MAIN, (YELLOW)
    BEARING, MAIN, (YELLOW)
  • 8
    3514662-005 BEARING, MAIN, (RED)
    BEARING, MAIN, (RED)
  • 9
    3514663-001 BEARING, CONNECTING ROD, (WHITE)
    BEARING, CONNECTING ROD, (WHITE)
  • 9
    3514663-002 BEARING, CONNECTING ROD, (BLUE)
    BEARING, CONNECTING ROD, (BLUE)
  • 9
    3514663-003 BEARING, CONNECTING ROD, (GREEN)
    BEARING, CONNECTING ROD, (GREEN)
  • 9
    3514663-004 BEARING, CONNECTING ROD, (YELLOW)
    BEARING, CONNECTING ROD, (YELLOW)
  • 10
    3022793 ASM., CRANKSHAFT
    ASM., CRANKSHAFT
