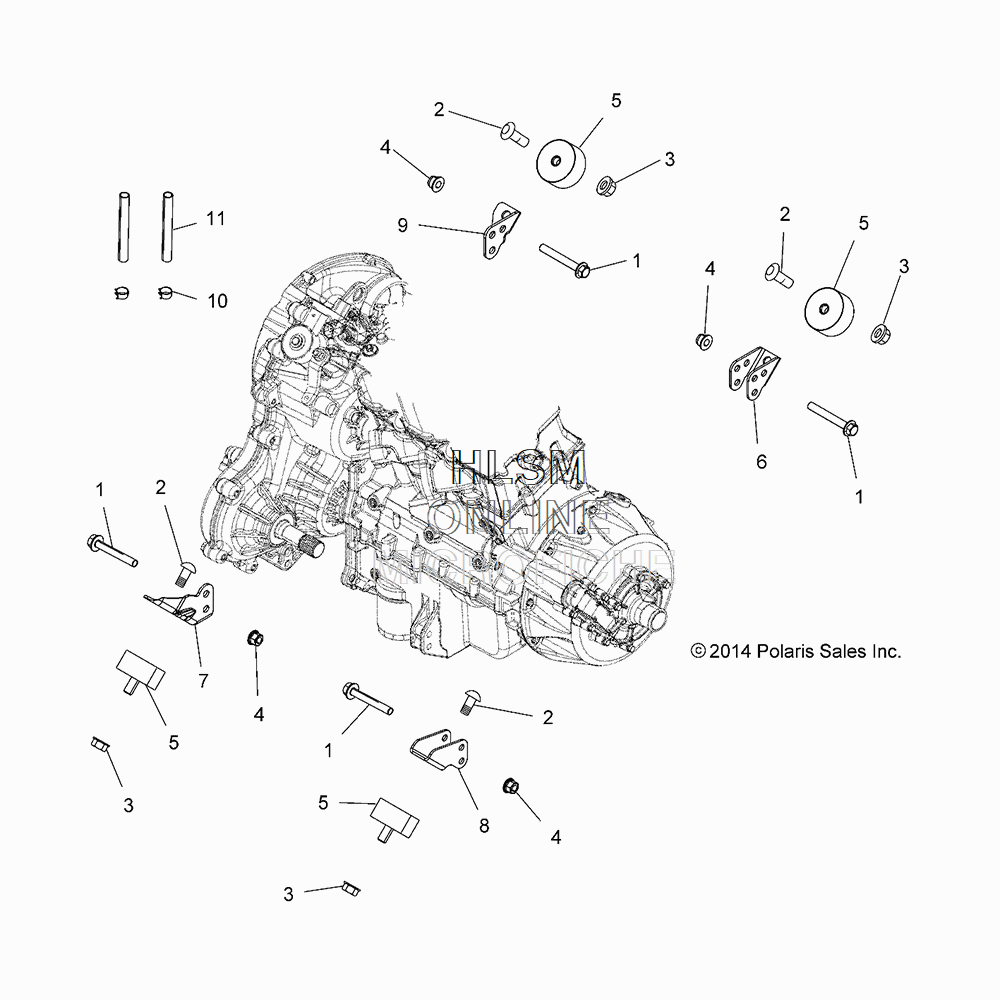

MOUNTING - ENGINE W/TRANSMISSION для Polaris SPORTSMAN® 850 SP (SUNSET RED) [A16SXE85AS] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    7516732 SCREW, FLANGE
    SCREW, FLANGE
  • 2
    7519032 SCREW
    SCREW
  • 3
    7547313 NUT, FLANGE
    NUT, FLANGE
  • 4
    7547317 NUT, FLANGE
    NUT, FLANGE
  • 5
    3022154 ISOLATOR
    ISOLATOR
  • 6
    5251716 BRACKET, TRANSMISSION MOUNT, LH
    BRACKET, TRANSMISSION MOUNT, LH
  • 7
    5252091 BRACKET, TRANSMISSION, RH
    BRACKET, TRANSMISSION, RH
  • 8
    5251717 BRACKET, ENGINE, MOUNT, RH
    BRACKET, ENGINE, MOUNT, RH
  • 9
    5253340 BRACKET, TRANSMISSION, LH
    BRACKET, TRANSMISSION, LH
  • 10
    7080307 CLAMP ((TRANSMISSION VENTING))
    CLAMP ((TRANSMISSION VENTING))
  • 11
    8450003-1525 LINE, FUEL ((TRANSMISSION VENTING))
    LINE, FUEL ((TRANSMISSION VENTING))
