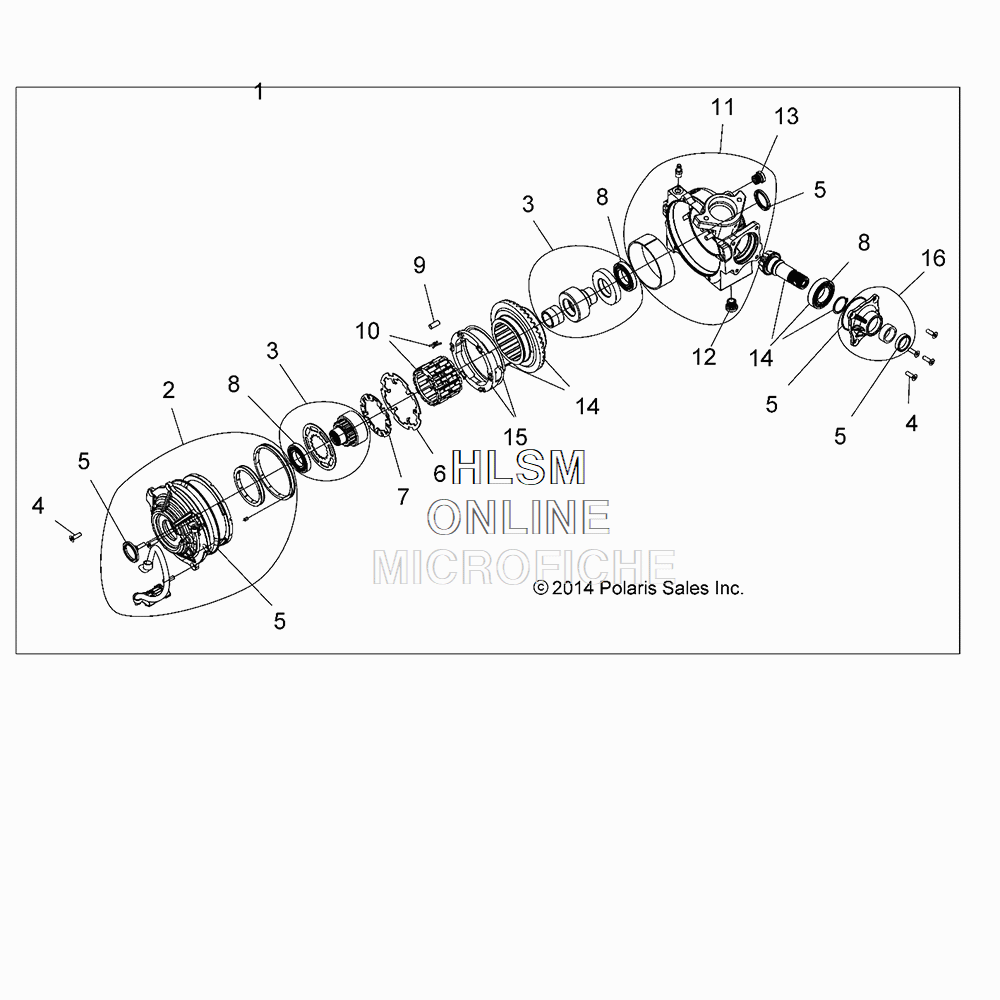

GEARCASE - INTERNAL COMPONENTS - FRONT для Polaris SPORTSMAN® 850 SP (SUNSET RED) [A16SXE85AS] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1333570 ASM-GEARCASE FR, 12 PCKT,ADC,ZN ((INCL. ALL))
    ASM-GEARCASE FR, 12 PCKT,ADC,ZN ((INCL. ALL))
  • 2
    3235521 ASM., COVER OUTPUT ((INCL. O-RING, SEAL, PIN, COVER, SPACER, COIL, CLIPS, 4WD COIL, WIRING))
    ASM., COVER OUTPUT ((INCL. O-RING, SEAL, PIN, COVER, SPACER, COIL, CLIPS, 4WD COIL, WIRING))
  • 3
    3235910 ASM., OUTPUT HUB ((INCL. BEARING, BUSHING, HUB, HUB PLATE, SPACER, HUB ASM.))
    ASM., OUTPUT HUB ((INCL. BEARING, BUSHING, HUB, HUB PLATE, SPACER, HUB ASM.))
  • 4
    3235433 KIT, FASTENERS ((INCL. 12 SCREWS))
    KIT, FASTENERS ((INCL. 12 SCREWS))
  • 5
    3235434 KIT, SEAL REPAIR ((INCL. ALL SEALS AND O-RINGS))
    KIT, SEAL REPAIR ((INCL. ALL SEALS AND O-RINGS))
  • 6
    3235485 PLATE, 4WD, ARMATURE
    PLATE, 4WD, ARMATURE
  • 7
    3235626 PLATE, ARMATURE BD
    PLATE, ARMATURE BD
  • 8
    3235435 BEARINGS ((INCL. ALL BALL BEARINGS))
    BEARINGS ((INCL. ALL BALL BEARINGS))
  • 9
    3235624 CAGE ROLLERS ((INCL. SET OF 24 ROLLERS))
    CAGE ROLLERS ((INCL. SET OF 24 ROLLERS))
  • 10
    3235625 ASM., ROLL CAGE ((INCL. CAGE, 24 CLIPS))
    ASM., ROLL CAGE ((INCL. CAGE, 24 CLIPS))
  • 11
    3235436 ASM., GEARCASE ((INCL. CASE, BUSHING, PLUGS, SEAL, VENT))
    ASM., GEARCASE ((INCL. CASE, BUSHING, PLUGS, SEAL, VENT))
  • 12
    2203738 DRAIN PLUG
    DRAIN PLUG
  • 13
    2203739 PLUG, FILL
    PLUG, FILL
  • 14
    3235636 ASM., GEAR HOUSING AND PINION GEAR ((INCL. BEARING, SNAP RING, PIN, PINION, RING GEAR))
    ASM., GEAR HOUSING AND PINION GEAR ((INCL. BEARING, SNAP RING, PIN, PINION, RING GEAR))
  • 15
    3235712 SPRING, TORSION, RETAINER
    SPRING, TORSION, RETAINER
  • 16
    3235843 ASM., COVER INPUT ((INCL. COVER, SEAL, O-RING, BEARING))
    ASM., COVER INPUT ((INCL. COVER, SEAL, O-RING, BEARING))
