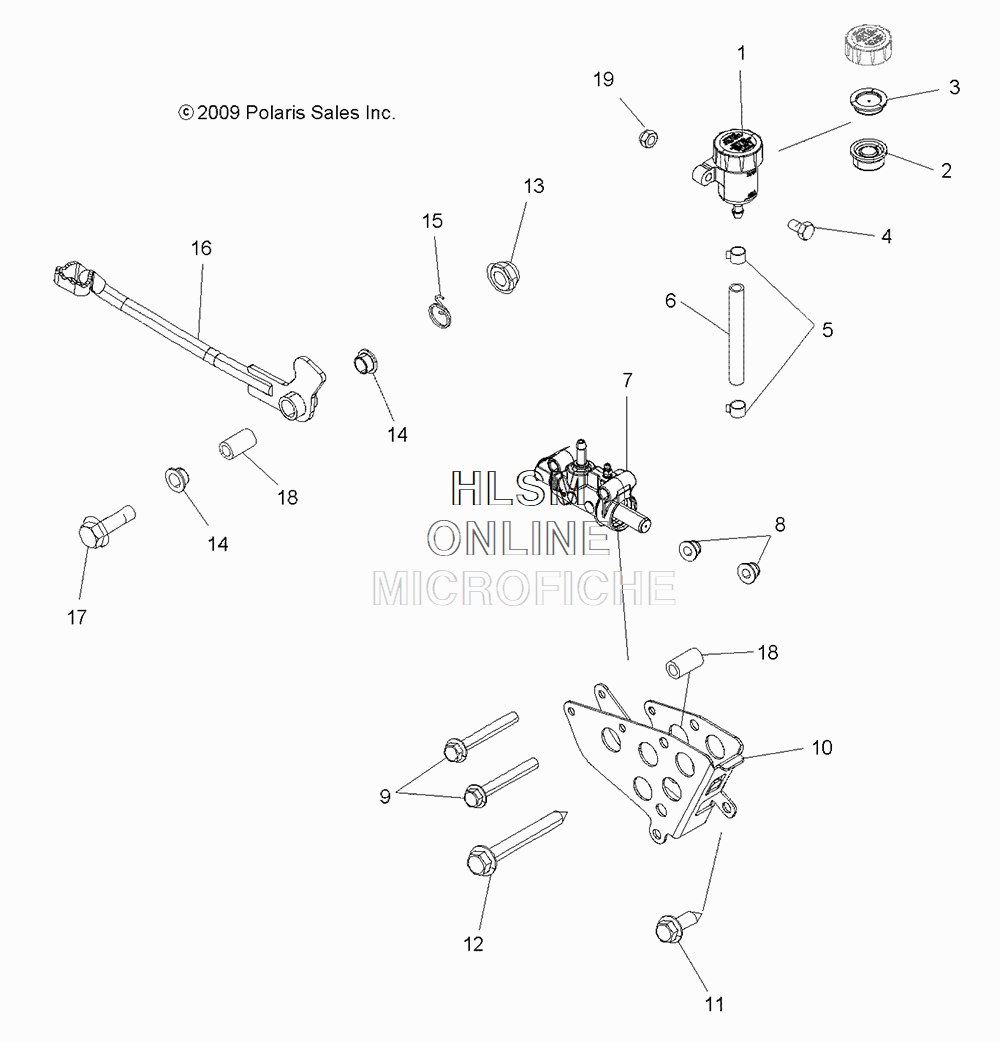

BRAKE - PEDAL W/MASTER CYLINDER для Polaris SPORTSMAN® 850 SP (SUNSET RED) [A16SXE85AS] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1911224 ASM., RESERVOIR, BRAKE, REAR ((INCL. 2,3, CAP))
    ASM., RESERVOIR, BRAKE, REAR ((INCL. 2,3, CAP))
  • 2
    5413262 DIAPHRAGM, BRAKE RESERVOIR
    DIAPHRAGM, BRAKE RESERVOIR
  • 3
    5437041 RING, BRAKE RESERVOIR
    RING, BRAKE RESERVOIR
  • 4
    7518533 BOLT, FLANGE, BLACK
    BOLT, FLANGE, BLACK
  • 5
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    1911267-826 HOSE, RESERVOIR, BRAKE
    HOSE, RESERVOIR, BRAKE
  • 7
    1911123 ASM., MASTER CYLINDER
    ASM., MASTER CYLINDER
  • 8
    7547274 NUT, NYLOK, FLANGE
    NUT, NYLOK, FLANGE
  • 9
    7517950 SCREW
    SCREW
  • 10
    5251561 BRACKET, MOUNT, BRAKE
    BRACKET, MOUNT, BRAKE
  • 11
    7518555 BOLT, FLANGE
    BOLT, FLANGE
  • 12
    7518677 BOLT
    BOLT
  • 13
    7547333 NUT, FLANGE
    NUT, FLANGE
  • 14
    5433189 BUSHING, PIVOT, PEDAL
    BUSHING, PIVOT, PEDAL
  • 15
    7041750 SPRING, TORSION, BRAKE
    SPRING, TORSION, BRAKE
  • 16
    1911207-067 LEVER, BRAKE, M. BLACK
    LEVER, BRAKE, M. BLACK
  • 17
    7518559 BOLT
    BOLT
  • 18
    5135720 SPACER
    SPACER
  • 19
    7546703 NUT, NYLOK
    NUT, NYLOK
