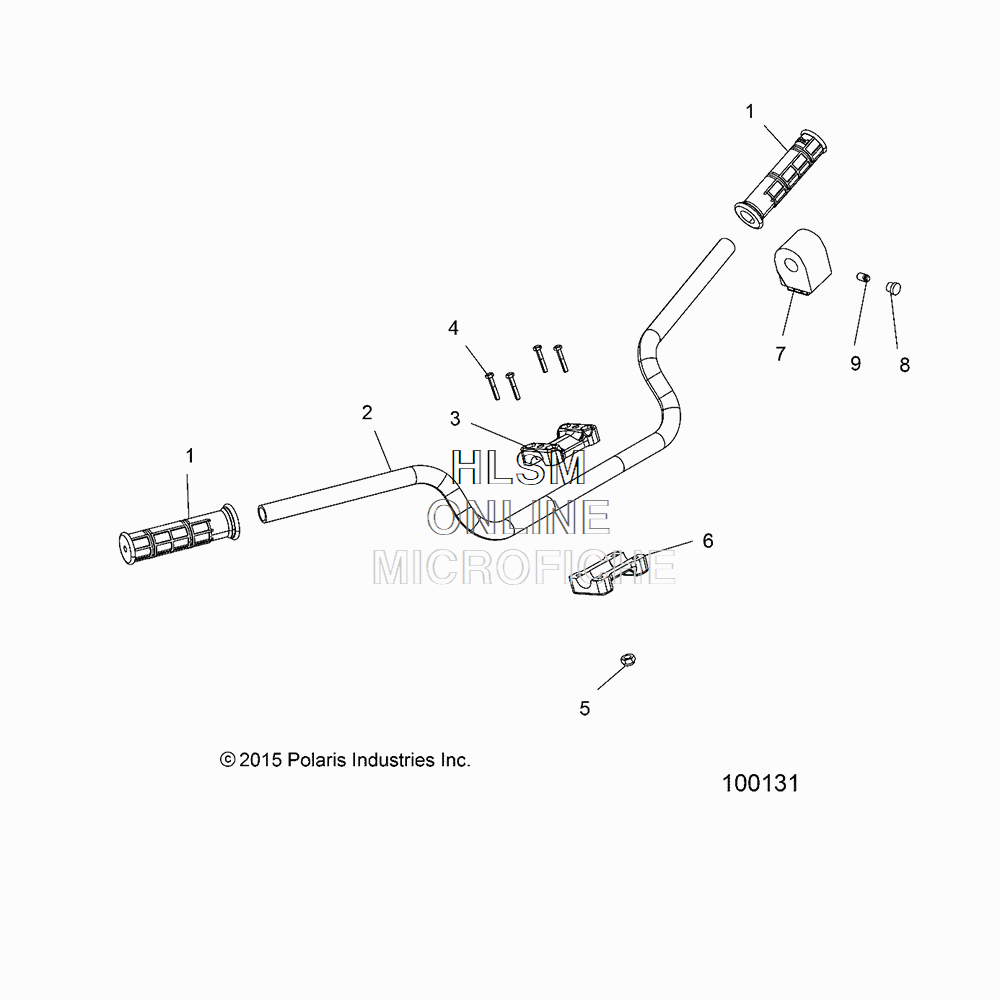

HANDLEBAR - CONTROL ASSY. для Polaris SPORTSMAN® 850 HIGH LIFTER EDITION (ORANGE MADNESS) [A16SXN85A3] - 2016 года выпуска
-
№АртикулНазвание
-
15413578-070 GRIP, HANDLEBAR, BLACKGRIP, HANDLEBAR, BLACK
-
25337079-458 TUBE, HANDLEBAR, M. BLACKTUBE, HANDLEBAR, M. BLACK
-
35631972 BLOCK, HANDLEBAR, PEGGEDBLOCK, HANDLEBAR, PEGGED
-
47515189 SCREWSCREW
-
57542122 NUT, NYLOKNUT, NYLOK
-
65631973 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
74011655 SWITCH-HANDLEBAR,LH,ON/OFF,SPDSWITCH-HANDLEBAR,LH,ON/OFF,SPD
-
85432952 PLUG, HOLEPLUG, HOLE
-
97517625 SCREW, SETSCREW, SET
