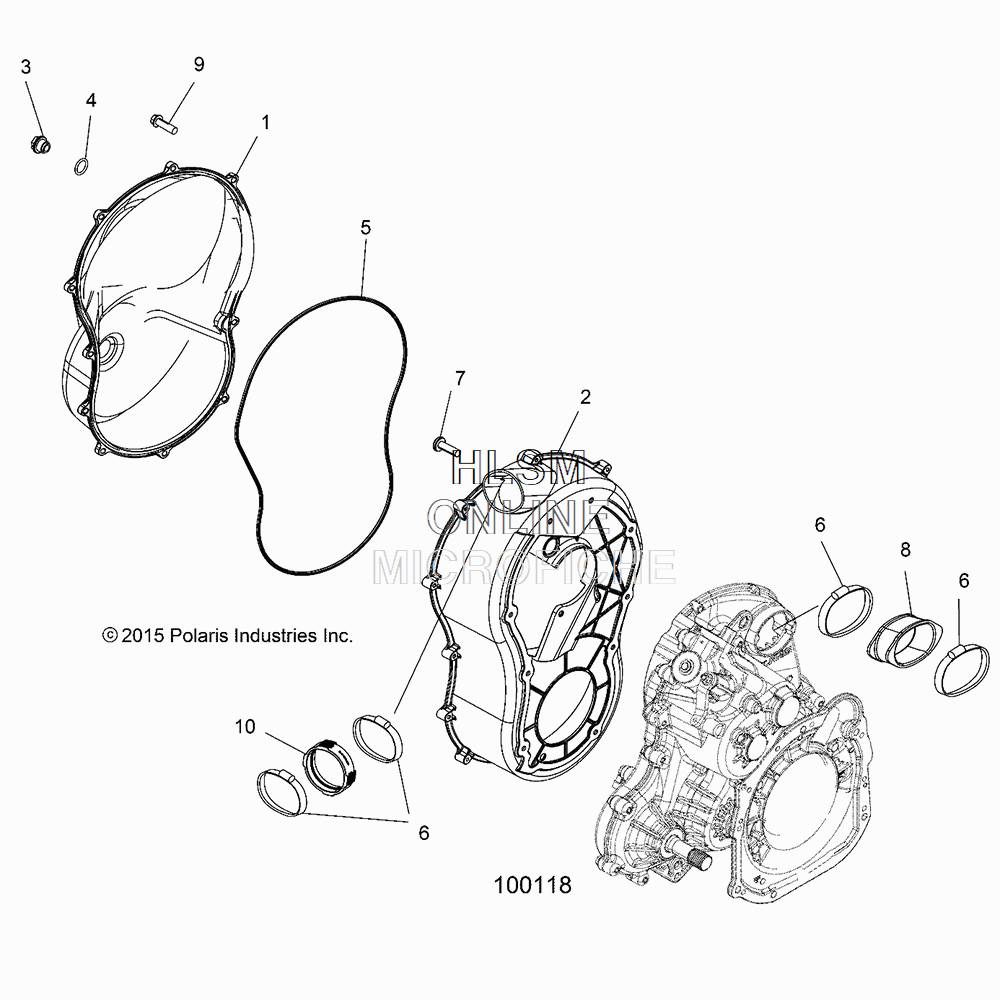

CLUTCH COVER W/ BOOTS для Polaris SPORTSMAN® 850 HIGH LIFTER EDITION (ORANGE MADNESS) [A16SXN85A3] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2633919 ASM., COVER, OUTER ((INCL. OUTER COVER,3,4))
    ASM., COVER, OUTER ((INCL. OUTER COVER,3,4))
  • 2
    5438127 COVER, CLUTCH INNER
    COVER, CLUTCH INNER
  • 3
    5434264 PLUG, DRAIN
    PLUG, DRAIN
  • 4
    5410542 O-RING
    O-RING
  • 5
    5521802 SEAL, COVER, CLUTCH
    SEAL, COVER, CLUTCH
  • 6
    7081279 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 7
    7518914 SCREW
    SCREW
  • 8
    5413177 BOOT, CLUTCH, INLET
    BOOT, CLUTCH, INLET
  • 9
    7519849 SCREW
    SCREW
  • 10
    5415255 BOOT, OUTLET, DUCT
    BOOT, OUTLET, DUCT
