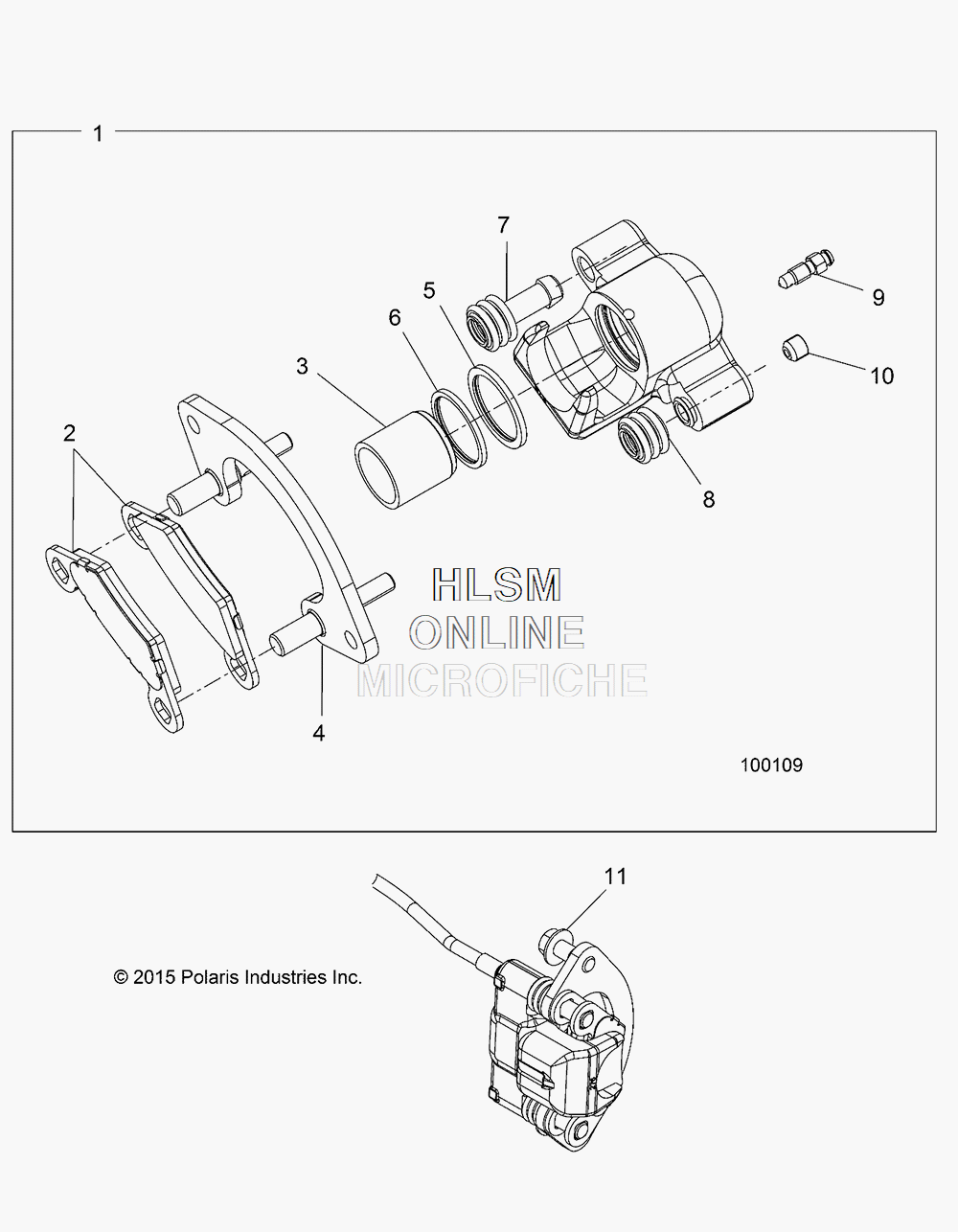

BRAKE - REAR CALIPER для Polaris SPORTSMAN® 850 HIGH LIFTER EDITION (ORANGE MADNESS) [A16SXN85A3] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1912366 ASM-CLPR,BRK,1.25,RL,257A ((INCL.1-10))
    ASM-CLPR,BRK,1.25,RL,257A ((INCL.1-10))
  • 1
    1912367 ASM-CLPR,BRK,1.25,RR,257A
    ASM-CLPR,BRK,1.25,RR,257A
  • 2
    2205606 KIT, BRAKE PAD, HIGH PERF. ((INCL. 2 PADS))
    KIT, BRAKE PAD, HIGH PERF. ((INCL. 2 PADS))
  • 3
    5132405 PISTON-CALIPER,1.25
    PISTON-CALIPER,1.25
  • 4
    1911225 ASM., CALIPER MOUNT
    ASM., CALIPER MOUNT
  • 5
    5411596 SEAL-CALIPER,INNER,1.25''
    SEAL-CALIPER,INNER,1.25''
  • 6
    5411597 SEAL-CALIPER,OUTER,1.25''
    SEAL-CALIPER,OUTER,1.25''
  • 7
    5412505 BOOT, PIN BUSHING
    BOOT, PIN BUSHING
  • 8
    5412506 BOOT, PIN SEAL
    BOOT, PIN SEAL
  • 9
    7081343 SCREW, BLEEDER
    SCREW, BLEEDER
  • 10
    7518863 SCREW, SOCKET SET
    SCREW, SOCKET SET
  • 11
    7518760 BOLT, FLANGE ((CALIPER MOUNTING))
    BOLT, FLANGE ((CALIPER MOUNTING))
