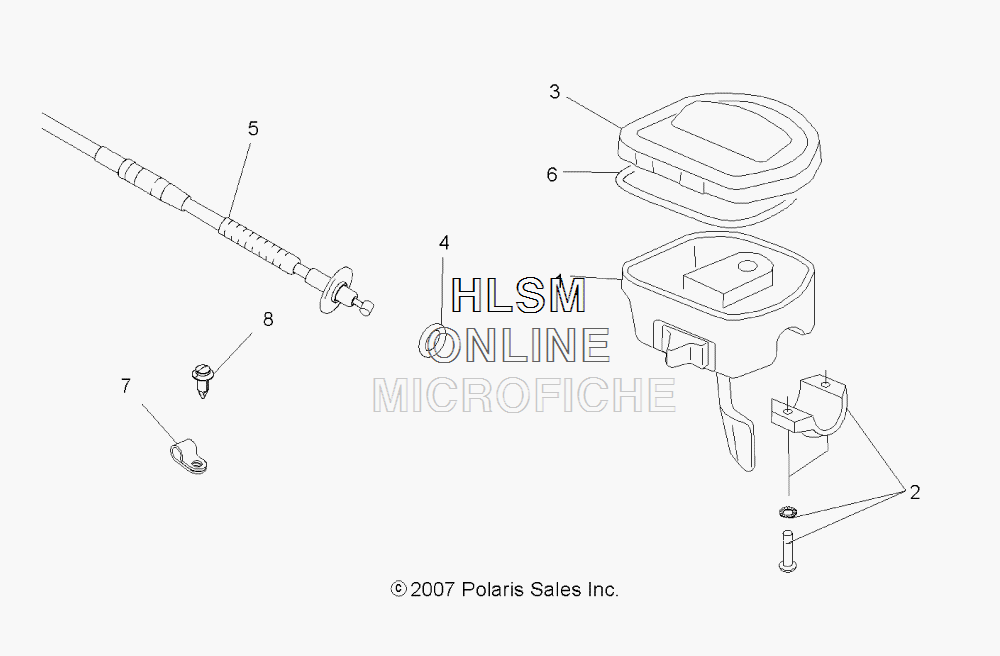

CONTROLS- THROTTLE ASSY/CABLE для Polaris SPORTSMAN FOREST 800 - SAGEBRUSH GREEN METALLIC [A13MH76FF] - 2013 года выпуска`
-
№АртикулНазвание
-
12010336 ASM., THROTTLE CONTROL, AWD (INCL. 2)ASM., THROTTLE CONTROL, AWD (INCL. 2)
-
22010191 ASM., THROTTLE CLAMP (INCL. CLAMP, SCREW, WASHER)ASM., THROTTLE CLAMP (INCL. CLAMP, SCREW, WASHER)
-
35434113 COVER, THROTTLE CONTROLCOVER, THROTTLE CONTROL
-
45410193 O-RINGO-RING
-
57081220 CABLE, THROTTLE (INCL. 4)CABLE, THROTTLE (INCL. 4)
-
65411439 O-RINGO-RING
-
77080367 CLAMPCLAMP
-
87661855 RIVETRIVET
