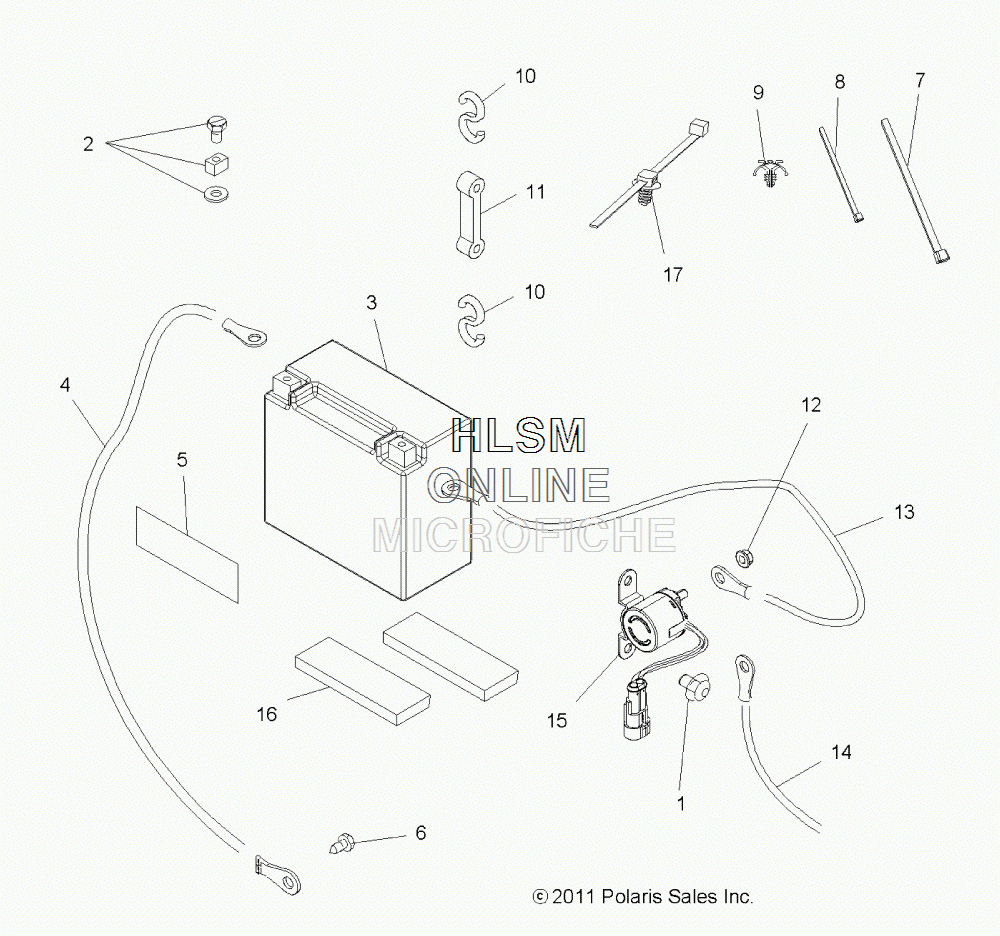

BATTERY для Polaris SPORTSMAN FOREST 800 - SAGEBRUSH GREEN METALLIC [A13MH76FF] - 2013 года выпуска
-
№АртикулНазвание
-
17512084 SCREWSCREW
-
22201357 KIT, BATTERY BOLTKIT, BATTERY BOLT
-
34011496 BATTERYBATTERY
-
44010664 CABLE, ENGINE/GROUND (BLACK)CABLE, ENGINE/GROUND (BLACK)
-
55810290 PAD, BATTERYPAD, BATTERY
-
67515179 SCREWSCREW
-
77080492 CABLE TIECABLE TIE
-
87080138 CABLE TIECABLE TIE
-
97080965 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
107010032 HOOK, BATTERY STRAPHOOK, BATTERY STRAP
-
115412499 STRAP, BATTERY HOLDDOWNSTRAP, BATTERY HOLDDOWN
-
127547270 NUT, HEX, FLANGENUT, HEX, FLANGE
-
134010955 CABLE, 13 INCH, BATTERY/SOLENOID (RED)CABLE, 13 INCH, BATTERY/SOLENOID (RED)
-
144010093 CABLE, 21 INCH, SOLENOID/STARTER (RED)CABLE, 21 INCH, SOLENOID/STARTER (RED)
-
154012001 SOLENOID, STARTERSOLENOID, STARTER
-
165810455 PAD, RACK MOUNTPAD, RACK MOUNT
-
177081496 CLIP, ROUTINGCLIP, ROUTING
