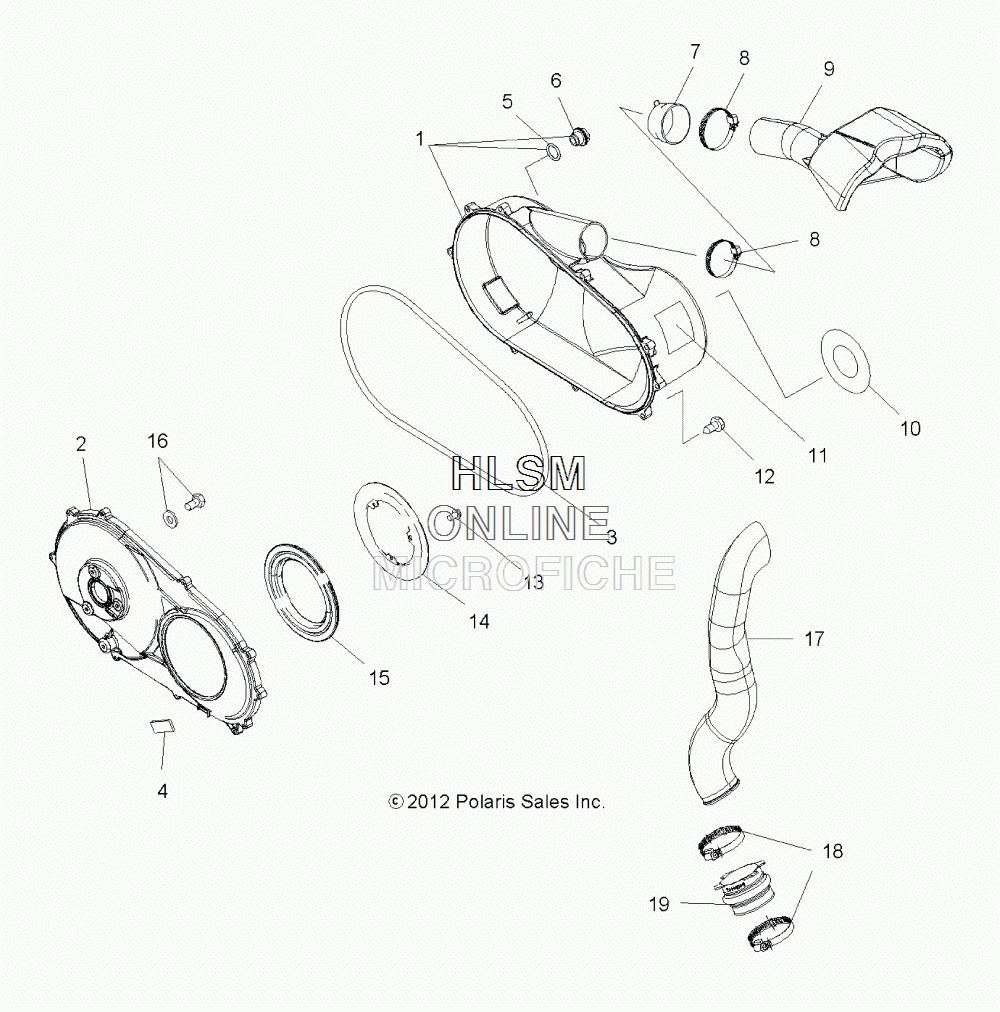

CLUTCH COVER W/DUCTING для Polaris SPORTSMAN FOREST 800 - SAGEBRUSH GREEN METALLIC [A13MH76FF] - 2013 года выпуска
-
№АртикулНазвание
-
12633926 ASM., CLUTCH COVER, OUTER (INCL. OUTER COVER,5,6)ASM., CLUTCH COVER, OUTER (INCL. OUTER COVER,5,6)
-
22633081 ASM., INNER CLUTCH COVER (INCL. 3,15)ASM., INNER CLUTCH COVER (INCL. 3,15)
-
35521738 SEAL, COVER, CLUTCH, OUTERSEAL, COVER, CLUTCH, OUTER
-
45412675 STOPPER, CLUTCH COVER, INNERSTOPPER, CLUTCH COVER, INNER
-
55410542 O-RINGO-RING
-
65434264 PLUG, DRAINPLUG, DRAIN
-
75412636 BOOT, DUCTBOOT, DUCT
-
87081279 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
95438818 DUCT, CLUTCH, OUTLETDUCT, CLUTCH, OUTLET
-
107172746 DECAL, AUTOMATIC TRANSMISSIONDECAL, AUTOMATIC TRANSMISSION
-
117172563 DECAL, WARNING, CLUTCH COVERDECAL, WARNING, CLUTCH COVER
-
127512094 SCREWSCREW
-
137517867 SCREWSCREW
-
145244527 BRACKET, RETAINER, SEAL, PLATEDBRACKET, RETAINER, SEAL, PLATED
-
155412635 SEAL, COVER, CLUTCH, INNERSEAL, COVER, CLUTCH, INNER
-
167517599 ASM., BOLT/WASHERASM., BOLT/WASHER
-
175439724 DUCT, CLUTCH AIR INLETDUCT, CLUTCH AIR INLET
-
187080451 CLAMP, HOSECLAMP, HOSE
-
195414021 BOOT, CLUTCH INTAKEBOOT, CLUTCH INTAKE
