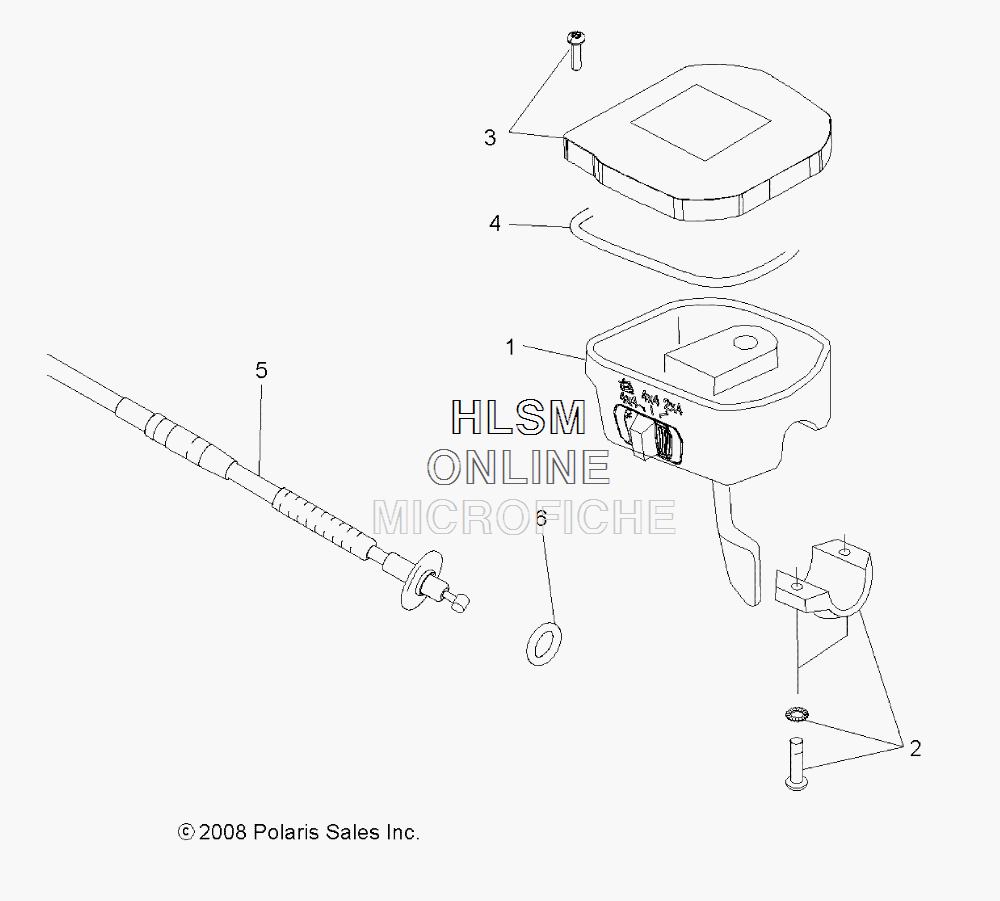

THROTTLE ASSEMBLY для Polaris SPORTSMAN XP TOURING EPS 550 INTL [A12DN5EFR] - 2012 года выпуска
-
№АртикулНазвание
-
12010359 ASM., RIGHT HANDC, 3 POSITION (INCL. 2)ASM., RIGHT HANDC, 3 POSITION (INCL. 2)
-
22010191 ASM., THROTTLE CLAMP (INCL. CLAMP, WASHERS, SCREWS)ASM., THROTTLE CLAMP (INCL. CLAMP, WASHERS, SCREWS)
-
35438268 COVER, CONTROL, RIGHT HAND (INCL. SCREWS)COVER, CONTROL, RIGHT HAND (INCL. SCREWS)
-
45413268 SEAL, THROTTLE CONTROLSEAL, THROTTLE CONTROL
-
57081576 CABLE, THROTTLECABLE, THROTTLE
-
65410193 O-RINGO-RING
