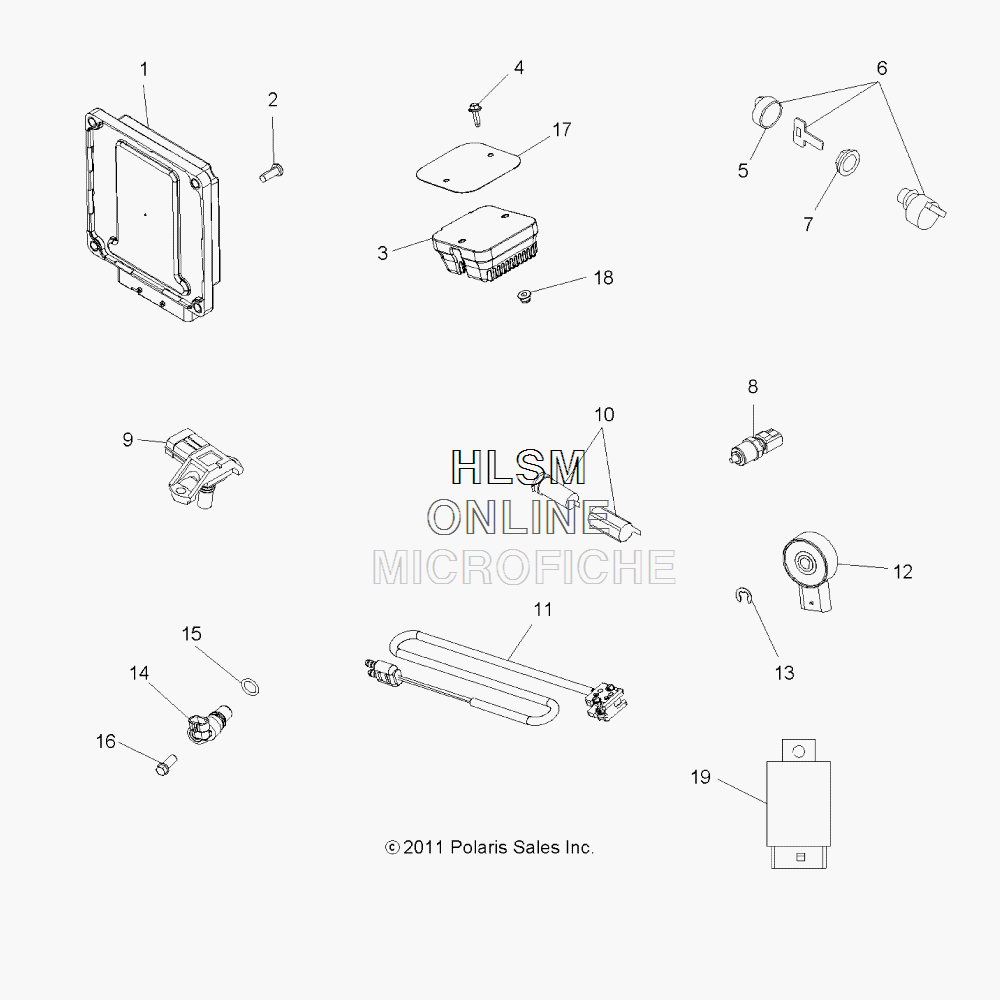

ELECTRICAL COMPONENTS для Polaris SPORTSMAN XP TOURING EPS 550 INTL [A12DN5EFR] - 2012 года выпуска
-
№АртикулНазвание
-
14012561 MODULE, ENGINE CONTROLMODULE, ENGINE CONTROL
-
27512098 SCREWSCREW
-
34012678 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
47519202 SCREWSCREW
-
55433534 COVER, KEYCOVER, KEY
-
64012166 SWITCH, KEY, 4 POSITIONSWITCH, KEY, 4 POSITION
-
75433733 NUT, IGNITIONNUT, IGNITION
-
83089892 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
93090141 SENSOR, T-MAPSENSOR, T-MAP
-
104010638 RECEPTACLE, POD, 12 VRECEPTACLE, POD, 12 V
-
112202794 KIT, BRAKE LIGHT SWITCH (BRAKE LIGHTS)KIT, BRAKE LIGHT SWITCH (BRAKE LIGHTS)
-
123233835 SWITCH (GEAR POSITION)SWITCH (GEAR POSITION)
-
133233834 RING, RETAININGRING, RETAINING
-
144012167 SENSOR, SPEED (ATV SPEED)SENSOR, SPEED (ATV SPEED)
-
147670116 CLIP, ROUTING, HINGED (FOR USE W/SPEED SENSOR)CLIP, ROUTING, HINGED (FOR USE W/SPEED SENSOR)
-
153234302 O-RINGO-RING
-
163234329 SCREWSCREW
-
175253294 COVER, VOLTAGE REGULATORCOVER, VOLTAGE REGULATOR
-
187547274 NUT, FLANGENUT, FLANGE
-
194013043 MODULE, FLASHER, LEDMODULE, FLASHER, LED
