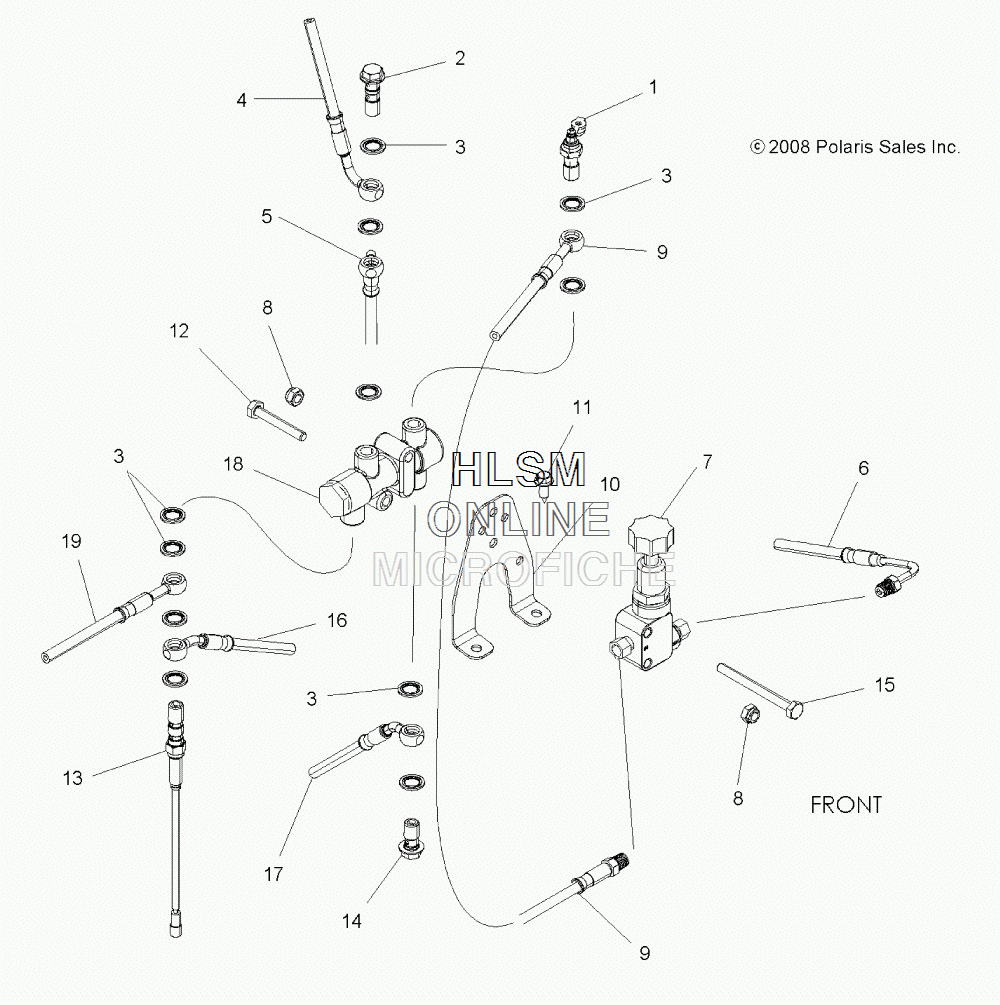

BRAKE - VALVE SYSTEM для Polaris SPORTSMAN XP TOURING EPS 550 INTL [A12DN5EFR] - 2012 года выпуска
-
№АртикулНазвание
-
11911112 BOLT, BANJO W/BLEEDERBOLT, BANJO W/BLEEDER
-
21911194 BOLT, BANJO, DOUBLEBOLT, BANJO, DOUBLE
-
35413212 SEALSEAL
-
41911452 LINE, HAND TO DIST.LINE, HAND TO DIST.
-
51911659 LINE, BRAKE, REAR, AUX.LINE, BRAKE, REAR, AUX.
-
61911660 LINE, BRAKE, REAR, SERVICELINE, BRAKE, REAR, SERVICE
-
71911109 VALVE, REDUCINGVALVE, REDUCING
-
87542122 NUT, NYLOKNUT, NYLOK
-
91911200 LINE, J/B TO P/VALVELINE, J/B TO P/VALVE
-
105252667 BRACKET, JUNCTION BLOCKBRACKET, JUNCTION BLOCK
-
117518513 BOLTBOLT
-
127512130 SCREWSCREW
-
134012484 SWITCH, DOUBLE BANJOSWITCH, DOUBLE BANJO
-
141910958 BOLT, BANJOBOLT, BANJO
-
157517451 SCREWSCREW
-
161911454 LINE, FRONT, LEFTLINE, FRONT, LEFT
-
171911453 LINE, FOOT TO DIST.LINE, FOOT TO DIST.
-
181911185 BLOCK, DISTRIBUTIONBLOCK, DISTRIBUTION
-
191911455 LINE, FRONT, RIGHTLINE, FRONT, RIGHT
