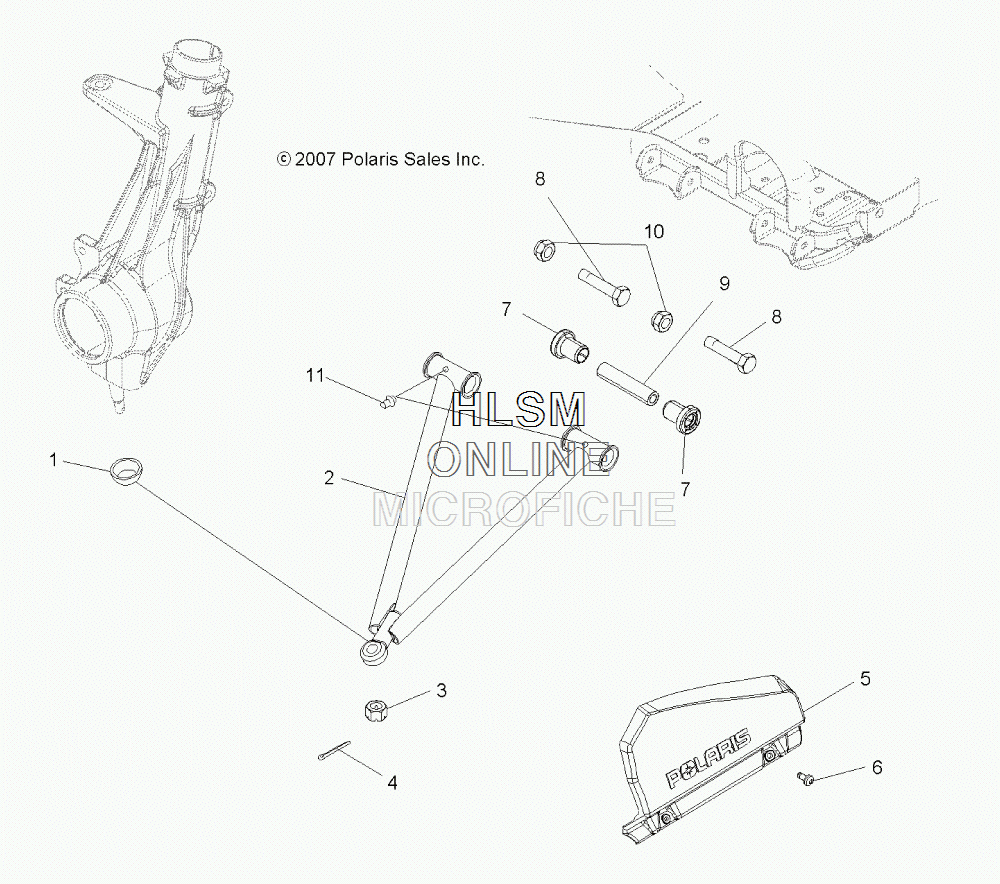

SUSPENSION - A-ARM/STRUT - MOUNTING для Polaris SPORTSMAN TOURING 500 HO - SAGE BRUSH GREEN METALLIC [A12DH50AX] - 2012 года выпуска
-
№АртикулНазвание
-
15412658 BOOT, RUBBER, GREASELESSBOOT, RUBBER, GREASELESS
-
21542397-067 A-FRAME, LEFT HAND, BLACKA-FRAME, LEFT HAND, BLACK
-
21542398-067 A-FRAME, RIGHT HAND, BLACKA-FRAME, RIGHT HAND, BLACK
-
37542438 NUT, CASTLENUT, CASTLE
-
47661203 PIN, COTTERPIN, COTTER
-
55436999-070 SHIELD, CV JOINT, LEFT HANDSHIELD, CV JOINT, LEFT HAND
-
55437000-070 SHIELD, CV JOINT, RIGHT HANDSHIELD, CV JOINT, RIGHT HAND
-
67512084 SCREWSCREW
-
75436832 BUSHINGBUSHING
-
87515472 SCREWSCREW
-
95134882 SHAFT, A-ARMSHAFT, A-ARM
-
107542439 NUT, NYLOKNUT, NYLOK
-
117080433 FITTING, LUBRICATIONFITTING, LUBRICATION
