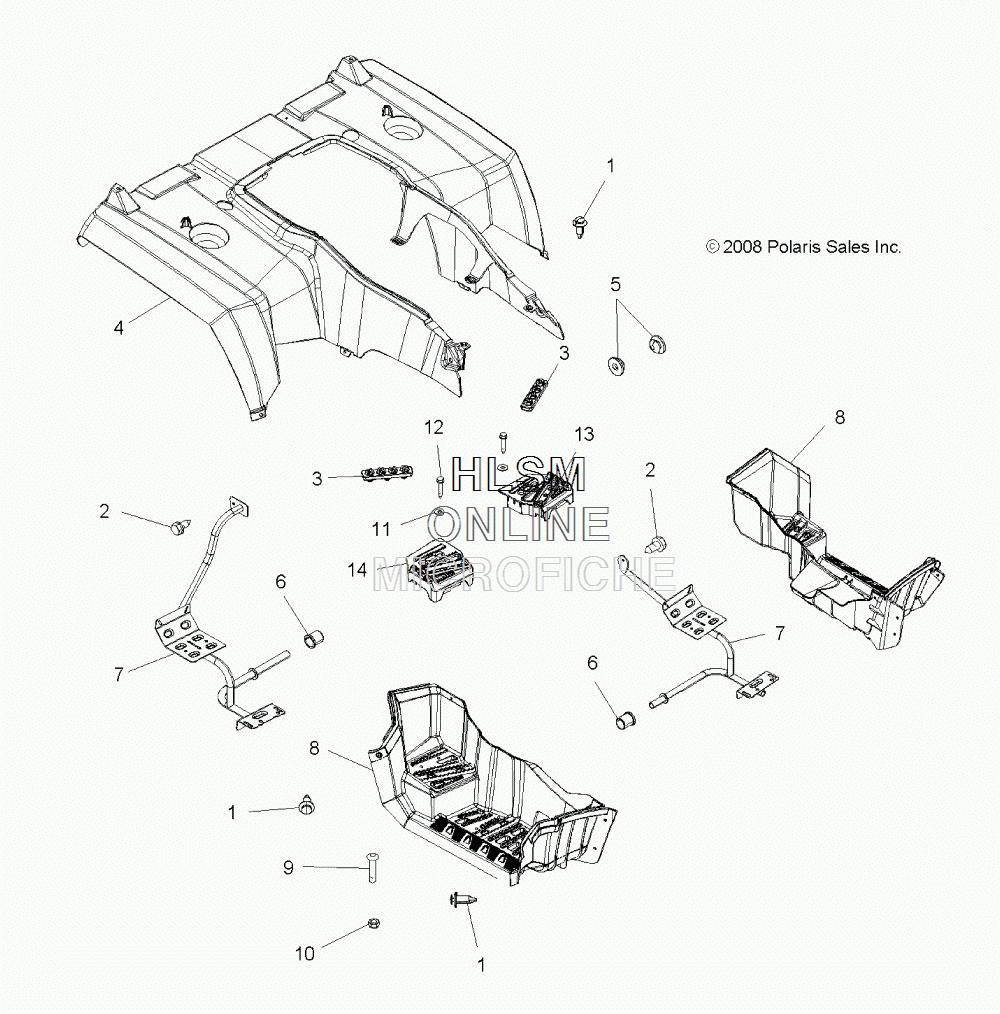

CAB - REAR W/FOOTWELLS для Polaris SPORTSMAN TOURING 500 HO - SAGE BRUSH GREEN METALLIC [A12DH50AX] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    7661855 RIVET
    RIVET
  • 2
    7512232 SCREW
    SCREW
  • 3
    5413165 PAD, FOOTWELL, SHORT
    PAD, FOOTWELL, SHORT
  • 4
    5437092-498 CAB, REAR, SAGE BRUSH GREEN (AX)
    CAB, REAR, SAGE BRUSH GREEN (AX)
  • 5
    5412623 GROMMET, RUBBER, MOUNT
    GROMMET, RUBBER, MOUNT
  • 6
    5433369 BUSHING
    BUSHING
  • 7
    1016606-329 FOOTWELL, PASSENGER, BLACK, LEFT HAND
    FOOTWELL, PASSENGER, BLACK, LEFT HAND
  • 7
    1016239-329 FOOTWELL, PASSENGER, BLACK, RIGHT HAND
    FOOTWELL, PASSENGER, BLACK, RIGHT HAND
  • 8
    5436134-070 FOOTWELL, BLACK, LEFT HAND
    FOOTWELL, BLACK, LEFT HAND
  • 8
    5436135-070 FOOTWELL, BLACK, RIGHT HAND
    FOOTWELL, BLACK, RIGHT HAND
  • 9
    7517230 SCREW
    SCREW
  • 10
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 11
    7555798 WASHER, NYLON
    WASHER, NYLON
  • 12
    7512095 SCREW
    SCREW
  • 13
    5437167-070 RISER, PASSENGER, LEFT HAND
    RISER, PASSENGER, LEFT HAND
  • 14
    5437168-070 RISER, PASSENGER, RIGHT HAND
    RISER, PASSENGER, RIGHT HAND
