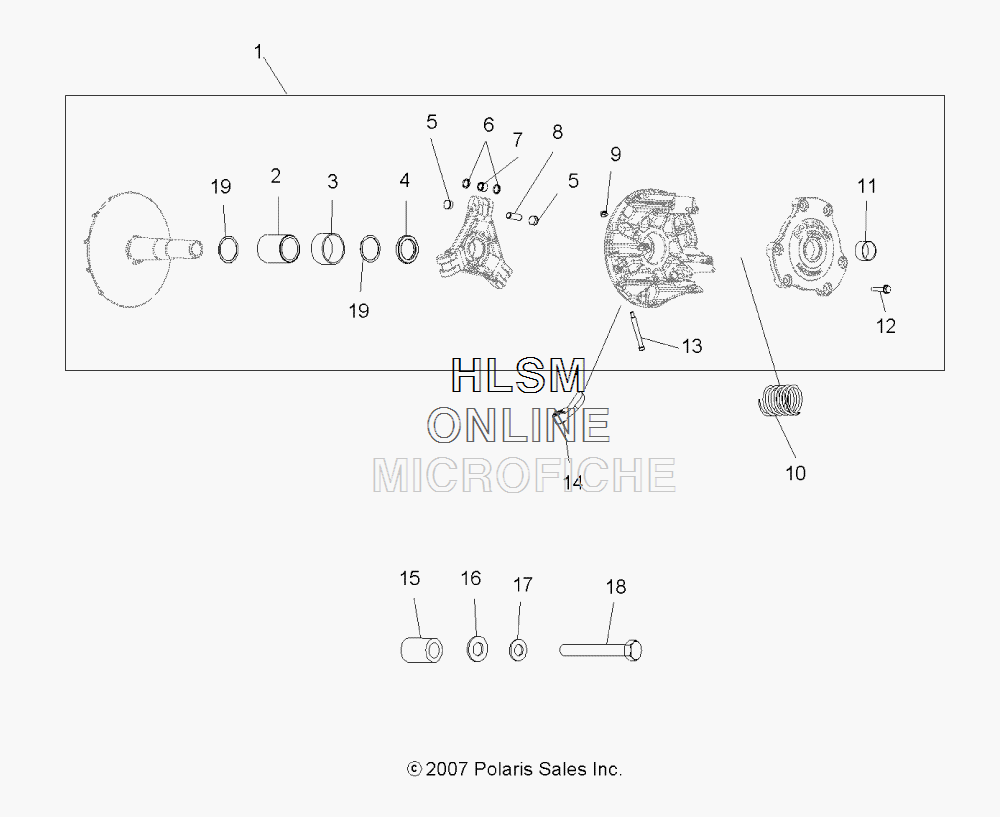

CLUTCH - PRIMARY для Polaris SPORTSMAN TOURING 500 HO - SAGE BRUSH GREEN METALLIC [A12DH50AX] - 2012 года выпуска
-
№АртикулНазвание
-
11322673 ASM., DRIVE CLUTCH (INCL. 1-9,11-13,19)ASM., DRIVE CLUTCH (INCL. 1-9,11-13,19)
-
21520836 ASM., CLUTCHASM., CLUTCH
-
33514492 BEARINGBEARING
-
45631903 SPACER, CLUTCHSPACER, CLUTCH
-
55431936 BUTTON, CLUTCHBUTTON, CLUTCH
-
65438247 WASHER, CLUTCH, SPIDER ROLLERWASHER, CLUTCH, SPIDER ROLLER
-
71321622 ASM., ROLLER AND BUSHINGASM., ROLLER AND BUSHING
-
85020422 PIN, ROLLERPIN, ROLLER
-
97541906 NUT, FLEXLOCNUT, FLEXLOC
-
107041157 SPRING, CLUTCHSPRING, CLUTCH
-
113576510 BEARING, COVERBEARING, COVER
-
127518062 SCREWSCREW
-
137512266 BOLT, SHOULDERBOLT, SHOULDER
-
145632283 WEIGHT, SHIFT, 10-WHFWEIGHT, SHIFT, 10-WHF
-
155430261 BUSHINGBUSHING
-
165210748 WASHERWASHER
-
177575202 WASHER, LOCKWASHER, LOCK
-
187512566 BOLTBOLT
-
197556335 WASHERWASHER
