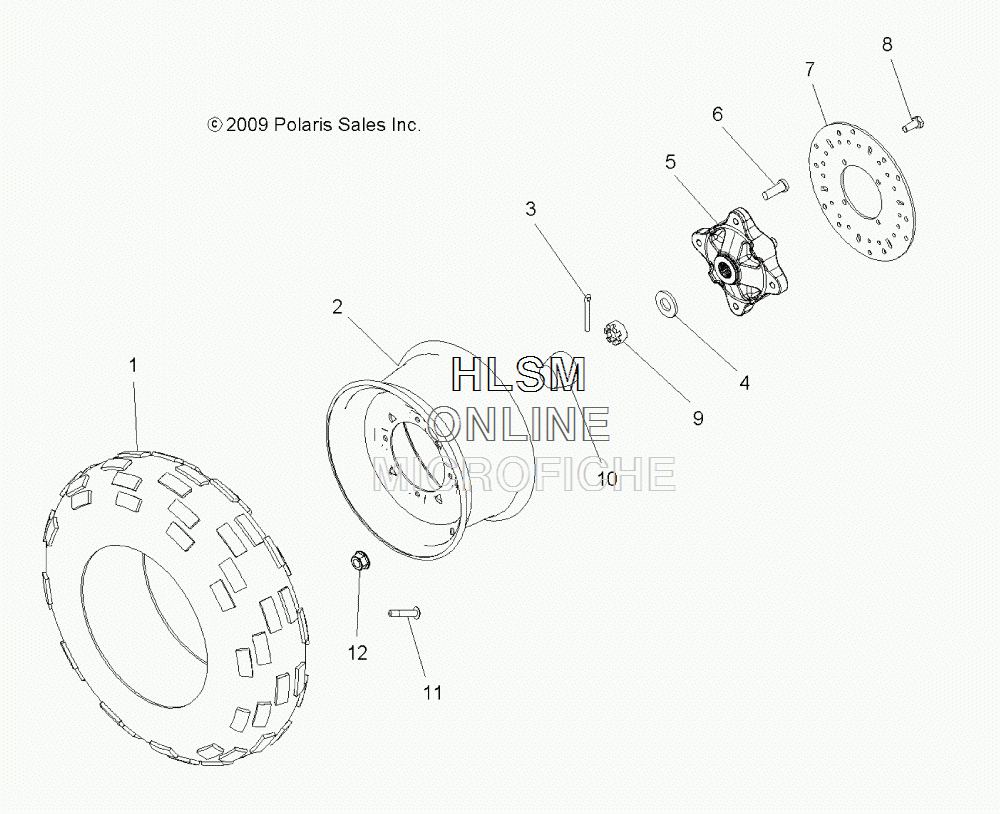

WHEEL - FRONT для Polaris SPORTSMAN TOURING 500 HO - (INDY RED) [A12DH50AZ] - 2012 года выпуска
-
№АртикулНазвание
-
15413994 TIRE, 25X8-12TIRE, 25X8-12
-
21520263-067 RIM, FRONT, BLACKRIM, FRONT, BLACK
-
37661404 PIN, COTTERPIN, COTTER
-
47556004 WASHERWASHER
-
55134310 HUB, WHEELHUB, WHEEL
-
67518378 STUDSTUD
-
75244314 DISC, BRAKE, FRONTDISC, BRAKE, FRONT
-
87512325 BOLTBOLT
-
97542810 NUT, SLOTTEDNUT, SLOTTED
-
105413427 HUB, DUST COVERHUB, DUST COVER
-
111525017 VALVE, RIMVALVE, RIM
-
127547237 NUT, FLANGENUT, FLANGE
