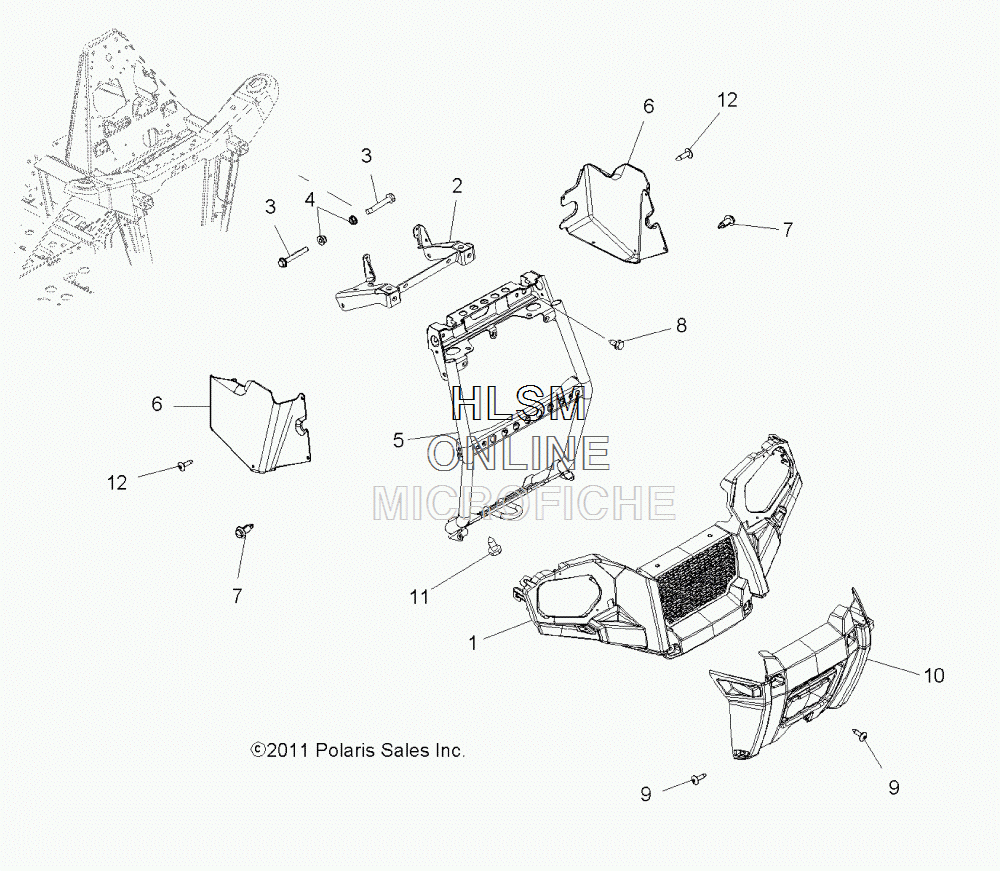

BUMPER - FRONT для Polaris SPORTSMAN TOURING 500 HO - (INDY RED) [A12DH50AZ] - 2012 года выпуска
-
№АртикулНазвание
-
15438559-070 BUMPER, FRONT, BLACKBUMPER, FRONT, BLACK
-
25254310-329 BRACKET, RADIATOR, UPPER, BLACK (BUILT 7/20/11 AND BEFORE)BRACKET, RADIATOR, UPPER, BLACK (BUILT 7/20/11 AND BEFORE)
-
25255572-329 BRACKET, RADIATOR, UPPER, BLACK (BUILT 7/21/11 AND AFTER)BRACKET, RADIATOR, UPPER, BLACK (BUILT 7/21/11 AND AFTER)
-
37518341 BOLT, FLANGEBOLT, FLANGE
-
47542343 NUT, FLANGENUT, FLANGE
-
51018374 FRAME, BUMPER (BUILT 1/02/12 AND BEFORE)FRAME, BUMPER (BUILT 1/02/12 AND BEFORE)
-
51017743-067 FRAME, BUMPER, BLACK (BUILT 1/03/12 AND AFTER)FRAME, BUMPER, BLACK (BUILT 1/03/12 AND AFTER)
-
65438689 SHIELD, SIDE, RADIATOR, LEFT HANDSHIELD, SIDE, RADIATOR, LEFT HAND
-
65438690 SHIELD, SIDE, RADIATOR, RIGHT HANDSHIELD, SIDE, RADIATOR, RIGHT HAND
-
77661855 RIVETRIVET
-
87517386 SCREWSCREW
-
97517685 SCREWSCREW
-
105438557-070 COVER, RADIATOR ACCESS, BLACKCOVER, RADIATOR ACCESS, BLACK
-
117515399 SCREWSCREW
-
127519092 SCREWSCREW
