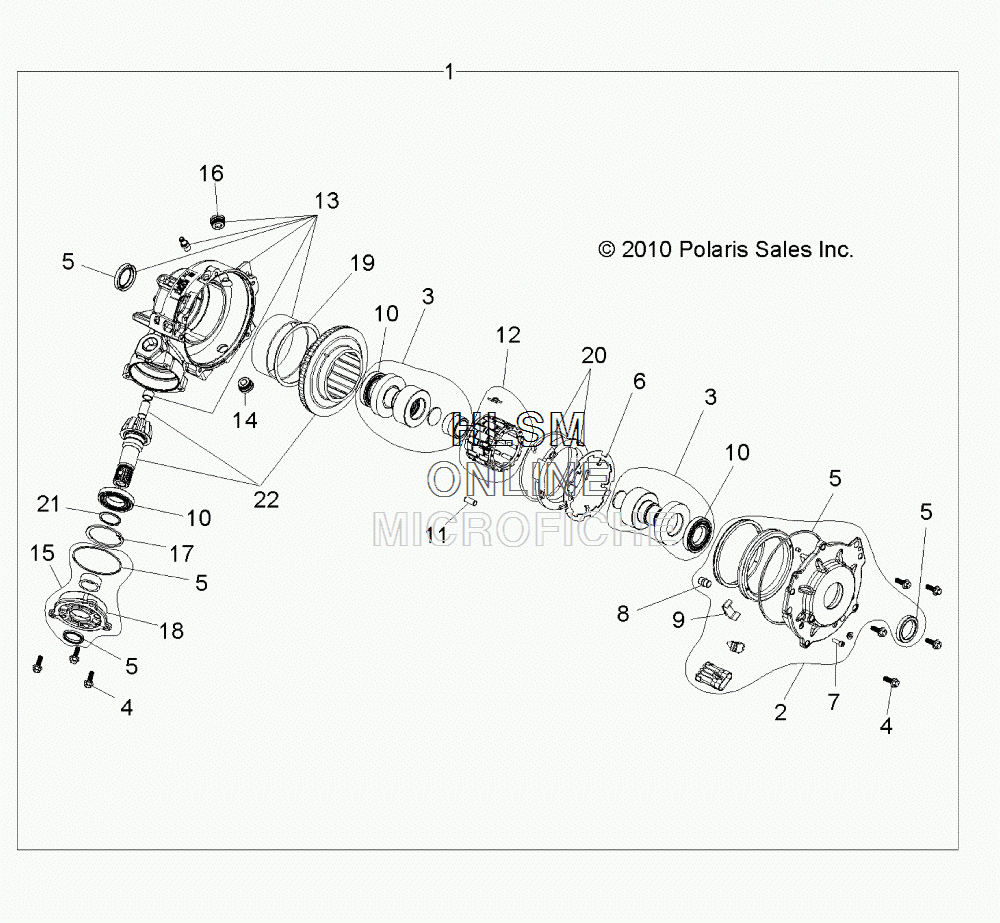

GEARCASE - FRONT для Polaris SPORTSMAN TOURING 500 HO - (INDY RED) [A12DH50AZ] - 2012 года выпуска
-
№АртикулНазвание
-
11332956 ASM., GEARCASE, AWD (INCL. ALL) (BUILT 9/27/10 AND AFTER)ASM., GEARCASE, AWD (INCL. ALL) (BUILT 9/27/10 AND AFTER)
-
23235162 ASM., COVER, OUTPUTASM., COVER, OUTPUT
-
33234936 KIT, OUTPUT HUB (INCL. HUB ASM. FEMALE, HUB ASM. MALE)KIT, OUTPUT HUB (INCL. HUB ASM. FEMALE, HUB ASM. MALE)
-
43234405 KIT, BOLT (INCL. 8 SCREWS)KIT, BOLT (INCL. 8 SCREWS)
-
53235330 KIT, SEAL REPAIR (INCL. ALL SEALS)KIT, SEAL REPAIR (INCL. ALL SEALS)
-
63234407 PLATE, ARMATUREPLATE, ARMATURE
-
73234408 SET, SCREWSET, SCREW
-
83234594 ASM., THRUST BUTTONASM., THRUST BUTTON
-
93235183 PLATE, THRUSTPLATE, THRUST
-
103234390 BEARINGBEARING
-
113234393 KIT, ROLLER (INCL. COMPLETE SET OF ROLLERS)KIT, ROLLER (INCL. COMPLETE SET OF ROLLERS)
-
123234907 ASM., ROLL CAGE (INCL. CAGE AND COMPLETE SET OF CLIPS)ASM., ROLL CAGE (INCL. CAGE AND COMPLETE SET OF CLIPS)
-
123235262 ASM., ROLL CAGE, BILLET ALUM (HIGH PERFORMANCE ACCESSORY) (INCL. CLIP SET)ASM., ROLL CAGE, BILLET ALUM (HIGH PERFORMANCE ACCESSORY) (INCL. CLIP SET)
-
133234411 ASM., GEARCASE (INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL)ASM., GEARCASE (INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL)
-
143234412 ASM., DRAIN PLUG, MAGNETICASM., DRAIN PLUG, MAGNETIC
-
153235337 COVER, INPUT (INCL. INPUT COVER, O-RING, OIL SEAL, NEEDLE FOLLER BEARING)COVER, INPUT (INCL. INPUT COVER, O-RING, OIL SEAL, NEEDLE FOLLER BEARING)
-
163234414 PLUG, OIL FILLPLUG, OIL FILL
-
173234416 RING, RETAININGRING, RETAINING
-
183234418 COVER, INPUTCOVER, INPUT
-
193234437 SPACER, RING GEARSPACER, RING GEAR
-
203234908 KIT, SPRING (INCL. SPRING RETAINER, TORSION SPRING)KIT, SPRING (INCL. SPRING RETAINER, TORSION SPRING)
-
213235177 RING, RETAININGRING, RETAINING
-
223235189 ASM., RING AND PINION GEAR (INCL. RING GEAR SUB ASM., PINION GEAR, DOWEL PIN)ASM., RING AND PINION GEAR (INCL. RING GEAR SUB ASM., PINION GEAR, DOWEL PIN)
