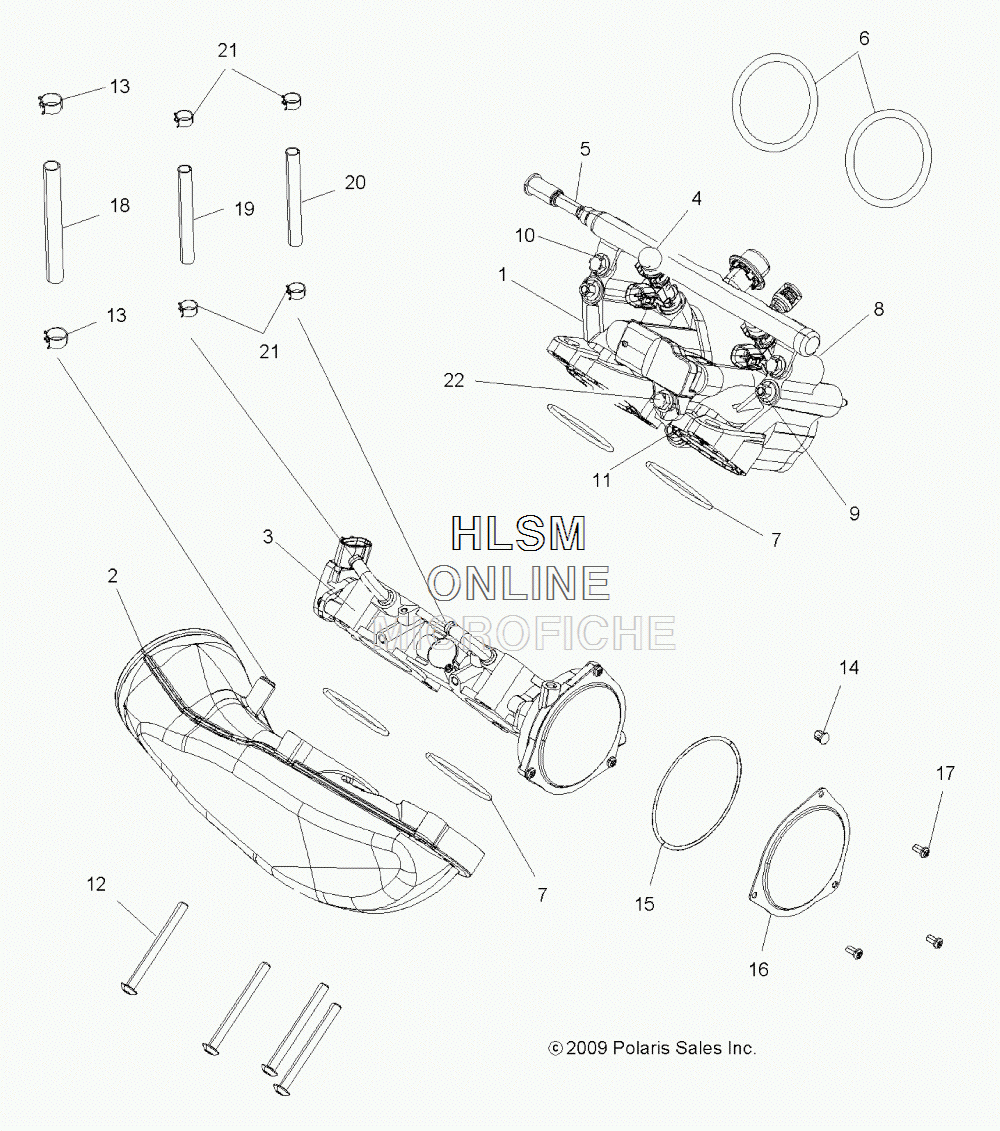

THROTTLE BODY для Polaris SPORTSMAN FOREST 850 (A11ZX85FF) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    1203698 ASM., IAFM, TWIN, DUAL PORT (INCL. 4-11)
    ASM., IAFM, TWIN, DUAL PORT (INCL. 4-11)
  • 2
    1203737 ASM., PLENUM (INCL. 7)
    ASM., PLENUM (INCL. 7)
  • 3
    1203943 ASM., THROTTLE BODY (INCL. 15-17)
    ASM., THROTTLE BODY (INCL. 15-17)
  • 4
    1203568 INJECTOR
    INJECTOR
  • 4
    7081444 CLIP, INJECTOR
    CLIP, INJECTOR
  • 5
    2520563 ASM., FUEL RAIL, DUAL PORT
    ASM., FUEL RAIL, DUAL PORT
  • 5
    5413286 CAP, DIAGNOSTIC
    CAP, DIAGNOSTIC
  • 6
    5413283 SEAL, INTAKE, PORT
    SEAL, INTAKE, PORT
  • 7
    5413386 SEAL, INTAKE, THROTTLE BODY
    SEAL, INTAKE, THROTTLE BODY
  • 8
    5437322 INTAKE, MANIFOLD, DUAL PORT
    INTAKE, MANIFOLD, DUAL PORT
  • 9
    7518539 SCREW
    SCREW
  • 10
    7518541 SCREW
    SCREW
  • 11
    7518844 SCREW
    SCREW
  • 12
    7519019 SCREW
    SCREW
  • 13
    7080474 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    3130543 GUIDE, CABLE
    GUIDE, CABLE
  • 15
    5413599 O-RING, THROTTLE CAM COVER
    O-RING, THROTTLE CAM COVER
  • 16
    5252518 COVER, THROTTLE CAM
    COVER, THROTTLE CAM
  • 17
    3130924 SCREW
    SCREW
  • 18
    8450116-153 HOSE (BUILT 8/16/10 AND BEFORE)
    HOSE (BUILT 8/16/10 AND BEFORE)
  • 18
    5413289 HOSE, BREATHER, FORMED (BUILT 8/17/10 AND AFTER)
    HOSE, BREATHER, FORMED (BUILT 8/17/10 AND AFTER)
  • 19
    8450114-153 HOSE
    HOSE
  • 20
    8450114-153 HOSE
    HOSE
  • 21
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 22
    7518844 SCREW
    SCREW
