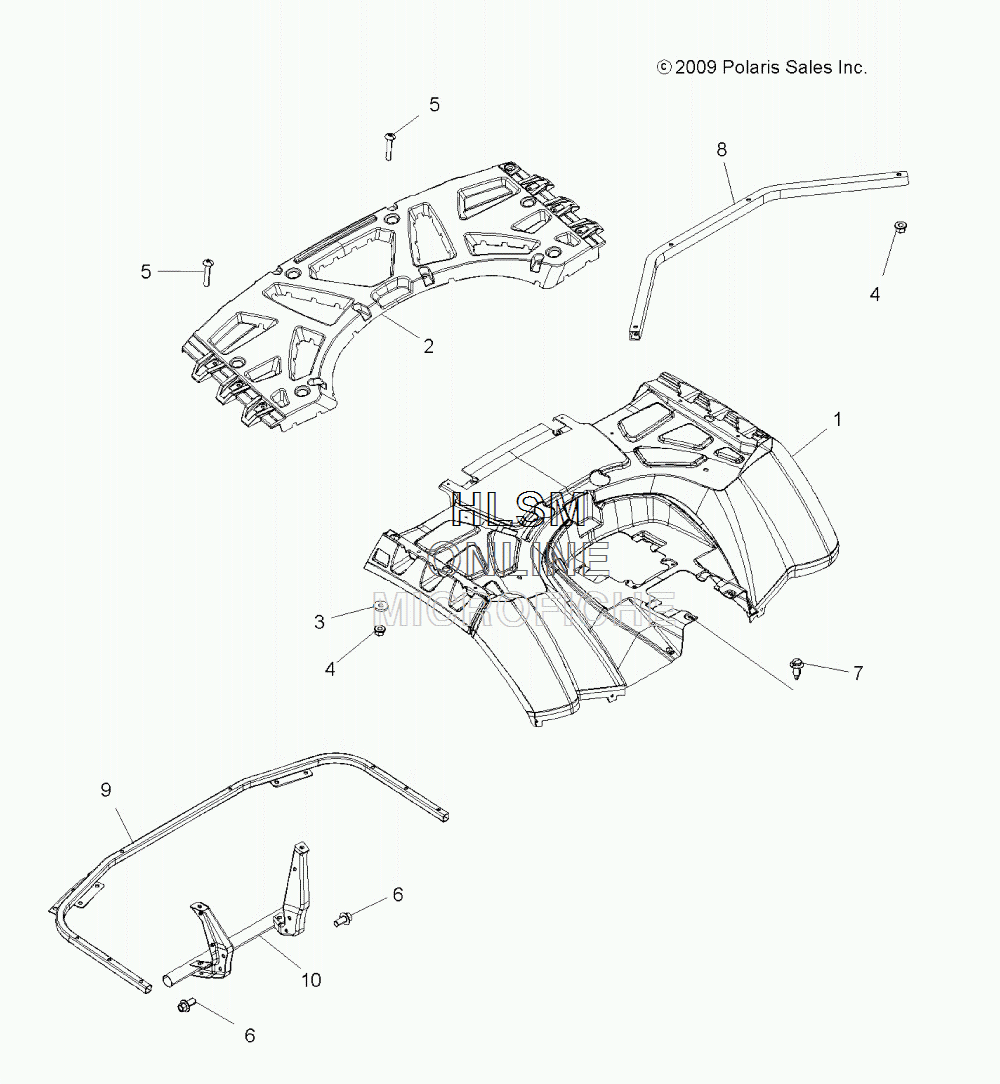

CAB - REAR W/ REAR RACK для Polaris SPORTSMAN FOREST 850 (A11ZX85FF) - 2011 года выпуска`
-
№АртикулНазвание
-
15437734-498 CAB, REAR (CRIMSON RED METALLIC)CAB, REAR (CRIMSON RED METALLIC)
-
22633429-070 ASM., RACK, REAR (BLACK) (INCL. WARNING DECAL)ASM., RACK, REAR (BLACK) (INCL. WARNING DECAL)
-
37558302 WASHERWASHER
-
47547274 NUT, FLANGENUT, FLANGE
-
57519001 SCREWSCREW
-
67518555 BOLTBOLT
-
77661855 RIVETRIVET
-
85335770-329 TUBE, SUPPORT, RACK, REAR, FRONT (BLACK)TUBE, SUPPORT, RACK, REAR, FRONT (BLACK)
-
91016782-329 BRACKET, RACK, REAR (BLACK)BRACKET, RACK, REAR (BLACK)
-
101015776-067 SUPPORT, RACK, REAR (BLACK)SUPPORT, RACK, REAR (BLACK)
