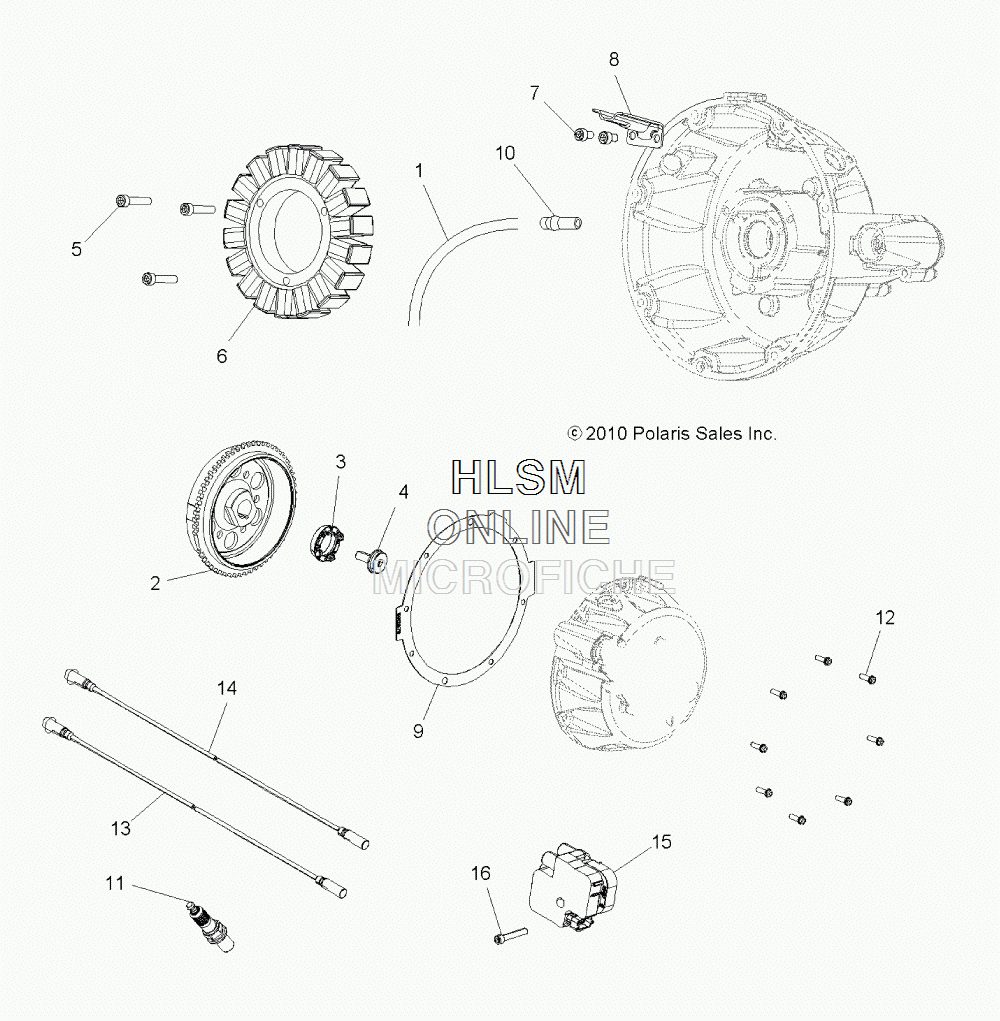

IGNITION SYSTEM для Polaris SPORTSMAN FOREST 850 (A11ZX85FF) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    8360077 TUBING, NYLON
    TUBING, NYLON
  • 2
    4011428 FLYWHEEL
    FLYWHEEL
  • 3
    5136307 COUPLER, WATER PUMP, FLYWHEEL
    COUPLER, WATER PUMP, FLYWHEEL
  • 4
    5136389 BOLT, WATER PUMP DRIVE (LEFT) (BUILT 9/22/10 AND BEFORE)
    BOLT, WATER PUMP DRIVE (LEFT) (BUILT 9/22/10 AND BEFORE)
  • 4
    5137471 BOLT, WATER PUMP DRIVE (LEFT) (BUILT 9/23/10 AND AFTER)
    BOLT, WATER PUMP DRIVE (LEFT) (BUILT 9/23/10 AND AFTER)
  • 5
    7518544 SCREW
    SCREW
  • 6
    4011427 STATOR W/GROMMET
    STATOR W/GROMMET
  • 7
    7518765 SCREW
    SCREW
  • 8
    5250018 RETAINER, STATOR WIRE
    RETAINER, STATOR WIRE
  • 9
    5813267 GASKET, STATOR COVER
    GASKET, STATOR COVER
  • 10
    7052463 FITTING
    FITTING
  • 11
    3022225 PLUG, SPARK
    PLUG, SPARK
  • 12
    7518576 SCREW
    SCREW
  • 13
    4012343 WIRE, SPARK PLUG, 356MM
    WIRE, SPARK PLUG, 356MM
  • 14
    4012344 WIRE, SPARK PLUG, 406MM
    WIRE, SPARK PLUG, 406MM
  • 15
    4010425 COIL, EFI
    COIL, EFI
  • 16
    7518922 SCREW
    SCREW
