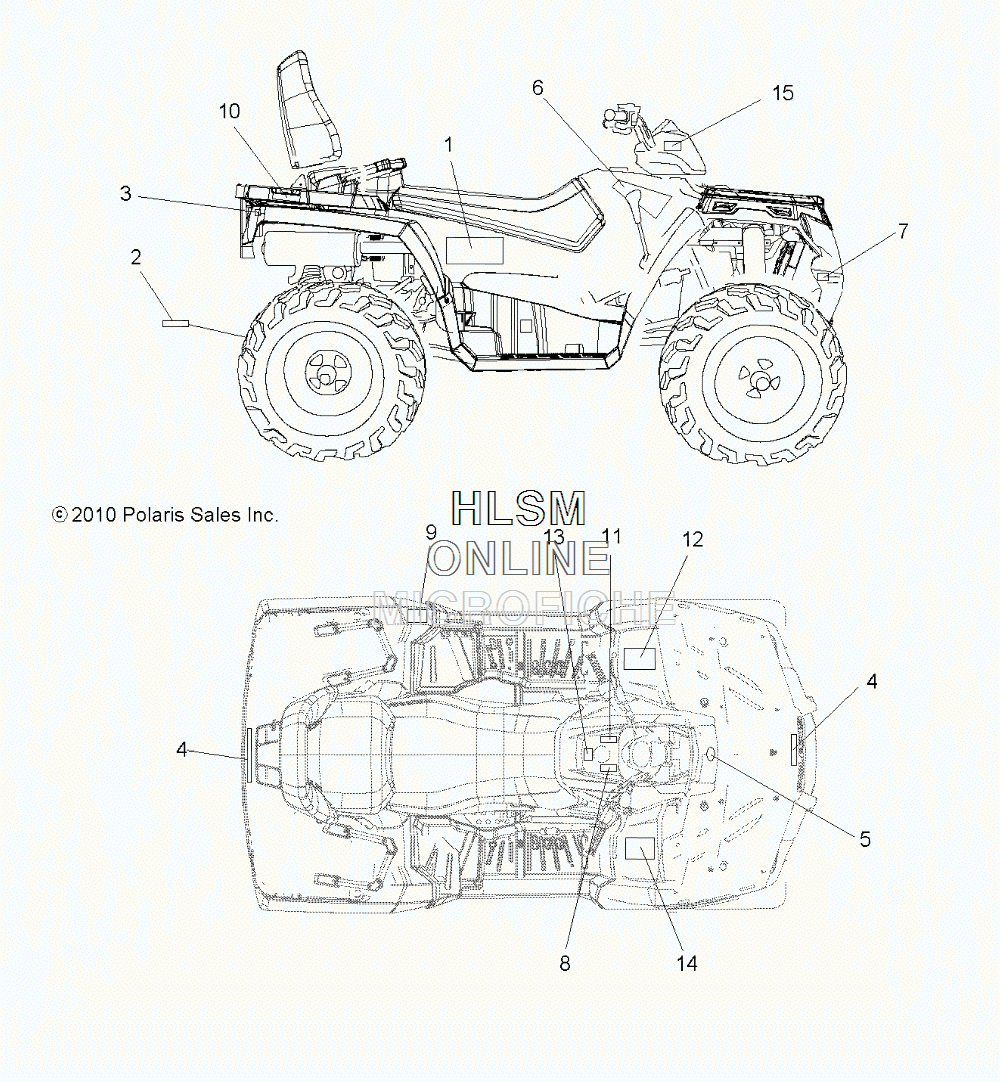

DECALS для Polaris SPORTSMAN 500 HO TOURING 2-PASS - SAGEBRUSH GREEN METALLIC (A11DH50AX) - 2011 года выпуска
-
№АртикулНазвание
-
17177108 DECAL, REAR, 'AWD' (LEFT)DECAL, REAR, 'AWD' (LEFT)
-
17177109 DECAL, REAR, 'AWD' (RIGHT)DECAL, REAR, 'AWD' (RIGHT)
-
27174159 DECAL, HITCHDECAL, HITCH
-
37175618 DECAL, FLAG, REARDECAL, FLAG, REAR
-
47172572 DECAL, WARNING, FRONT/REAR RACKDECAL, WARNING, FRONT/REAR RACK
-
57078465 LOGO, POLARIS STARLOGO, POLARIS STAR
-
67177061 DECAL, SIDE, 'SPORTSMAN 500' (LEFT)DECAL, SIDE, 'SPORTSMAN 500' (LEFT)
-
67177062 DECAL, SIDE, 'SPORTSMAN 500' (RIGHT)DECAL, SIDE, 'SPORTSMAN 500' (RIGHT)
-
72670134 DECAL, REFLECTOR, AMBERDECAL, REFLECTOR, AMBER
-
87175485 DECAL, CAUTION, 4X4DECAL, CAUTION, 4X4
-
97175441 DECAL, TIRE/LOADDECAL, TIRE/LOAD
-
107174412 DECAL, REFLECTOR (RED)DECAL, REFLECTOR (RED)
-
117175486 DECAL, WARNING, OVERRIDEDECAL, WARNING, OVERRIDE
-
127175844 DECAL, WARNING, GENERAL/DISC, 2-UPDECAL, WARNING, GENERAL/DISC, 2-UP
-
137175375 DECAL, AGE WARNING, ADULT, 2-UPDECAL, AGE WARNING, ADULT, 2-UP
-
147175845 DECAL, PASSENGER WARNINGDECAL, PASSENGER WARNING
-
157177067 DECAL, PODDECAL, POD
