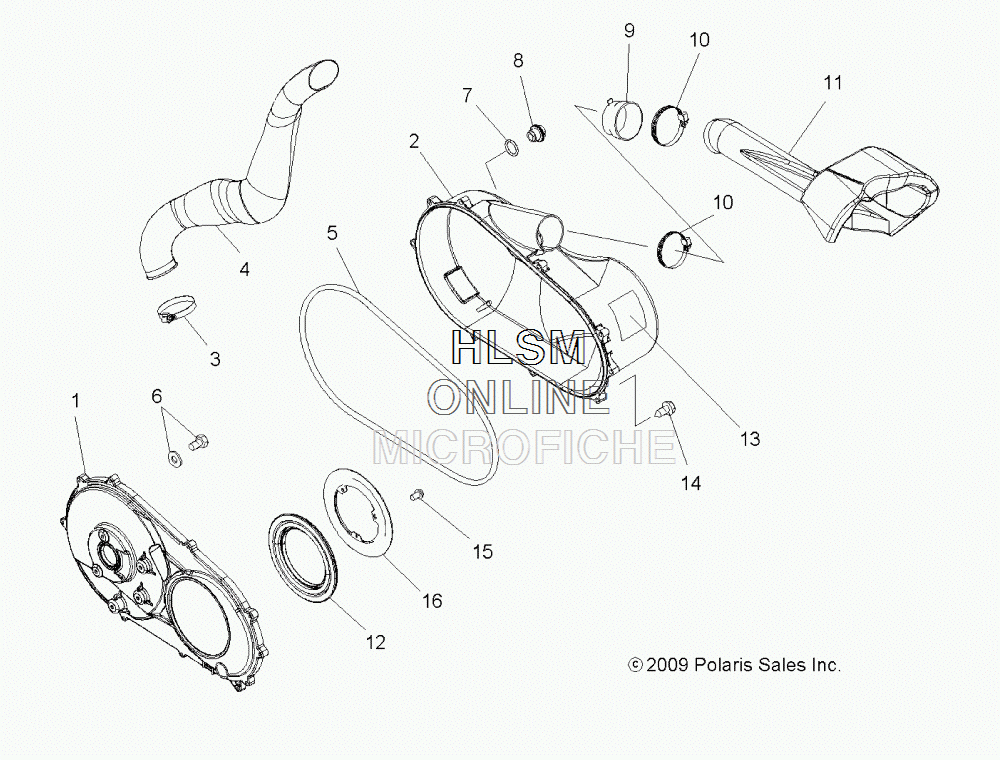

CLUTCH COVER для Polaris SPORTSMAN 500 HO TOURING 2-PASS - SAGEBRUSH GREEN METALLIC (A11DH50AX) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    2633158 ASM., CLUTCH COVER, INNER (INCL. 5,12)
    ASM., CLUTCH COVER, INNER (INCL. 5,12)
  • 2
    2633926 ASM., COVER, OUTER (INCL. 7,8)
    ASM., COVER, OUTER (INCL. 7,8)
  • 3
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 4
    5438431 DUCT, CLUTCH AIR INLET
    DUCT, CLUTCH AIR INLET
  • 5
    5521738 SEAL, COVER, CLUTCH
    SEAL, COVER, CLUTCH
  • 6
    7517599 ASM., BOLT/WASHER
    ASM., BOLT/WASHER
  • 7
    5410542 O-RING
    O-RING
  • 8
    5434264 PLUG, DRAIN
    PLUG, DRAIN
  • 9
    5412636 BOOT, DUCT
    BOOT, DUCT
  • 10
    7081279 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 11
    5437043 DUCT, CLUTCH OUTLET
    DUCT, CLUTCH OUTLET
  • 12
    5412725 SEAL, COVER CASE
    SEAL, COVER CASE
  • 13
    7172563 DECAL, WARNING, CLUTCH COVER
    DECAL, WARNING, CLUTCH COVER
  • 14
    7512094 SCREW
    SCREW
  • 15
    3084205 ASM., SCREW AND WASHER
    ASM., SCREW AND WASHER
  • 16
    5242046 BRACKET, CLUTCH, SEAL
    BRACKET, CLUTCH, SEAL
