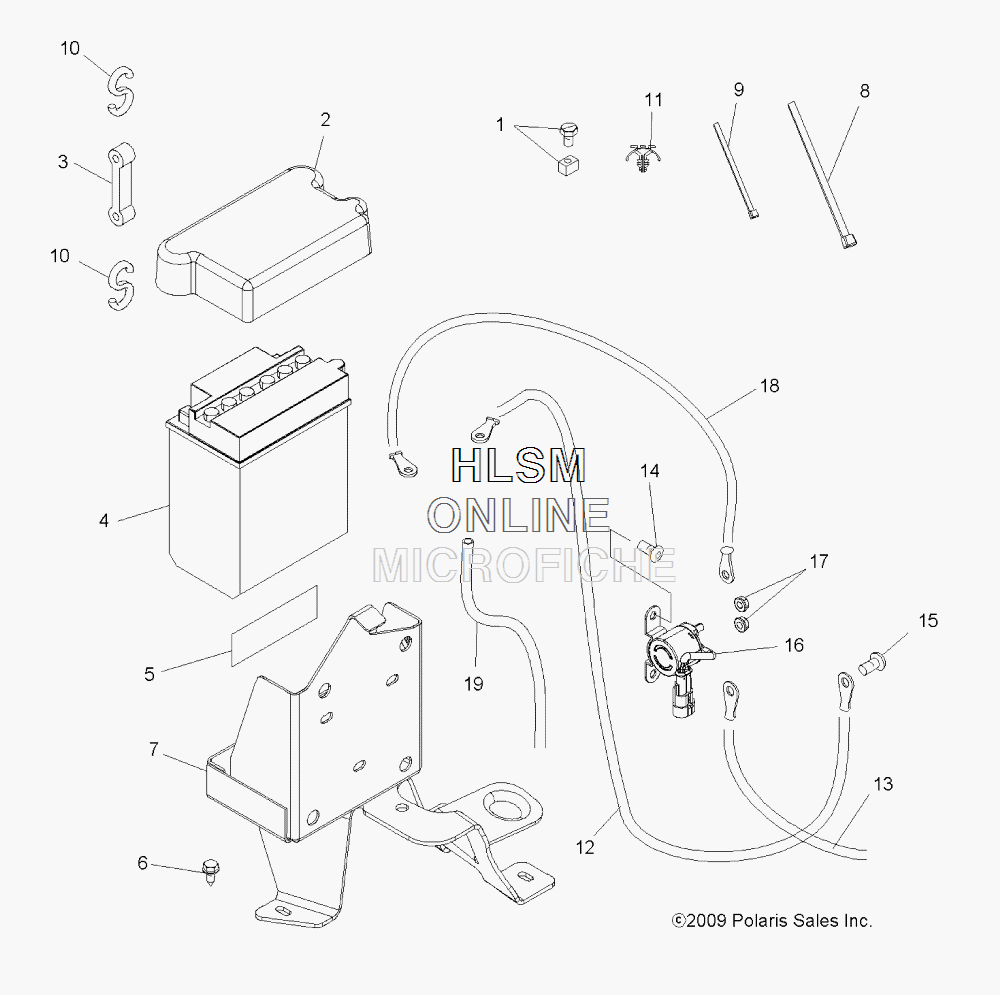

BATTERY для Polaris SPORTSMAN 500 HO TOURING 2-PASS - SAGEBRUSH GREEN METALLIC (A11DH50AX) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    2202213 KIT, BATTERY BOLT
    KIT, BATTERY BOLT
  • 2
    5431769 COVER, BATTERY
    COVER, BATTERY
  • 3
    5413867 STRAP, BATTERY HOLDDOWN
    STRAP, BATTERY HOLDDOWN
  • 4
    4140006 BATTERY
    BATTERY
  • 5
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 6
    7517386 SCREW
    SCREW
  • 7
    1017233-067 BOX, BATTERY (BLACK)
    BOX, BATTERY (BLACK)
  • 8
    7080492 CABLE TIE
    CABLE TIE
  • 9
    7080138 CABLE TIE
    CABLE TIE
  • 10
    7010032 HOOK, BATTERY STRAP
    HOOK, BATTERY STRAP
  • 11
    7080965 MOUNT, CABLE TIE
    MOUNT, CABLE TIE
  • 12
    4012868 CABLE, BATTERY (BLACK)
    CABLE, BATTERY (BLACK)
  • 13
    4010093 CABLE, SOLENOID/STARTER
    CABLE, SOLENOID/STARTER
  • 14
    7512024 SCREW
    SCREW
  • 15
    7512232 BOLT
    BOLT
  • 16
    4012001 SOLENOID, STARTER
    SOLENOID, STARTER
  • 17
    7547270 NUT, FLANGE
    NUT, FLANGE
  • 18
    4012867 CABLE, BATTERY/SOLENOID
    CABLE, BATTERY/SOLENOID
  • 19
    5432077 TUBE, VENT
    TUBE, VENT
