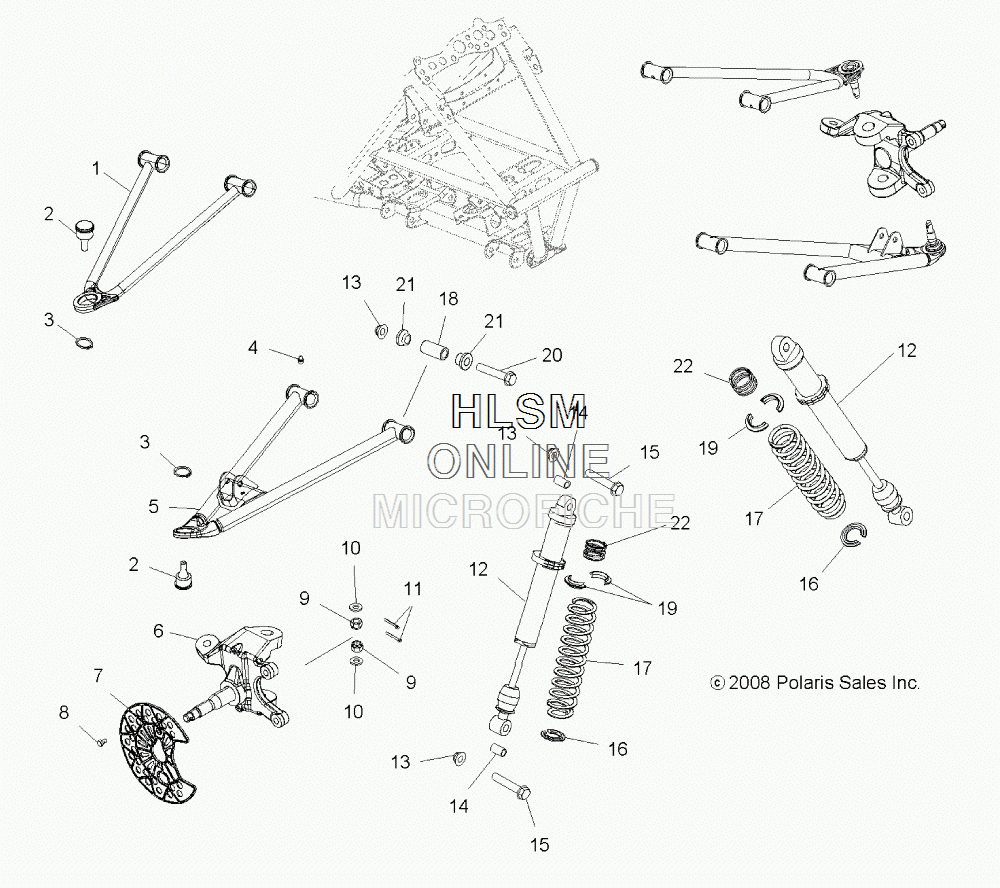

SUSPENSION- FRONT для Polaris OUTLAW 525 IRS (A11GP52AA) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    1015697-385 A-ARM, UPPER (LEFT) (SILVER)
    A-ARM, UPPER (LEFT) (SILVER)
  • 1
    1015698-385 A-ARM, UPPER (RIGHT) (SILVER)
    A-ARM, UPPER (RIGHT) (SILVER)
  • 2
    7061156 JOINT, BALL
    JOINT, BALL
  • 3
    7710533 RING, RETAINER
    RING, RETAINER
  • 4
    7080433 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 5
    1015075-385 A-ARM, LOWER (LEFT) (SILVER)
    A-ARM, LOWER (LEFT) (SILVER)
  • 5
    1015076-385 A-ARM, LOWER (RIGHT) (SILVER)
    A-ARM, LOWER (RIGHT) (SILVER)
  • 6
    1823340 ASM., KNUCKLE, STEERING (LEFT)
    ASM., KNUCKLE, STEERING (LEFT)
  • 6
    1823341 ASM., KNUCKLE, STEERING (RIGHT)
    ASM., KNUCKLE, STEERING (RIGHT)
  • 7
    5436830 GUARD, DISK, INNER
    GUARD, DISK, INNER
  • 8
    7518441 SCREW
    SCREW
  • 9
    7547336 NUT, CASTLE
    NUT, CASTLE
  • 10
    7556376 WASHER
    WASHER
  • 11
    7661203 PIN, COTTER
    PIN, COTTER
  • 12
    7043459 SHOCK, FRONT (SEE SHOCK, FRONT PAGE FOR DETAILS)
    SHOCK, FRONT (SEE SHOCK, FRONT PAGE FOR DETAILS)
  • 13
    7547333 NUT, FLANGE
    NUT, FLANGE
  • 14
    5334876 SLEEVE
    SLEEVE
  • 15
    7518559 SCREW
    SCREW
  • 16
    5630580 RETAINER, SPRING, SLOTTED
    RETAINER, SPRING, SLOTTED
  • 17
    7043197-293 SPRING, COMPRESSION (INDY RED)
    SPRING, COMPRESSION (INDY RED)
  • 18
    5135270 SHAFT, A-ARM
    SHAFT, A-ARM
  • 19
    5436643 SPACER, SPRING, NYLON
    SPACER, SPRING, NYLON
  • 20
    7518664 SCREW
    SCREW
  • 21
    5434575 BUSHING, A-ARM
    BUSHING, A-ARM
  • 22
    7043471-293 SPRING, COMPRESSION (INDY RED)
    SPRING, COMPRESSION (INDY RED)
