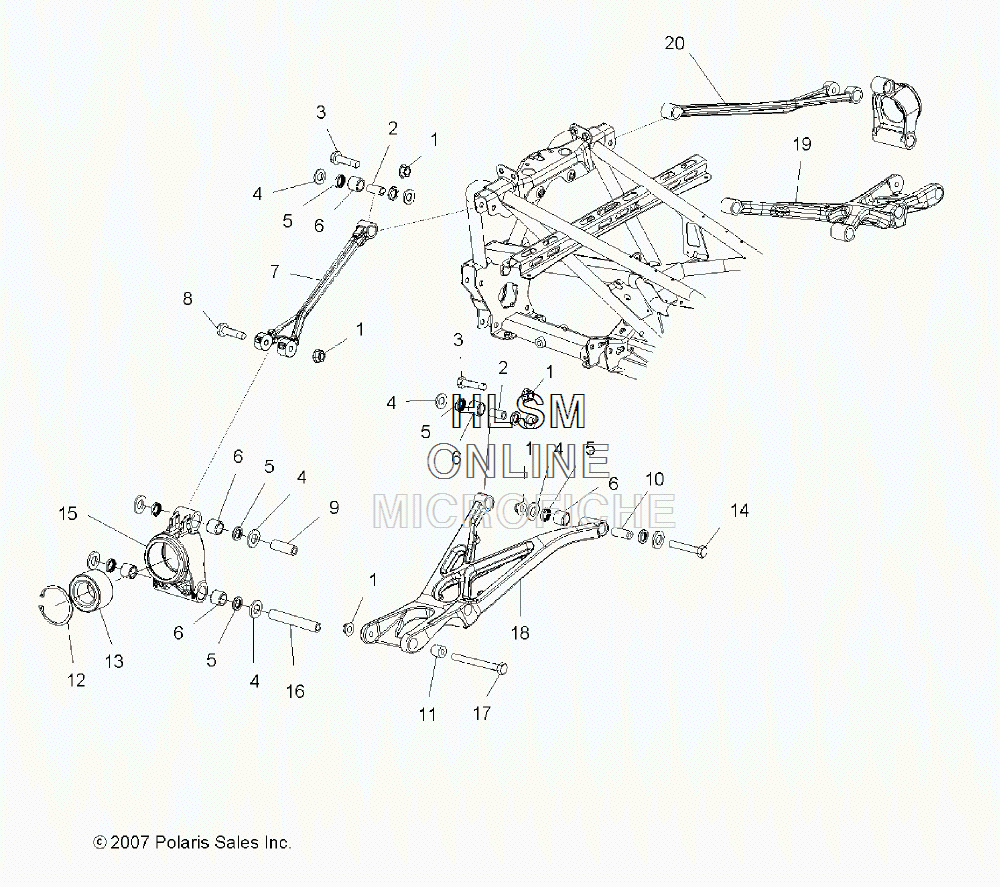

SUSPENSION - REAR для Polaris OUTLAW 525 IRS (A11GP52AA) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    7547333 NUT, FLANGE
    NUT, FLANGE
  • 2
    5334816 SHAFT, INNER
    SHAFT, INNER
  • 3
    7518563 BOLT, FLANGE
    BOLT, FLANGE
  • 4
    7556356 WASHER, THRUST
    WASHER, THRUST
  • 5
    3610125 SEAL
    SEAL
  • 6
    3514542 BEARING, NEEDLE
    BEARING, NEEDLE
  • 7
    5136018 ARM, CONTROL, UPPER (RIGHT)
    ARM, CONTROL, UPPER (RIGHT)
  • 8
    7518560 BOLT, FLANGE
    BOLT, FLANGE
  • 9
    5335307 SHAFT, CONTROL ARM, OUTER
    SHAFT, CONTROL ARM, OUTER
  • 10
    5335366 SHAFT, CONTROL ARM, INNER
    SHAFT, CONTROL ARM, INNER
  • 11
    5334894 SLEEVE, FLOAT
    SLEEVE, FLOAT
  • 12
    7710507 RING, RETAINING
    RING, RETAINING
  • 13
    3514342 BEARING, HUB
    BEARING, HUB
  • 14
    7518561 BOLT, FLANGE
    BOLT, FLANGE
  • 15
    5136016 CARRIER, BEARING
    CARRIER, BEARING
  • 16
    5334820 SHAFT, BEARING CARRIER
    SHAFT, BEARING CARRIER
  • 17
    7518858 BOLT, FLANGE
    BOLT, FLANGE
  • 18
    5136147 ARM, CONTROL, LOWER (RIGHT)
    ARM, CONTROL, LOWER (RIGHT)
  • 19
    5136146 ARM, CONTROL, LOWER (LEFT)
    ARM, CONTROL, LOWER (LEFT)
  • 20
    5136017 ARM, CONTROL, UPPER (LEFT)
    ARM, CONTROL, UPPER (LEFT)
