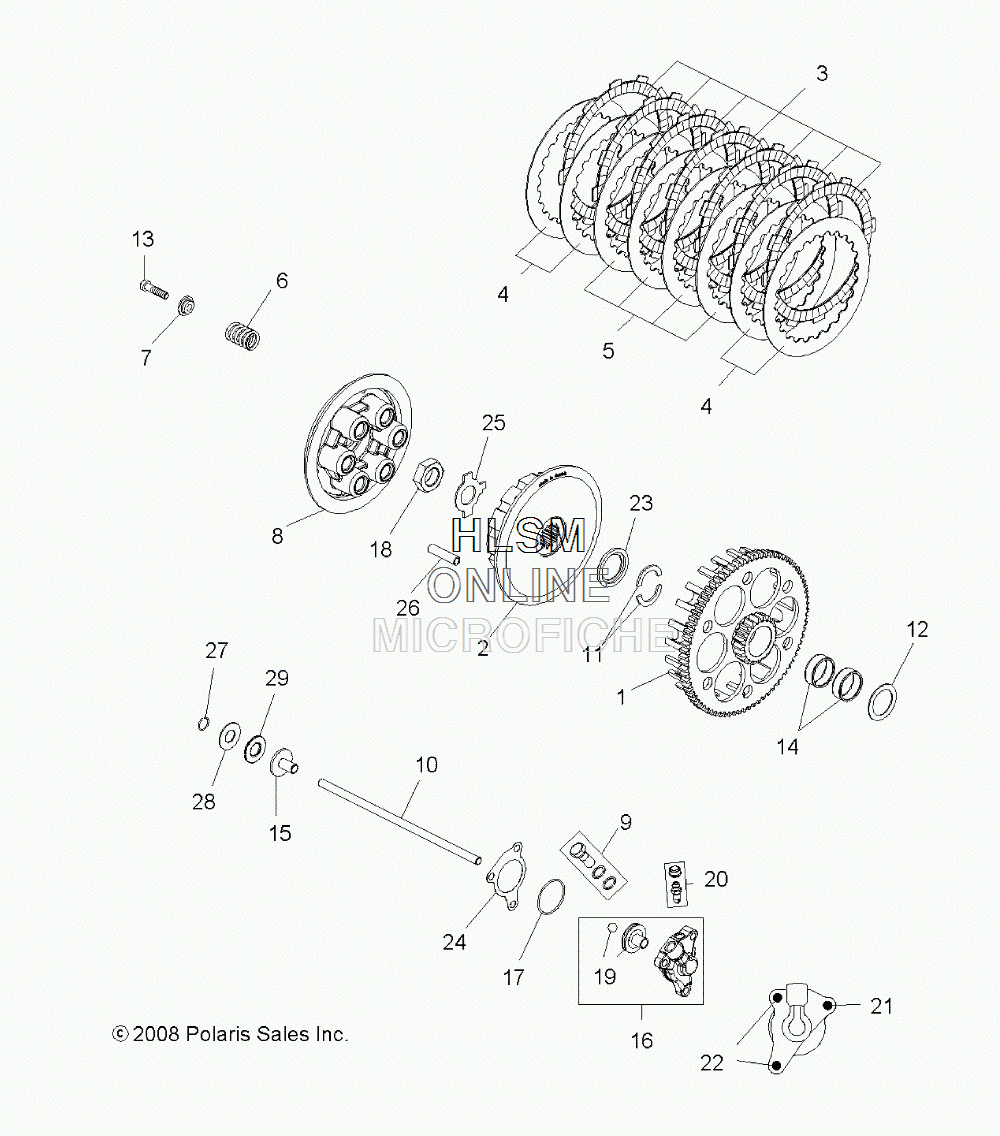

CLUTCH ASSY для Polaris OUTLAW 525 IRS (A11GP52AA) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    5135839 BASKET, CLUTCH, 75T
    BASKET, CLUTCH, 75T
  • 2
    5135838 HUB, CLUTCH, INNER
    HUB, CLUTCH, INNER
  • 3
    3234460 DISC, CLUTCH, FRICTION, 2MM
    DISC, CLUTCH, FRICTION, 2MM
  • 4
    3234458 DISC, CLUTCH, METAL, 1MM
    DISC, CLUTCH, METAL, 1MM
  • 5
    3234459 DISC, CLUTCH, METAL, 1.4MM
    DISC, CLUTCH, METAL, 1.4MM
  • 6
    7043302 SPRING, CLUTCH
    SPRING, CLUTCH
  • 7
    7043301 RETAINER, SPRING
    RETAINER, SPRING
  • 8
    5135840 PLATE, PRESSURE W/OIL BORING
    PLATE, PRESSURE W/OIL BORING
  • 9
    2203411 KIT, HYDROCLUTCH, BANJO BOLT
    KIT, HYDROCLUTCH, BANJO BOLT
  • 10
    3234461 PUSHROD
    PUSHROD
  • 11
    7710598 WASHER, HALF
    WASHER, HALF
  • 12
    7556410 WASHER, SUPPORT
    WASHER, SUPPORT
  • 13
    7518737 SCREW
    SCREW
  • 14
    3514580 BEARING, NEEDLE
    BEARING, NEEDLE
  • 15
    1203521 CAP, CLUTCH, ROD END
    CAP, CLUTCH, ROD END
  • 16
    2203413 KIT, HYDROCLUTCH, SLAVE CYLINDER
    KIT, HYDROCLUTCH, SLAVE CYLINDER
  • 17
    5413253 O-RING
    O-RING
  • 18
    7547379 NUT, HEX
    NUT, HEX
  • 19
    2203412 KIT, HYDROCLUTCH, PISTON
    KIT, HYDROCLUTCH, PISTON
  • 20
    7518794 SCREW, HYDRAULIC BLEED W/CAP
    SCREW, HYDRAULIC BLEED W/CAP
  • 21
    7518612 BOLT
    BOLT
  • 22
    7518723 SCREW
    SCREW
  • 23
    7556409 WASHER, STIPPED
    WASHER, STIPPED
  • 24
    5813171 GASKET, HYDROCLUTCH, SLAVE CYLINDER
    GASKET, HYDROCLUTCH, SLAVE CYLINDER
  • 25
    7547380 WASHER, LOCK
    WASHER, LOCK
  • 26
    3234457 SLEEVE, DRIVEN, HUB, CLUTCH, INNER
    SLEEVE, DRIVEN, HUB, CLUTCH, INNER
  • 27
    7710613 RING, SNAP
    RING, SNAP
  • 28
    7556444 WASHER, THRUST
    WASHER, THRUST
  • 29
    3514602 BEARING, THRUST, NEEDLE
    BEARING, THRUST, NEEDLE
