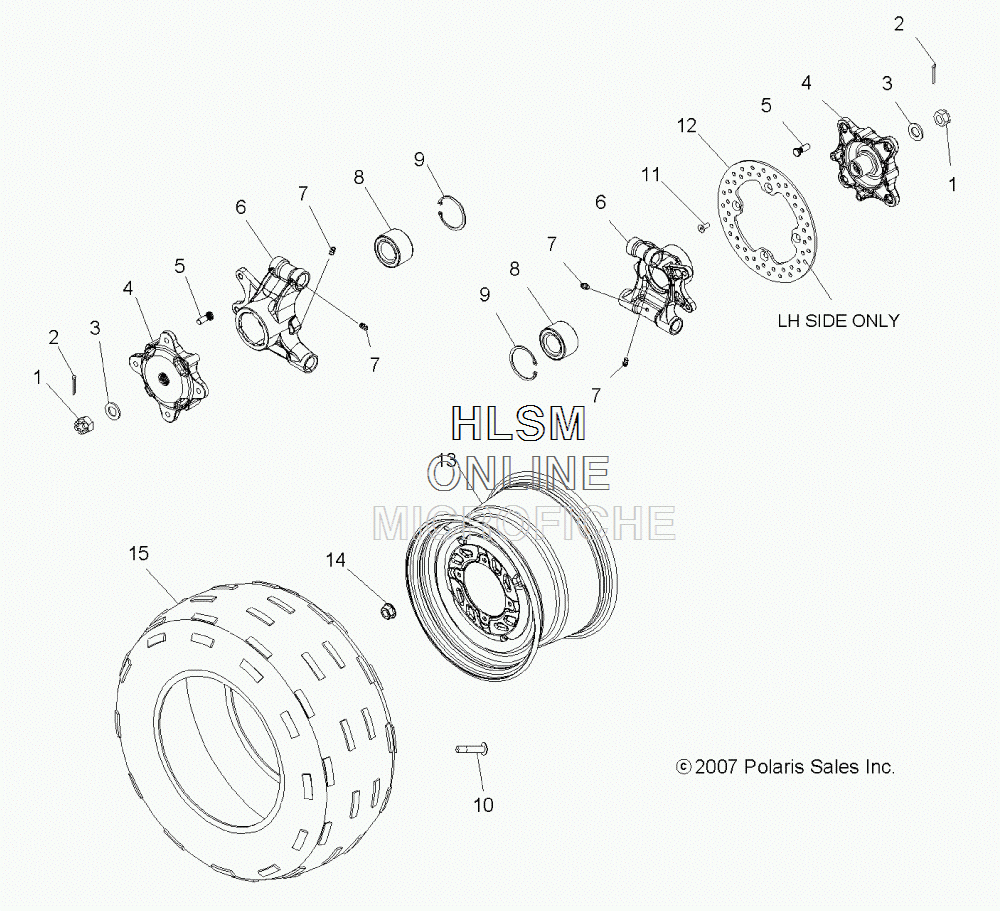

REAR WHEELS для Polaris HAWKEYE 2X4 (A11LB27AA) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    7547337 NUT, CASTLE
    NUT, CASTLE
  • 2
    7661404 PIN, COTTER
    PIN, COTTER
  • 3
    7555796 WASHER, CONE
    WASHER, CONE
  • 4
    5135546 HUB, REAR
    HUB, REAR
  • 5
    7515513 STUD
    STUD
  • 6
    5135671 CARRIER, BEARING, REAR (LEFT)
    CARRIER, BEARING, REAR (LEFT)
  • 7
    7080433 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 8
    3514342 BEARING, HUBSTRUT
    BEARING, HUBSTRUT
  • 9
    7710507 RING, RETAINING
    RING, RETAINING
  • 10
    1525017 VALVE
    VALVE
  • 11
    7518451 SCREW
    SCREW
  • 12
    5248213 DISC, BRAKE, REAR
    DISC, BRAKE, REAR
  • 13
    1520713-486 RIM, REAR (SILVER)
    RIM, REAR (SILVER)
  • 14
    7547237 NUT, FLANGE
    NUT, FLANGE
  • 15
    5413077 TIRE, REAR 22X10-12
    TIRE, REAR 22X10-12
