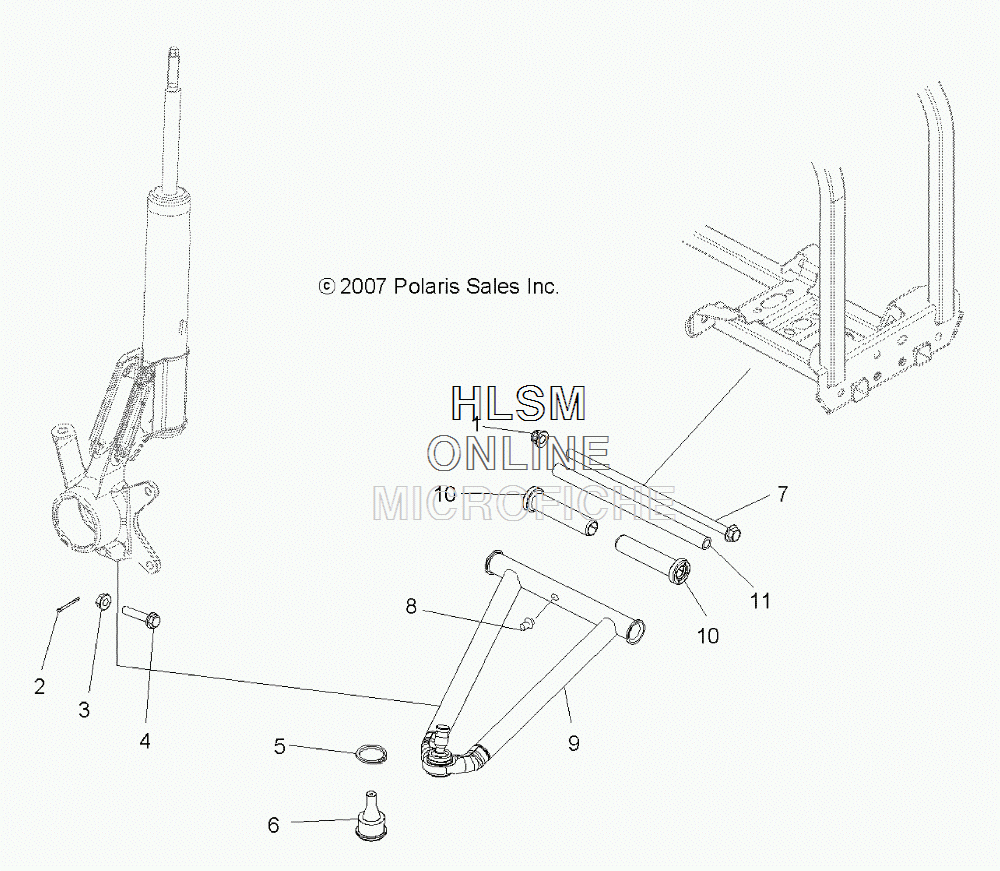

A-ARMS- MID DRIVE для Polaris HAWKEYE 2X4 (A11LB27AA) - 2011 года выпуска
-
№АртикулНазвание
-
17547313 NUT, FLANGENUT, FLANGE
-
27661203 PIN, COTTERPIN, COTTER
-
37547317 NUT, FLANGENUT, FLANGE
-
47518698 SCREWSCREW
-
57710533 RING, RETAINER, EXTERNALRING, RETAINER, EXTERNAL
-
67081263 JOINT, BALLJOINT, BALL
-
77518458 SCREW, FLANGESCREW, FLANGE
-
87080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
91542616-067 A-ARM (BLACK) (LEFT)A-ARM (BLACK) (LEFT)
-
91542617-067 A-ARM (BLACK) (RIGHT)A-ARM (BLACK) (RIGHT)
-
105436973 BUSHING, A-ARM, LONG (GREY)BUSHING, A-ARM, LONG (GREY)
-
115134926 TUBE, PIVOTTUBE, PIVOT
