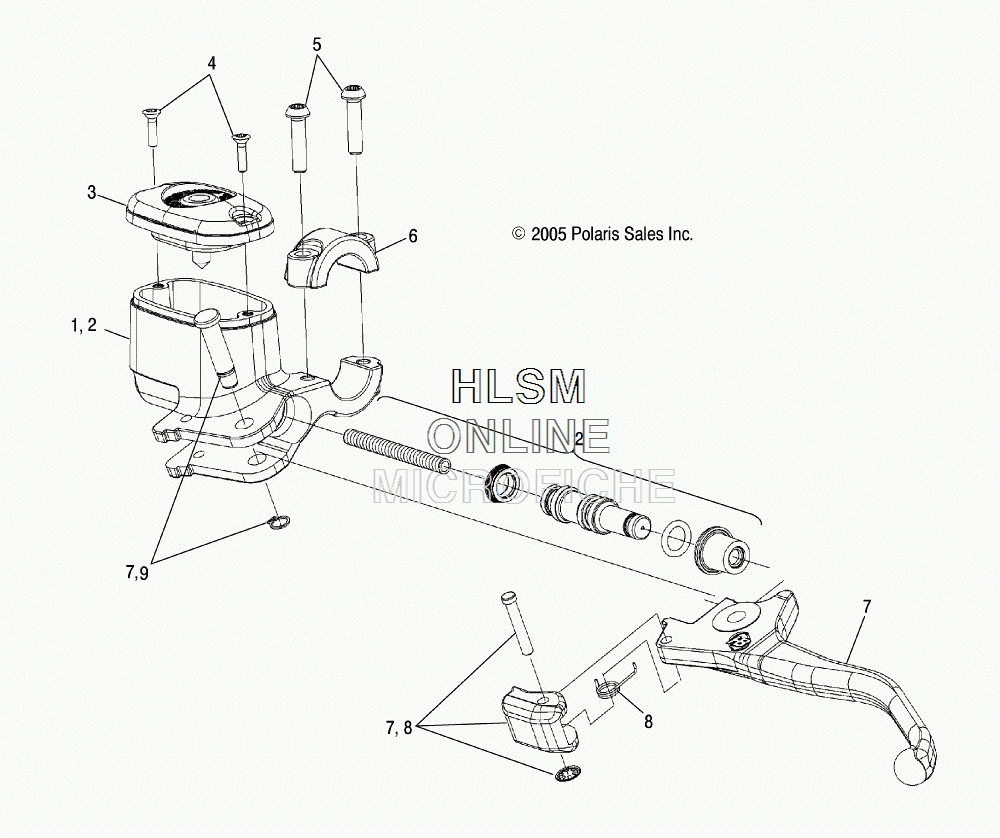

BRAKE - FRONT MASTER CYLINDER для Polaris HAWKEYE 2X4 (A11LB27AA) - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    2203060 KIT, ASM., MASTER CYLINDER (INCL. 1-9)
    KIT, ASM., MASTER CYLINDER (INCL. 1-9)
  • 2
    2203061 KIT, PISTON AND RESERVOIR BODY (INCL. RESERVOIR BODY, PISTON COMPLETE)
    KIT, PISTON AND RESERVOIR BODY (INCL. RESERVOIR BODY, PISTON COMPLETE)
  • 3
    2203055 KIT, MASTER CYLINDER COVER (INCL. COVER)
    KIT, MASTER CYLINDER COVER (INCL. COVER)
  • 4
    2203056 KIT, SCREW, MASTER CYLINDER COVER (INCL. 2 SCREWS)
    KIT, SCREW, MASTER CYLINDER COVER (INCL. 2 SCREWS)
  • 5
    2203058 KIT, SCREW, CLAMP (INCL. 2 SCREWS)
    KIT, SCREW, CLAMP (INCL. 2 SCREWS)
  • 6
    2203057 KIT, CLAMP (INCL. CLAMP)
    KIT, CLAMP (INCL. CLAMP)
  • 7
    2203053 KIT, LEVER AND PARK LEVER (INCL. BRAKE LEVER, PARK LEVER, PINS, CUPS, SPRING)
    KIT, LEVER AND PARK LEVER (INCL. BRAKE LEVER, PARK LEVER, PINS, CUPS, SPRING)
  • 8
    2203054 KIT, PARK LEVER (INCL. LEVER, PIN, CLIP, SPRING)
    KIT, PARK LEVER (INCL. LEVER, PIN, CLIP, SPRING)
  • 9
    2203059 KIT, PIVOT PIN (INCL. PIN, CLIP)
    KIT, PIVOT PIN (INCL. PIN, CLIP)
