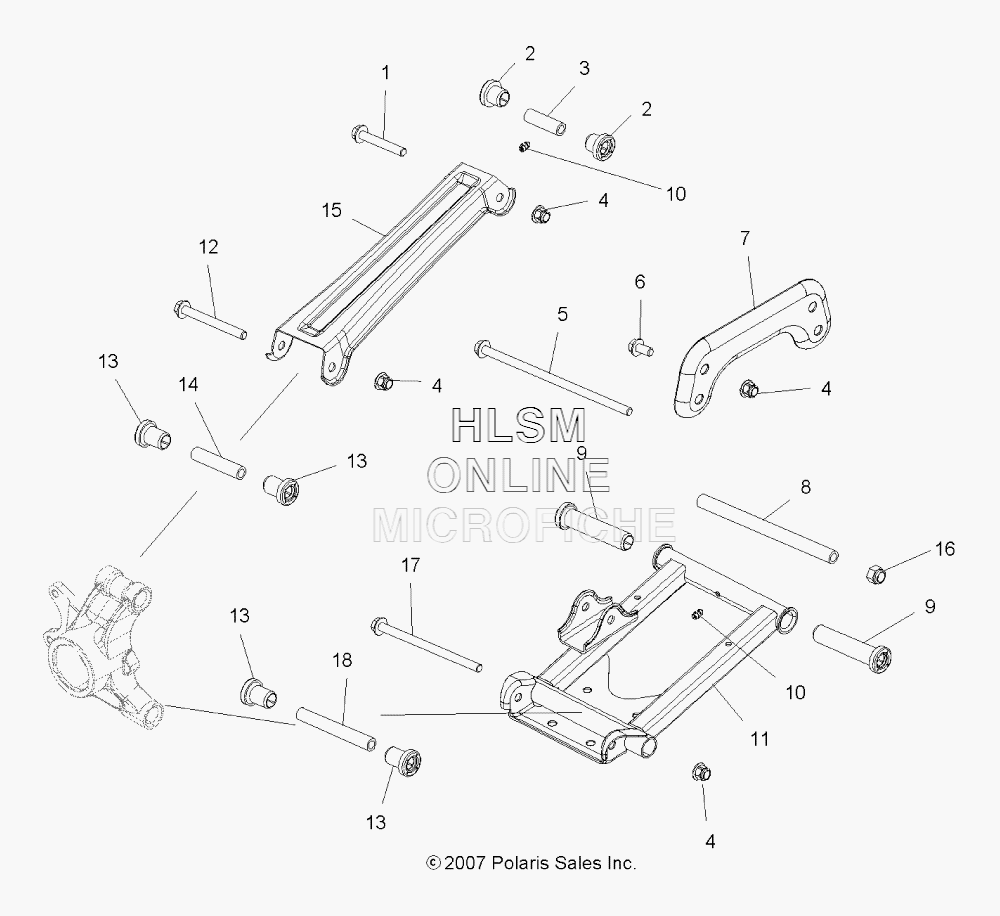

SUSPENSION- REAR для Polaris SPORTSMAN 400 HO 4X4 (A10LH46AX) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    7518473 SCREW, FLANGE
    SCREW, FLANGE
  • 2
    5436971 BUSHING, X-SHORT, GREY
    BUSHING, X-SHORT, GREY
  • 3
    5135495 TUBE, PIVOT
    TUBE, PIVOT
  • 4
    7547313 NUT, FLANGE
    NUT, FLANGE
  • 5
    7518472 BOLT, FLANGE
    BOLT, FLANGE
  • 6
    7518700 BOLT
    BOLT
  • 7
    5249760-067 BRACKET, SUPPORT, REAR SUSPENSION (BLACK)
    BRACKET, SUPPORT, REAR SUSPENSION (BLACK)
  • 8
    5135494 TUBE, PIVOT
    TUBE, PIVOT
  • 9
    5436973 BUSHING, A-ARM, LONG
    BUSHING, A-ARM, LONG
  • 10
    7080433 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 11
    1016211-067 ARM, CONTROL, REAR (BLACK) (LEFT)
    ARM, CONTROL, REAR (BLACK) (LEFT)
  • 11
    1016212-067 ARM, CONTROL, REAR (BLACK) (RIGHT)
    ARM, CONTROL, REAR (BLACK) (RIGHT)
  • 12
    7518468 SCREW, FLANGE
    SCREW, FLANGE
  • 13
    5436972 BUSHING, SHORT
    BUSHING, SHORT
  • 14
    5135493 TUBE, PIVOT
    TUBE, PIVOT
  • 15
    5249046-067 ARM, CONTROL, UPPER (BLACK) (LEFT)
    ARM, CONTROL, UPPER (BLACK) (LEFT)
  • 15
    5249047-067 ARM, CONTROL, UPPER (BLACK) (RIGHT)
    ARM, CONTROL, UPPER (BLACK) (RIGHT)
  • 16
    7547385 NUT, NYLOK
    NUT, NYLOK
  • 17
    7518668 BOLT
    BOLT
  • 18
    5135637 TUBE, PIVOT
    TUBE, PIVOT
