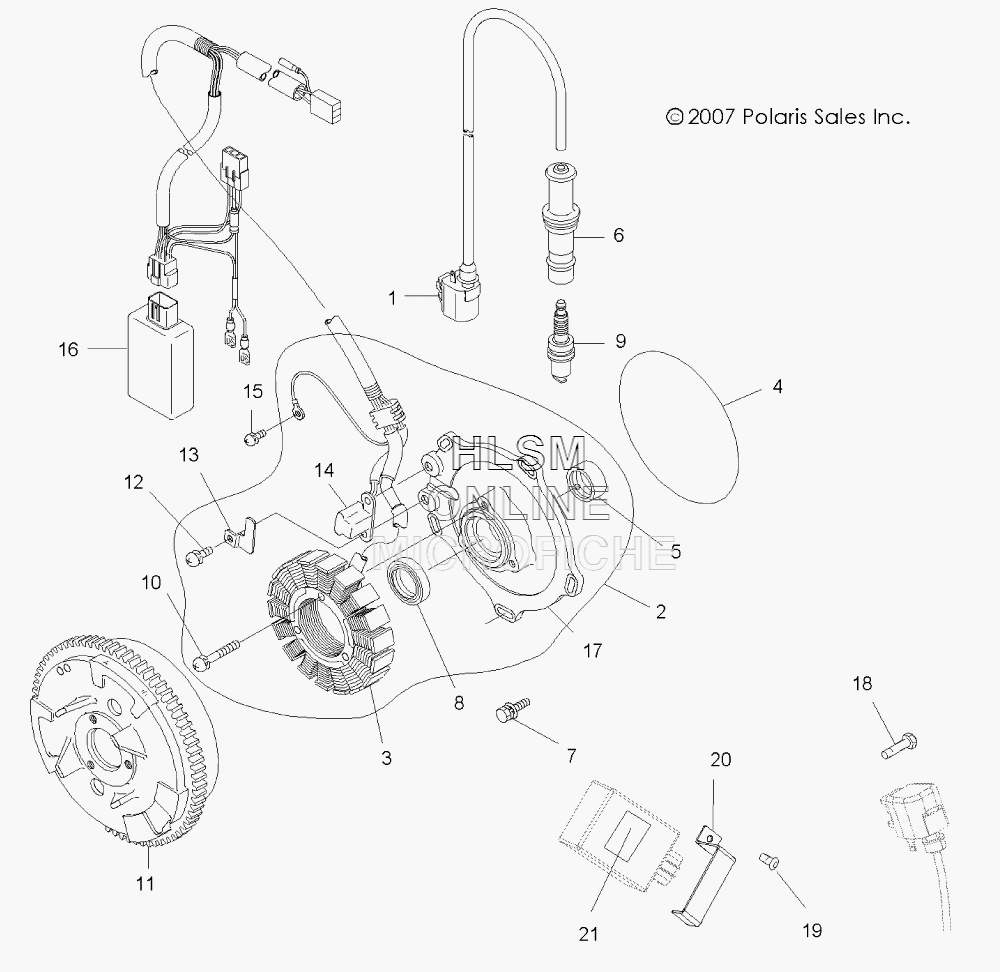

IGNITION SYSTEM для Polaris SPORTSMAN 400 HO 4X4 (A10LH46AX) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
13090020 COIL, IGNITION (INCL. 1,6)COIL, IGNITION (INCL. 1,6)
-
23090061 ASM., PLATE (INCL. 3,5,6,10,12-15)ASM., PLATE (INCL. 3,5,6,10,12-15)
-
33090061 ASM., PLATE (INCL. 3,5,6,10,12-15)ASM., PLATE (INCL. 3,5,6,10,12-15)
-
43084978 O-RINGO-RING
-
53084972 BEARING, METALBEARING, METAL
-
63084980 CAP, SPARK PLUGCAP, SPARK PLUG
-
73081657 BOLT AND WASHERBOLT AND WASHER
-
83084973 SEAL, OILSEAL, OIL
-
93070172 PLUG, SPARK, BKR6EPLUG, SPARK, BKR6E
-
103089541 SCREW AND WASHERSCREW AND WASHER
-
113090239 FLYWHEEL W/RING GEARFLYWHEEL W/RING GEAR
-
123084976 SCREW AND WASHERSCREW AND WASHER
-
133089250 BAND, PULSEBAND, PULSE
-
143089254 COIL, PULSERCOIL, PULSER
-
153081256 SCREW AND WASHERSCREW AND WASHER
-
163090232 CDI SYSTEMCDI SYSTEM
-
173089248 PLATEPLATE
-
187512007 BOLTBOLT
-
197512017 SCREWSCREW
-
205246747 BRACKET, CDIBRACKET, CDI
-
215810317 PADPAD
