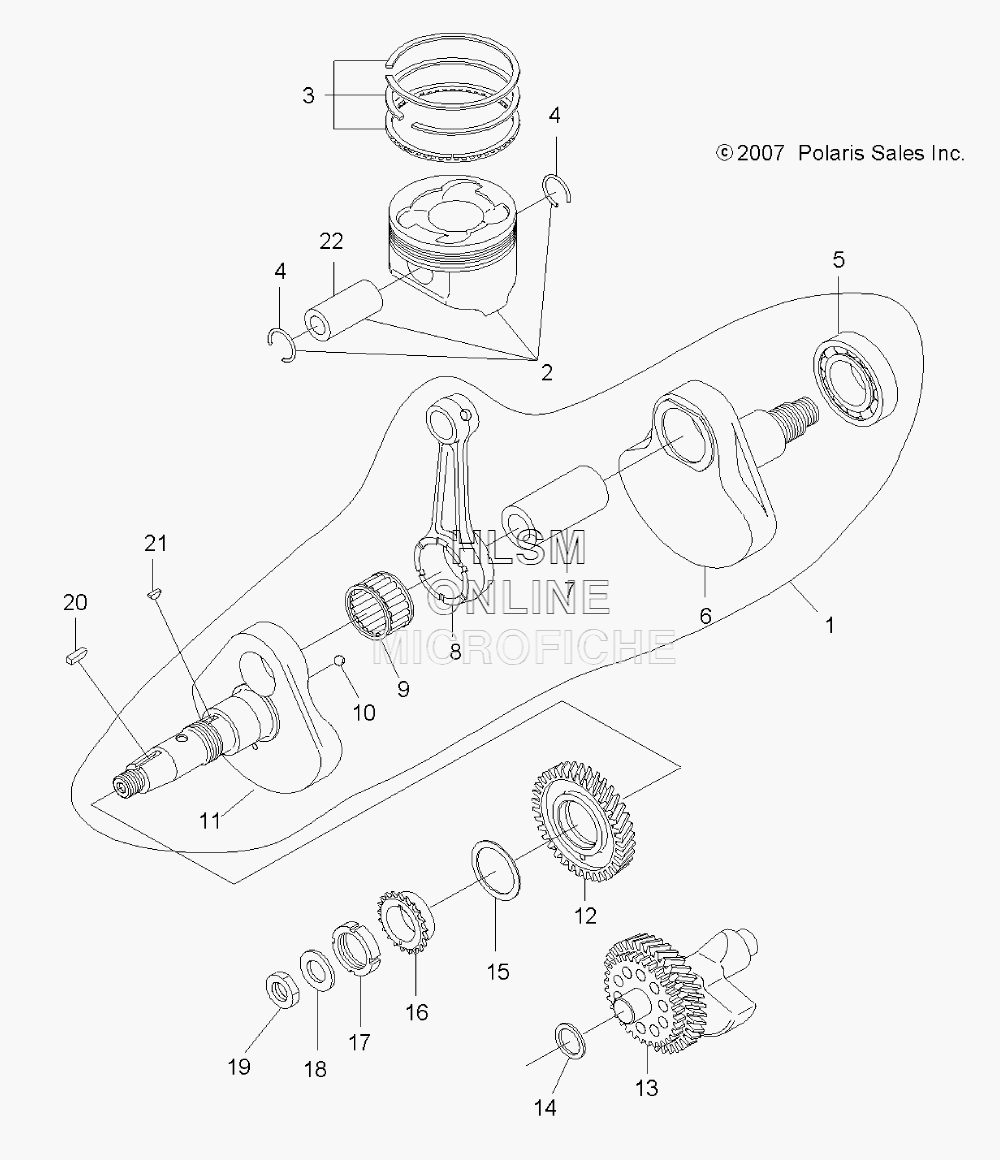

CRANKSHAFT AND PISTON для Polaris SPORTSMAN 400 HO 4X4 (A10LH46AX) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
13090040 ASM., CRANKSHAFT (INCL. 5-12)ASM., CRANKSHAFT (INCL. 5-12)
-
23087230 SET, PISTON, STANDARD (INCL. PIN, CLIPS)SET, PISTON, STANDARD (INCL. PIN, CLIPS)
-
23087231 SET, PISTON, .010 INCH/.25MM O/S (INCL. PIN, CLIPS)SET, PISTON, .010 INCH/.25MM O/S (INCL. PIN, CLIPS)
-
23087232 SET, PISTON, .020 INCH/.50MM O/S (INCL. PIN, CLIPS)SET, PISTON, .020 INCH/.50MM O/S (INCL. PIN, CLIPS)
-
33087233 SET, PISTON, RING, STANDARD (INCL. TOP, MID, BOTTOM RINGS)SET, PISTON, RING, STANDARD (INCL. TOP, MID, BOTTOM RINGS)
-
33087234 SET, PISTON, RING, .010 INCH/.25MM O/S (INCL. TOP, MID, BOTTOM RINGS)SET, PISTON, RING, .010 INCH/.25MM O/S (INCL. TOP, MID, BOTTOM RINGS)
-
33087235 SET, PISTON, RING, .020 INCH/.50MM O/S (INCL. TOP, MID, BOTTOM RINGS)SET, PISTON, RING, .020 INCH/.50MM O/S (INCL. TOP, MID, BOTTOM RINGS)
-
43085534 CLIPCLIP
-
53090044 BEARING, BALLBEARING, BALL
-
63090042 CRANKSHAFT 2CRANKSHAFT 2
-
73090043 PIN, CRANKPIN, CRANK
-
83085813 ROD, CONNECTINGROD, CONNECTING
-
93085343 BEARING, LARGE ENDBEARING, LARGE END
-
103085024 BALL, STEELBALL, STEEL
-
113089678 CRANKSHAFT 1CRANKSHAFT 1
-
123089245 BALANCER, GEAR 1BALANCER, GEAR 1
-
133090031 SHAFT, BALANCERSHAFT, BALANCER
-
143084895 SPACER, 0.8SPACER, 0.8
-
143084896 SPACER, 1.0SPACER, 1.0
-
143084897 SPACER, 1.2SPACER, 1.2
-
153240088 SPACER, 0.6SPACER, 0.6
-
153084892 SPACER, 0.8SPACER, 0.8
-
153084893 SPACER, 1.0SPACER, 1.0
-
153084894 SPACER, 1.2SPACER, 1.2
-
163084882 SPROCKET 1SPROCKET 1
-
173085528 NUT, SLITNUT, SLIT
-
183086767 WASHERWASHER
-
193083905 NUT, LOCKNUT, LOCK
-
203081447 KEYKEY
-
213240168 KEY, WOODRUFFKEY, WOODRUFF
