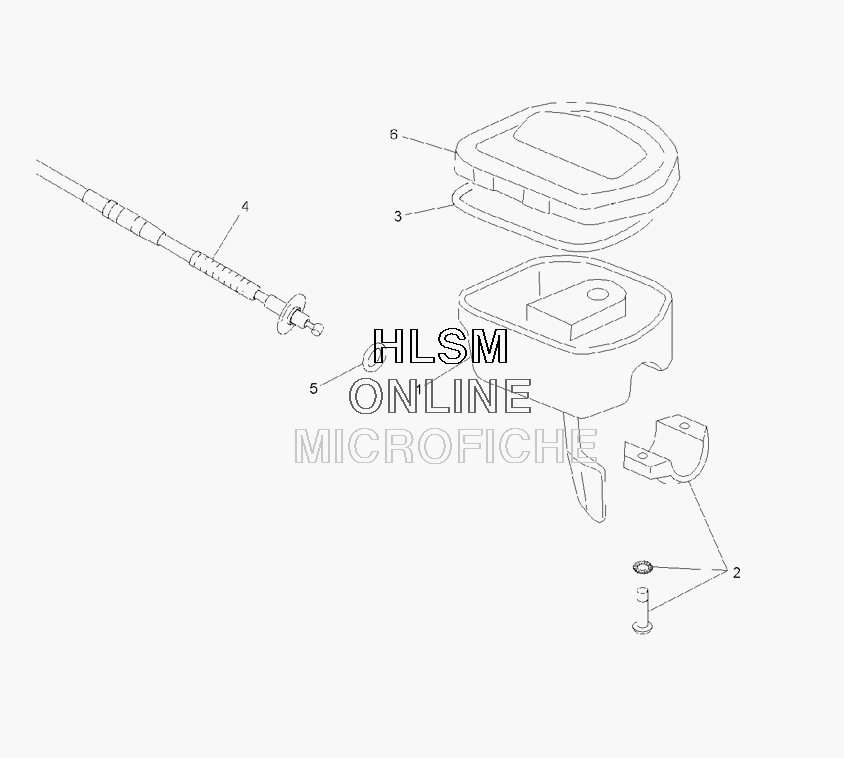

THROTTLE CONTROL ASSEMBLY для Polaris TRAIL BLAZER 330 (A09BA32AA) - 2009 года выпуска
-
№АртикулНазвание
-
12010335 ASM-THROTTLE CONTROL, 2X4 (INCL. 2)ASM-THROTTLE CONTROL, 2X4 (INCL. 2)
-
22010191 ASM-THROTTLE CLAMP (INCL. CLAMP, WASHERS, SCREWS)ASM-THROTTLE CLAMP (INCL. CLAMP, WASHERS, SCREWS)
-
35411439 O-RINGO-RING
-
47081170 CABLE-THROTTLE, 1/4 TURN, 4 STKCABLE-THROTTLE, 1/4 TURN, 4 STK
-
55410193 O RINGO RING
-
65434113 COVER-THROTTLE CONTROLCOVER-THROTTLE CONTROL
