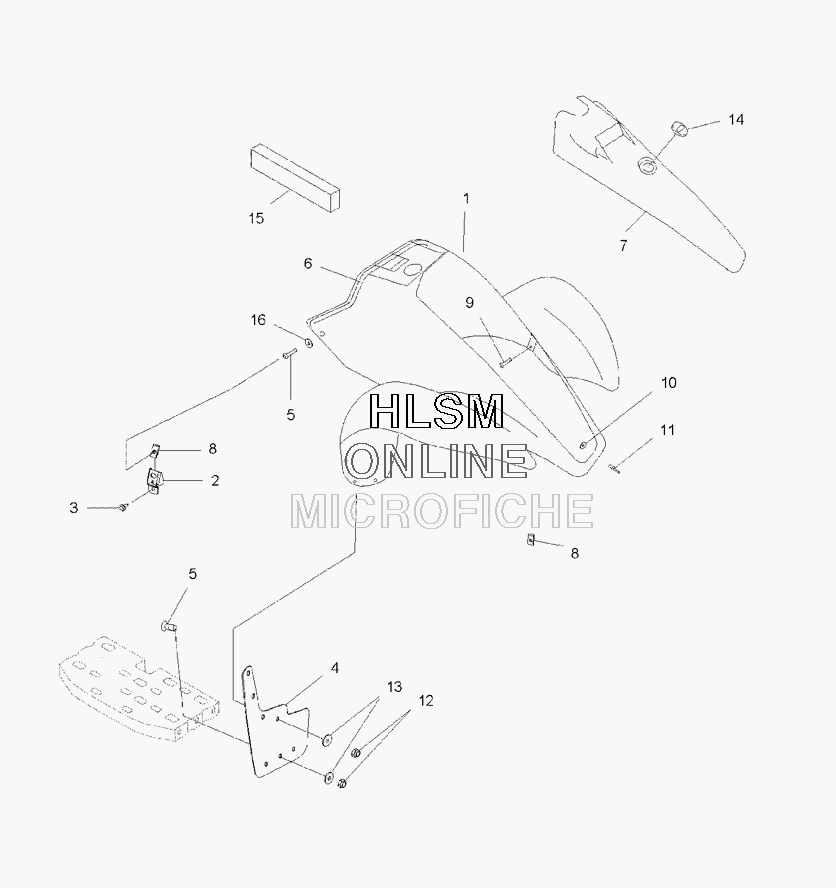

CAB - FRONT для Polaris TRAIL BLAZER 330 (A09BA32AA) - 2009 года выпуска
-
№АртикулНазвание
-
12633807-293 FRONT FENDER (INCL. WARNING DECALS)FRONT FENDER (INCL. WARNING DECALS)
-
25248183 BRKT-CAB MNT, LEFT HANDBRKT-CAB MNT, LEFT HAND
-
25248184 BRKT-CAB MNT, RIGHT HANDBRKT-CAB MNT, RIGHT HAND
-
37512232 BOLTBOLT
-
45811831 MUDFLAP-FRONT, HYBRID, LEFT HANDMUDFLAP-FRONT, HYBRID, LEFT HAND
-
45850150 MUDFLAP, RIGHT HAND, FRONT HYBRIDMUDFLAP, RIGHT HAND, FRONT HYBRID
-
57512282 BOLT, BLACKBOLT, BLACK
-
65811527 SEAL, FOAMSEAL, FOAM
-
75437471-133 COVER-FRONT, BR WHTCOVER-FRONT, BR WHT
-
87670057 NUT, SPEEDNUT, SPEED
-
97517386 SCREWSCREW
-
107558201 WASHER, FLATWASHER, FLAT
-
117621472 RIVETRIVET
-
127542122 NUT-NYLOKNUT-NYLOK
-
137555859 WASHER, FLATWASHER, FLAT
-
145436536-156 CAP-STEERING WHEEL, CHROMECAP-STEERING WHEEL, CHROME
-
155812138 FOAM-LEFT HANDFOAM-LEFT HAND
-
167556033 WASHERWASHER
