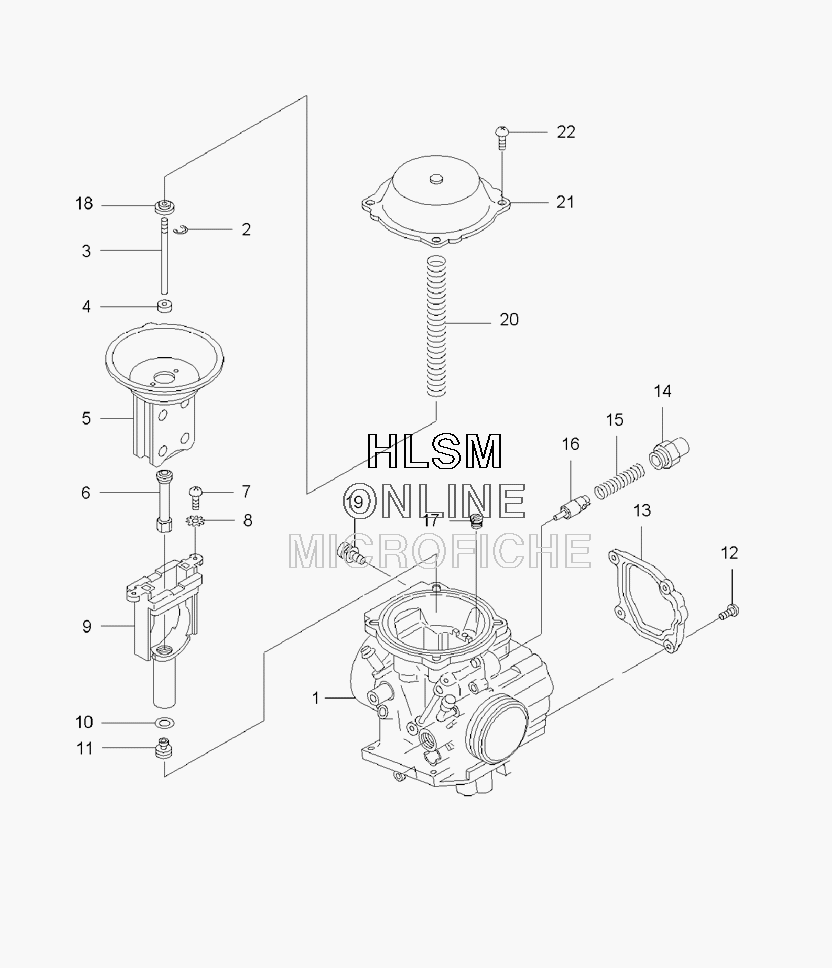

CARBURETOR - UPPER для Polaris TRAIL BLAZER 330 (A09BA32AA) - 2009 года выпуска
-
№АртикулНазвание
-
13131590 CARBURETOR ASM (INCL. 2-11, 13-18, 20-22)CARBURETOR ASM (INCL. 2-11, 13-18, 20-22)
-
23130508 E-RINGE-RING
-
33131554 NEEDLE-JET, J8-4HB48NEEDLE-JET, J8-4HB48
-
43130752 RINGRING
-
53130732 DIAPHRAGM ASM.DIAPHRAGM ASM.
-
63131588 NOZZLENOZZLE
-
73130541 SCREWSCREW
-
83130540 WASHER, SPRINGWASHER, SPRING
-
93130504 JETBLOCK ASM.JETBLOCK ASM.
-
103130014 WASHERWASHER
-
113131458 JET, MAIN, #122.5JET, MAIN, #122.5
-
123130535 SCREWSCREW
-
133130511 COVERCOVER
-
143130199 HOLDER, GUIDEHOLDER, GUIDE
-
153130538 SPRINGSPRING
-
163131228 PLUNGER, ASMPLUNGER, ASM
-
173130625 JET, AIR, PILOT, #160JET, AIR, PILOT, #160
-
183130507 RINGRING
-
193084205 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
203131129 SPRINGSPRING
-
213130503 ASM., COVERASM., COVER
-
223130924 SCREWSCREW
