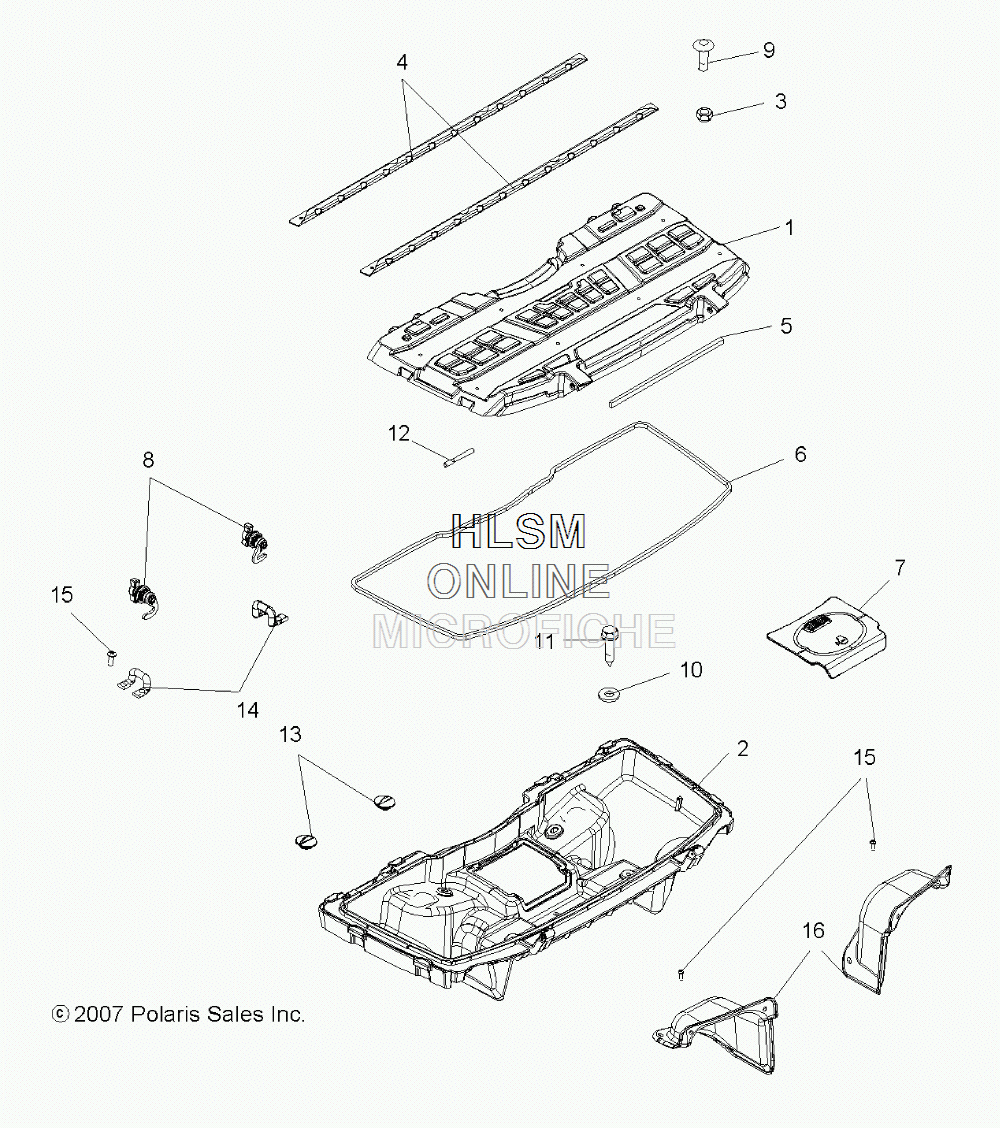

STORAGE BOX - FRONT для Polaris SPORTSMAN X2 500 EFI QUAD (A09TN50EA) (SAGEBRUSH GREEN METALLIC) - 2009 года выпуска
-
№АртикулНазвание
-
12633355-070 COVER, BOX, FRONT (BLACK)COVER, BOX, FRONT (BLACK)
-
22633446 ASM, BOX, LOWER, FRONT (INCL. 6,14-16)ASM, BOX, LOWER, FRONT (INCL. 6,14-16)
-
37542122 NUT, NYLOKNUT, NYLOK
-
45247653-418 CHANNEL, LID, FRONT (FLAT BLACK WRINKLE)CHANNEL, LID, FRONT (FLAT BLACK WRINKLE)
-
55521706 SEAL, LID/BUMPERSEAL, LID/BUMPER
-
65521693 SEALSEAL
-
75413189 COVER, RADIATOR, FRONTCOVER, RADIATOR, FRONT
-
87081421 LATCH, LEFT HANDLATCH, LEFT HAND
-
87081422 LATCH, RIGHT HANDLATCH, RIGHT HAND
-
97518427 SCREWSCREW
-
107556175 WASHER, FLATWASHER, FLAT
-
117517208 SCREWSCREW
-
125134576 PIN, HINGE, FRONTPIN, HINGE, FRONT
-
135412981 PLUG, COMPARTMENTPLUG, COMPARTMENT
-
145252765 BRACKET, LATCH, BOXBRACKET, LATCH, BOX
-
157512076 SCREWSCREW
-
165436195-070 COVER, HEADLIGHT ACCESS, LEFT HAND (BLACK)COVER, HEADLIGHT ACCESS, LEFT HAND (BLACK)
-
165436196-070 COVER, HEADLIGHT ACCESS, RIGHT HAND (BLACK)COVER, HEADLIGHT ACCESS, RIGHT HAND (BLACK)
