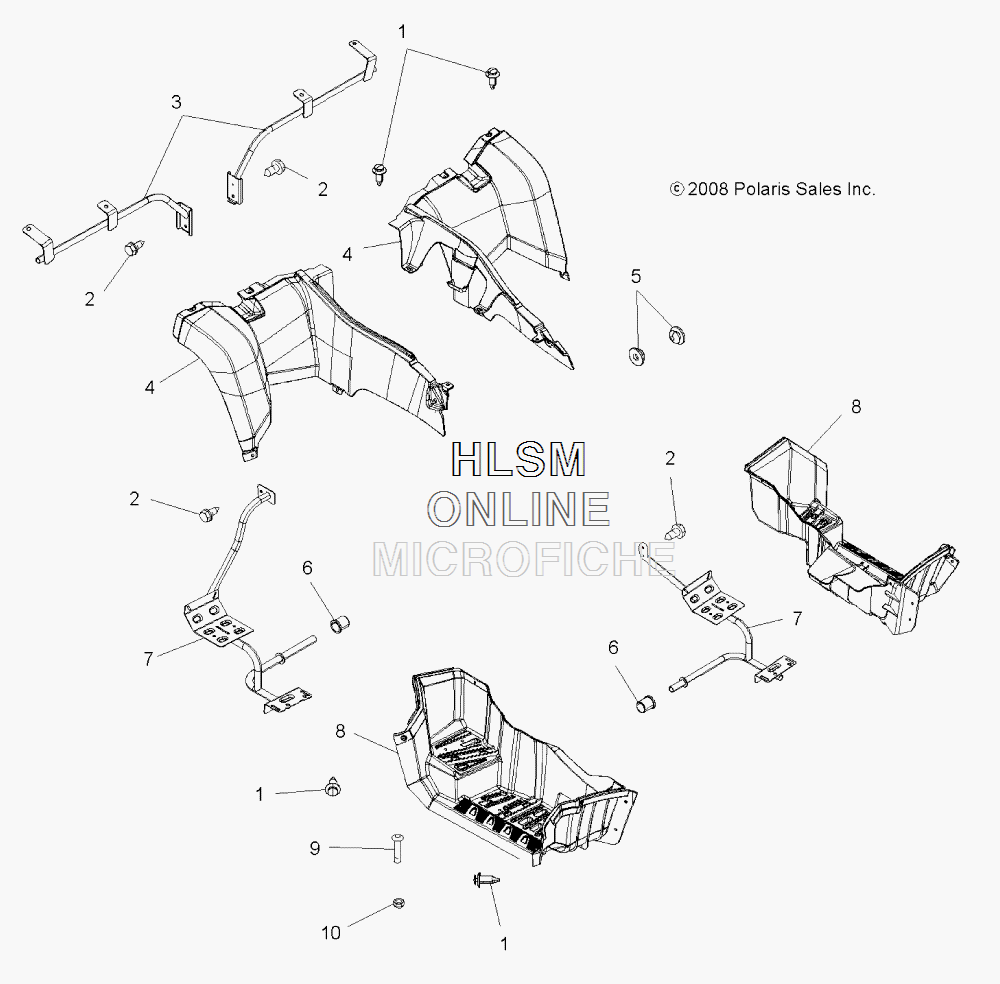

FENDER - REAR W/ SEAT для Polaris SPORTSMAN X2 500 EFI QUAD (A09TN50EA) (SAGEBRUSH GREEN METALLIC) - 2009 года выпуска
-
№АртикулНазвание
-
17661855 RIVETRIVET
-
27512232 SCREWSCREW
-
31015266-067 SUPPORT, FENDER, LEFT HANDSUPPORT, FENDER, LEFT HAND
-
31015267-067 SUPPORT, FENDER, RIGHT HANDSUPPORT, FENDER, RIGHT HAND
-
45436948-498 CAB, REAR LEFT HAND (SAGE BRUSH GREEN METALLIC)CAB, REAR LEFT HAND (SAGE BRUSH GREEN METALLIC)
-
45436949-498 CAB, REAR RIGHT HAND (SAGE BRUSH GREEN METALLIC)CAB, REAR RIGHT HAND (SAGE BRUSH GREEN METALLIC)
-
55412623 GROMMET, RUBBER, MOUNTGROMMET, RUBBER, MOUNT
-
65433369 BUSHINGBUSHING
-
71016606-329 FOOTWELL, PASSENGER LEFT HAND (BLACK)FOOTWELL, PASSENGER LEFT HAND (BLACK)
-
71016239-329 FOOTWELL, PASSENGER RIGHT HAND (BLACK)FOOTWELL, PASSENGER RIGHT HAND (BLACK)
-
85436964-070 FOOTWELL LEFT HAND (BLACK)FOOTWELL LEFT HAND (BLACK)
-
85436965-070 FOOTWELL RIGHT HAND (BLACK)FOOTWELL RIGHT HAND (BLACK)
-
97517230 SCREWSCREW
-
107542122 NUT, NYLOKNUT, NYLOK
