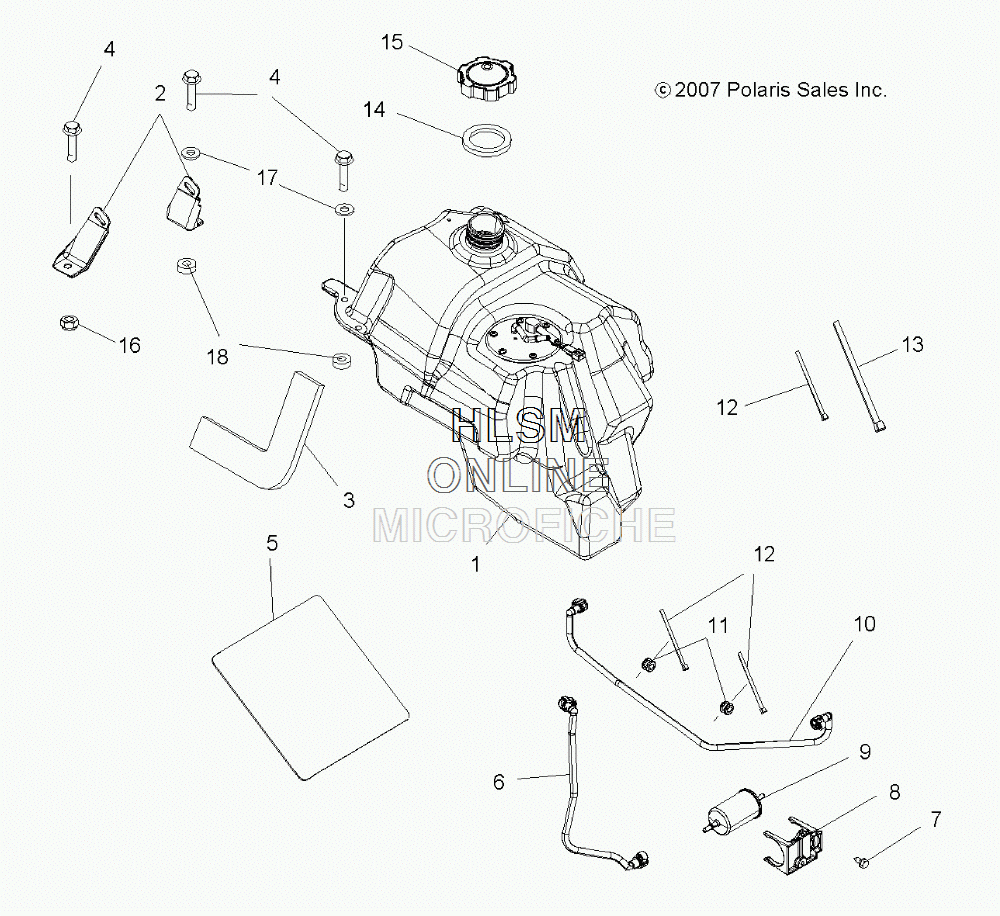

FUEL TANK для Polaris SPORTSMAN X2 500 EFI QUAD (A09TN50EA) (SAGEBRUSH GREEN METALLIC) - 2009 года выпуска
-
№АртикулНазвание
-
12520777 ASM., TANK, FUEL (INCL. PUMP, FOIL)ASM., TANK, FUEL (INCL. PUMP, FOIL)
-
25247184 BRACKET, FUEL COVER MOUNT, LEFT HANDBRACKET, FUEL COVER MOUNT, LEFT HAND
-
25247185 BRACKET, FUEL COVER MOUNT, RIGHT HANDBRACKET, FUEL COVER MOUNT, RIGHT HAND
-
35812265 SEAL, FOAMSEAL, FOAM
-
47517219 SCREWSCREW
-
55813024 FOILFOIL
-
62520443 ASM., FUEL LINE, TANK TO FILTERASM., FUEL LINE, TANK TO FILTER
-
77512232 BOLTBOLT
-
85436013 MOUNT, FUEL FILTERMOUNT, FUEL FILTER
-
92520464 FILTER, FUELFILTER, FUEL
-
102520551 ASM., FUEL LINE, FILTER/RAILASM., FUEL LINE, FILTER/RAIL
-
115413317 GROMMETGROMMET
-
127080138 CABLE TIECABLE TIE
-
137080492 CABLE TIECABLE TIE
-
145812123 GASKETGASKET
-
152520957 CAP, GAS TANK, VENTEDCAP, GAS TANK, VENTED
-
167542122 NUT, NYLOKNUT, NYLOK
-
177558301 WASHER, FLATWASHER, FLAT
-
187555916 WASHER, NYLONWASHER, NYLON
