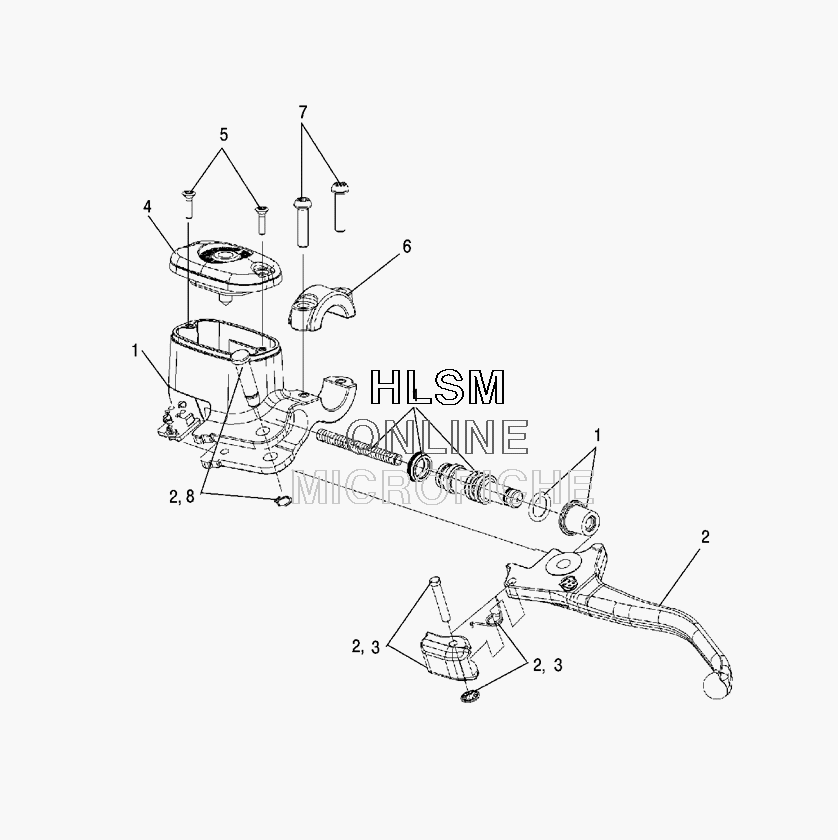

BRAKE - FRONT MASTER CYLINDER для Polaris SPORTSMAN 800 EFI HO (A09MN76AX) (GREEN/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
-2203051 KIT-M/C ASM 11/16'', HBKIT-M/C ASM 11/16'', HB
-
12203052 KIT-PISTONANDRES. BODY, 11/16'', HB (INCL. PISTON, SEALS, SPRING, BODY)KIT-PISTONANDRES. BODY, 11/16'', HB (INCL. PISTON, SEALS, SPRING, BODY)
-
22203053 KIT-LEVER AND PARK LEVER, HB (INCL. BRAKE LEVER, PARK LEVER, PINS, SPRING, SNAP RINGS)KIT-LEVER AND PARK LEVER, HB (INCL. BRAKE LEVER, PARK LEVER, PINS, SPRING, SNAP RINGS)
-
32203054 KIT-PARK LEVER, HB (INCL. PIN, LEVER, SPRING, RING)KIT-PARK LEVER, HB (INCL. PIN, LEVER, SPRING, RING)
-
42203055 KIT-M/C COVER, HB (INCL. COVER W/SEAL)KIT-M/C COVER, HB (INCL. COVER W/SEAL)
-
52203056 KIT-M/C COVER SCREWS, HB (INCL. 2 SCREWS)KIT-M/C COVER SCREWS, HB (INCL. 2 SCREWS)
-
62203093 KIT-CLAMP, HB, 11/16'' (INCL. CLAMP ONLY)KIT-CLAMP, HB, 11/16'' (INCL. CLAMP ONLY)
-
72203058 KIT-SCREWS, CLAMP, HB (INCL. 2 SCREWS)KIT-SCREWS, CLAMP, HB (INCL. 2 SCREWS)
-
82203059 KIT-PIVOT PIN, HB (INCL. BRAKE LEVER, PIN, SNAP RING)KIT-PIVOT PIN, HB (INCL. BRAKE LEVER, PIN, SNAP RING)
