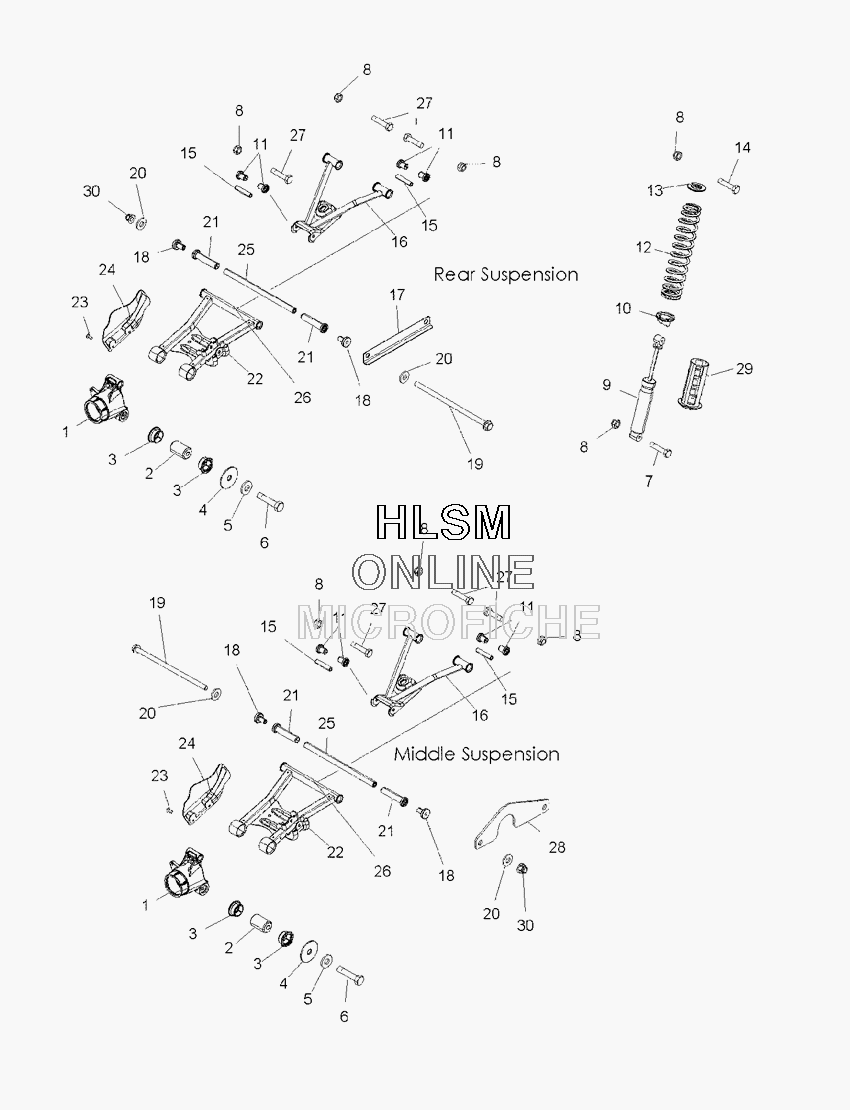

SUSPENSION - REAR для Polaris SPORTSMAN 800 EFI 6X6 (A09CL76AA) (GREEN/BLACK) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    5135563 CARRIER-BEARING,WHEEL(MACH)
    CARRIER-BEARING,WHEEL(MACH)
  • 2
    5631142 BUSHING-BRNG,CARRIER,PM,7/16
    BUSHING-BRNG,CARRIER,PM,7/16
  • 3
    5434550 BUSHING-CONTROL,LOWER, BLACK
    BUSHING-CONTROL,LOWER, BLACK
  • 4
    7555740 WASHER
    WASHER
  • 5
    7552614 WASHER, LOCK
    WASHER, LOCK
  • 6
    7517873 BOLT-7/16-14 UNC-2AX2.75'' GR5
    BOLT-7/16-14 UNC-2AX2.75'' GR5
  • 7
    7515415 SCREW
    SCREW
  • 8
    7542439 NUT,NYLOK
    NUT,NYLOK
  • 9
    7043451 SHOCK-RR,IRS,6X6
    SHOCK-RR,IRS,6X6
  • 10
    5631014 CAM,SPRING ADJUST,1-3/8
    CAM,SPRING ADJUST,1-3/8
  • 11
    5434548 BUSHING-A-ARM-SHORT, BLACK
    BUSHING-A-ARM-SHORT, BLACK
  • 12
    7041986-067 SPRING-COMP,130/165,13.8LG
    SPRING-COMP,130/165,13.8LG
  • 13
    5251753 RETAINER-SPRING,STEEL
    RETAINER-SPRING,STEEL
  • 14
    7515433 SCREW
    SCREW
  • 15
    5020826 SHAFT,A-ARM,SHORT
    SHAFT,A-ARM,SHORT
  • 16
    1014320-067 WELD-UPPER CONTROL ARM, LEFT HAND, BLACK
    WELD-UPPER CONTROL ARM, LEFT HAND, BLACK
  • 16
    1014321-067 WELD-UPPER CONTROL ARM, RIGHT HAND, BLACK
    WELD-UPPER CONTROL ARM, RIGHT HAND, BLACK
  • 17
    5252941-067 BRACKET
    BRACKET
  • 18
    5136760 RIVET
    RIVET
  • 19
    75190658 WASHER,3/8 FW
    WASHER,3/8 FW
  • 21
    5436833 BUSHING-CONTROL ARM,2.7
    BUSHING-CONTROL ARM,2.7
  • 22
    1015888-067 WELD-CONTROL,LOWER, LEFT HAND, BLACK
    WELD-CONTROL,LOWER, LEFT HAND, BLACK
  • 22
    1015889-067 WELD-CONTROL,LOWER, RIGHT HAND, BLACK
    WELD-CONTROL,LOWER, RIGHT HAND, BLACK
  • 23
    7512084 SCREW
    SCREW
  • 24
    5435008-070 SHIELD-CV,REAR,BASIC, BLACK, LEFT HAND
    SHIELD-CV,REAR,BASIC, BLACK, LEFT HAND
  • 24
    5435009-070 SHIELD-CV,REAR,BASIC, BLACK, RIGHT HAND
    SHIELD-CV,REAR,BASIC, BLACK, RIGHT HAND
  • 25
    5136759 DOWEL
    DOWEL
  • 26
    7080433 FITTING,LUBRICATION,THREADED
    FITTING,LUBRICATION,THREADED
  • 27
    7515472 BOLT
    BOLT
  • 28
    5252849-067 BRACKET
    BRACKET
  • 29
    5433551 SLEEVE,SHOCK PROTECTOR
    SLEEVE,SHOCK PROTECTOR
  • 30
    7547344 NUT-3/8-24 HEX LOC,GR8
    NUT-3/8-24 HEX LOC,GR8
