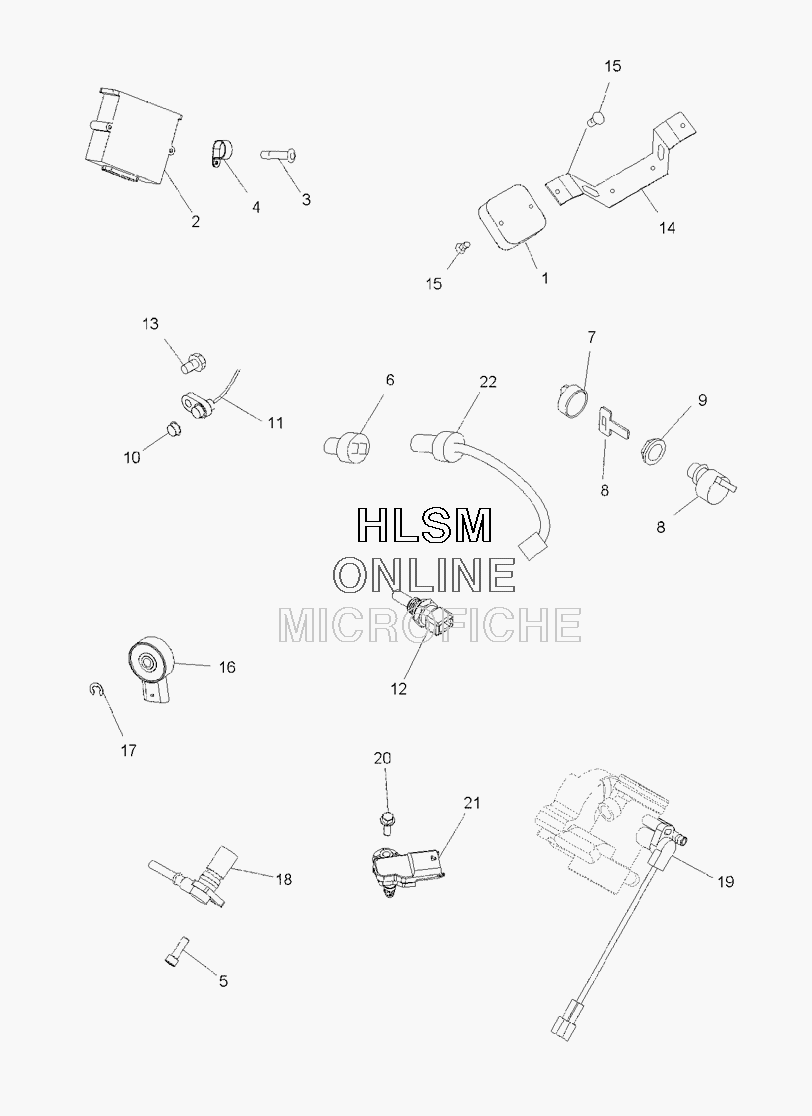

CONTROL MODULES - SWITCHES/SENSORS для Polaris SPORTSMAN 800 EFI 6X6 (A09CL76AA) (GREEN/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
14011925 REGULATOR-3PH,TALL FIN,SEALEDREGULATOR-3PH,TALL FIN,SEALED
-
24011599 ECU-1.1B,NO START,COMMONECU-1.1B,NO START,COMMON
-
37518486 SCREW-10-24X2,TX/PH,TAP-RSCREW-10-24X2,TX/PH,TAP-R
-
47080585 CLAMP, 1''HOSECLAMP, 1''HOSE
-
57517384 SCREW,SOCHD,M6X20SCREW,SOCHD,M6X20
-
64110164 SWITCH,STOPLIGHT (BRAKE LIGHTS)SWITCH,STOPLIGHT (BRAKE LIGHTS)
-
75433534 KEY COVER-KEYSWITCHKEY COVER-KEYSWITCH
-
84012165 SWITCH-KEY,3 POS,MT SLV (INCL. KEY)SWITCH-KEY,3 POS,MT SLV (INCL. KEY)
-
84010278 KEY BLANK (20/21/67/68) SERIES (SEE NOTE)KEY BLANK (20/21/67/68) SERIES (SEE NOTE)
-
84010321 KEY BLANK (22/23/27/28) SERIES (SEE NOTE)KEY BLANK (22/23/27/28) SERIES (SEE NOTE)
-
95433733 NUT,IGNITION SWITCHNUT,IGNITION SWITCH
-
105132382 CAP-HALL SENSORCAP-HALL SENSOR
-
114011640 SENSOR-HALL EFFECT,32'' (VEHICLE SPEED)SENSOR-HALL EFFECT,32'' (VEHICLE SPEED)
-
124010644 SENSOR-THERMISTERSENSOR-THERMISTER
-
137517658 SCREWSCREW
-
145248725 BRKT-MOUNT,VOLTAGE REG,PLATEDBRKT-MOUNT,VOLTAGE REG,PLATED
-
157512024 SCREWSCREW
-
163233835 SWITCH-ROTARY,6 PIN (GEAR POSITION)SWITCH-ROTARY,6 PIN (GEAR POSITION)
-
173233834 RING-RETAININGRING-RETAINING
-
182410720 SENSOR-CRANK POSITIONSENSOR-CRANK POSITION
-
192410342 SENSOR-THROTTLE POSITION KEIHNSENSOR-THROTTLE POSITION KEIHN
-
207517658 SCREWSCREW
-
212410422 SENSOR-T MAPSENSOR-T MAP
-
224010758 SWITCH-PRESSURE,BRAKE,W/CONSWITCH-PRESSURE,BRAKE,W/CON
