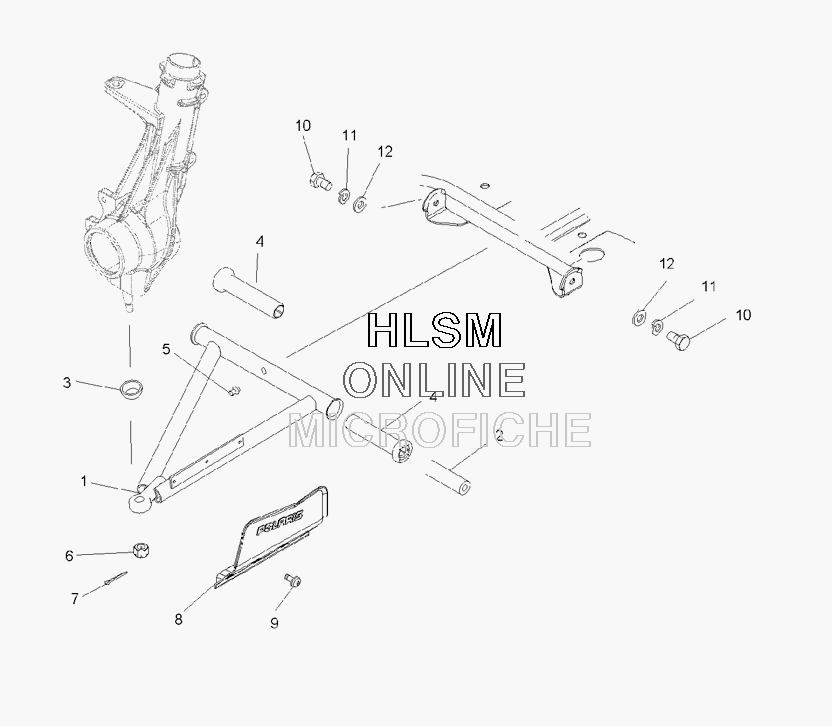

SUSPENSION - A-ARM/STRUT - MOUNTING для Polaris SPORTSMAN 800 EFI 6X6 (A09CL76AA) (GREEN/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
11542656-067 WELD-A-FRAME,FLARED, LEFT HAND, BLACK (INCL. 2,4,5,7,10,11,12)WELD-A-FRAME,FLARED, LEFT HAND, BLACK (INCL. 2,4,5,7,10,11,12)
-
11542657-067 WELD-A-FRAME,FLARED, RIGHT HAND, BLACK (INCL. 2,4,5,7,10,11,12)WELD-A-FRAME,FLARED, RIGHT HAND, BLACK (INCL. 2,4,5,7,10,11,12)
-
25133806 SHAFT-A-ARM-SHAFT-A-ARM-
-
35412658 BOOT-BALLJOINT,GREASELESS,STRTBOOT-BALLJOINT,GREASELESS,STRT
-
45434551 BUSHING-A-ARM,LONG, BLACKBUSHING-A-ARM,LONG, BLACK
-
57080433 FITTING,LUBRICATION,THREADED(10FITTING,LUBRICATION,THREADED(10
-
67542438 NUT, CASTLENUT, CASTLE
-
77661203 PIN,COTTERPIN,COTTER
-
85435028-070 SHIELD-CV,FRONT,BASIC, LEFT HAND, BLACK-SHIELD-CV,FRONT,BASIC, LEFT HAND, BLACK-
-
85435029-070 SHIELD-CV,FRONT,BASIC, RIGHT HAND, BLACK-SHIELD-CV,FRONT,BASIC, RIGHT HAND, BLACK-
-
97512084 SCREWSCREW
-
107512492 SCREWSCREW
-
117552603 WASHER,SPRING LOCKWASHER,SPRING LOCK
-
127555832 WASHERWASHER
