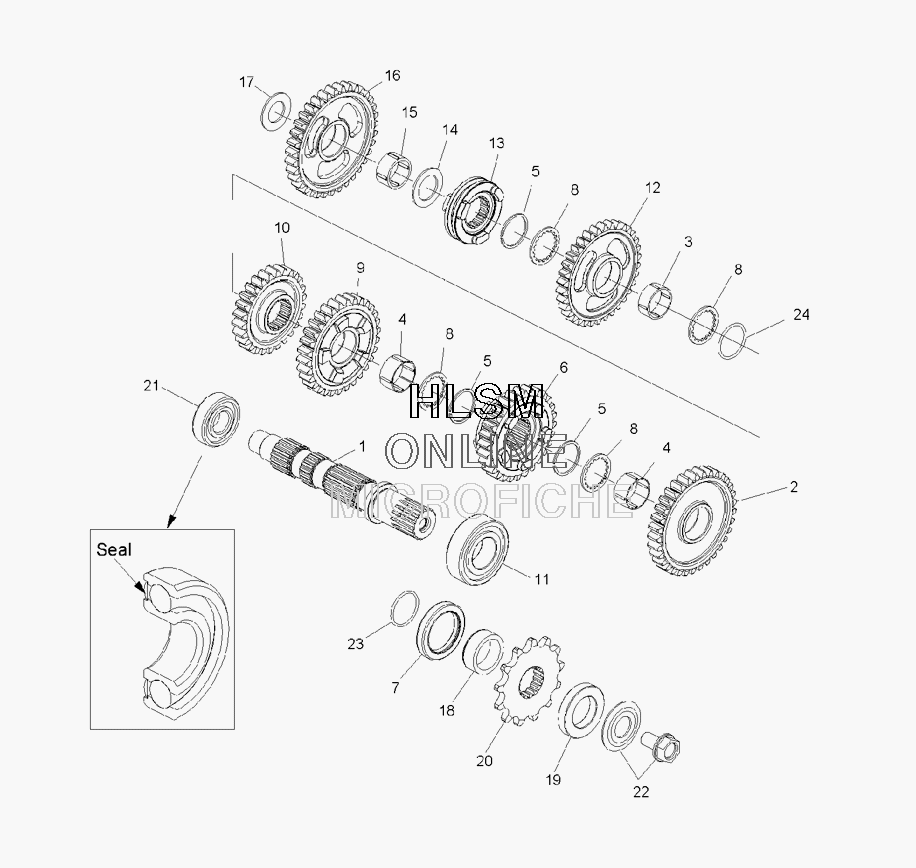

TRANSMISSION 2 для Polaris OUTLAW 525 S (A09GJ52AA) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    6230376 SHAFT-COUNTER, TRANS, 525ATV
    SHAFT-COUNTER, TRANS, 525ATV
  • 2
    6230378 GEAR-2ND, COUNTERSHAFT, 33T
    GEAR-2ND, COUNTERSHAFT, 33T
  • 3
    3514598 BEARING-NEEDLE, 22X26X10, SPLIT
    BEARING-NEEDLE, 22X26X10, SPLIT
  • 4
    3514597 BEARING-NEEDLE, 22X26X13, SPLIT
    BEARING-NEEDLE, 22X26X13, SPLIT
  • 5
    7710611 RING-SNAP, 25MM
    RING-SNAP, 25MM
  • 6
    6230380 GEAR-4TH, COUNTERSHAFT, 28T
    GEAR-4TH, COUNTERSHAFT, 28T
  • 7
    5413246 SEAL-SHAFT, 32X45X7MM BSLNBR
    SEAL-SHAFT, 32X45X7MM BSLNBR
  • 8
    7556437 WASHER-THRUST, 22.6X30X1.5, 18T
    WASHER-THRUST, 22.6X30X1.5, 18T
  • 9
    6230379 GEAR-3RD, COUNTERSHAFT, 30T
    GEAR-3RD, COUNTERSHAFT, 30T
  • 10
    6230381 GEAR-5TH, COUNTERSHAFT, 26T
    GEAR-5TH, COUNTERSHAFT, 26T
  • 11
    3514573 BEARING-CYL ROLLER NJ205
    BEARING-CYL ROLLER NJ205
  • 12
    6230383 GEAR-REVERSE, COUNTERSHAFT, 34T
    GEAR-REVERSE, COUNTERSHAFT, 34T
  • 13
    6230382 DOG-ENGAGEMENT, 1ST/REV
    DOG-ENGAGEMENT, 1ST/REV
  • 14
    7556440 WASHER-THRUST, 20.2X31X1.5MM
    WASHER-THRUST, 20.2X31X1.5MM
  • 15
    3514600 BEARING-NEEDLE, 22X26X12MM
    BEARING-NEEDLE, 22X26X12MM
  • 16
    6230377 GEAR-1ST, COUNTERSHAFT, 35T
    GEAR-1ST, COUNTERSHAFT, 35T
  • 17
    7556441 WASHER-THRUST, 17.2X30X1.5MM
    WASHER-THRUST, 17.2X30X1.5MM
  • 18
    5135844 BUSHING-SPACER 12MM, CNTRSHAFT
    BUSHING-SPACER 12MM, CNTRSHAFT
  • 19
    7661941 COLLAR-SPACER, CS SPROCKET
    COLLAR-SPACER, CS SPROCKET
  • 20
    3222160 SPROCKET-COUNTERSHAFT, 14T
    SPROCKET-COUNTERSHAFT, 14T
  • 20
    3222180 SPROCKET-14T, FRT, OUTLAW 450/525
    SPROCKET-14T, FRT, OUTLAW 450/525
  • 20
    3222181 SPROCKET-15T, FRT, OUTLAW 450/525
    SPROCKET-15T, FRT, OUTLAW 450/525
  • 21
    3514596 BEARING-BALL DPGRV 6203 RSH C3
    BEARING-BALL DPGRV 6203 RSH C3
  • 22
    2203497 KIT-CS SPROCKET BOLT AND WASHER
    KIT-CS SPROCKET BOLT AND WASHER
  • 23
    5413251 O-RING 25.12X1.78MM NBR70
    O-RING 25.12X1.78MM NBR70
  • 24
    5251733 SHIM-TRANSMISSION, 25X30X0.2MM
    SHIM-TRANSMISSION, 25X30X0.2MM
  • 24
    5251734 SHIM-TRANSMISSION, 25X30X0.3MM
    SHIM-TRANSMISSION, 25X30X0.3MM
