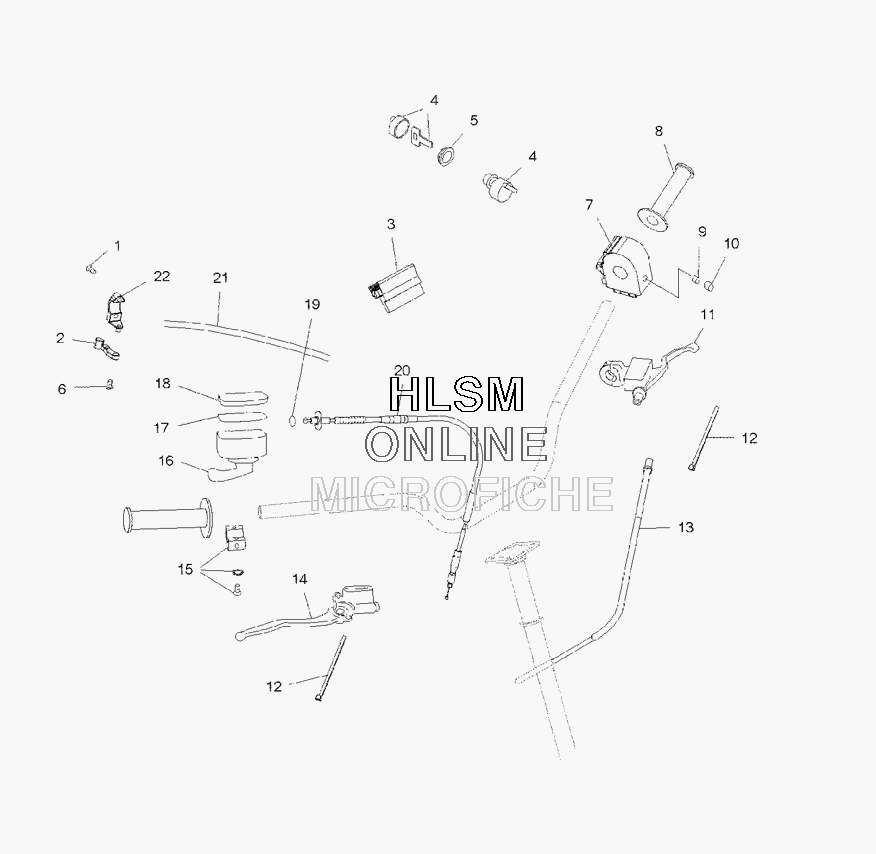

CONTROLS- THROTTLE ASSY/CABLE для Polaris OUTLAW 525 S (A09GJ52AA) - 2009 года выпуска`
-
№АртикулНазвание
-
17517305 SCREW, SOCHD, M6X20SCREW, SOCHD, M6X20
-
25135435 LEVER-REVERSE (MACH)LEVER-REVERSE (MACH)
-
34010315 PANEL-INDICATOR, SVC, STD PVTPANEL-INDICATOR, SVC, STD PVT
-
44012163 SWITCH-IGNITION, MT SLV (INCL. 5, KEY AND COVER)SWITCH-IGNITION, MT SLV (INCL. 5, KEY AND COVER)
-
44010278 KEY BLANK (20/21/67/68) SERIES (SEE NOTE)KEY BLANK (20/21/67/68) SERIES (SEE NOTE)
-
55433733 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
-
67518647 BOLT-M6X1.0X8, PH/TX, LX-OLIVE DBOLT-M6X1.0X8, PH/TX, LX-OLIVE D
-
74011442 SWITCH-HANDLEBAR, H/L/O, STARTSWITCH-HANDLEBAR, H/L/O, START
-
85436089-070 GRIP-HANDLEBAR, 50 DURIGHT HAND BLACKGRIP-HANDLEBAR, 50 DURIGHT HAND BLACK
-
97517625 SCREW, SETSCREW, SET
-
105432952 PLUG, HOLEPLUG, HOLE
-
112010292 ASM-CLUTCH LEVER, HYDRAULICASM-CLUTCH LEVER, HYDRAULIC
-
112010328 SWITCH-CLUTCH, MAGURASWITCH-CLUTCH, MAGURA
-
127080138 CABLE TIECABLE TIE
-
132010327 LINE-HYDRAULIC CLUTCH, MAGURALINE-HYDRAULIC CLUTCH, MAGURA
-
141911392 ASM-M/CYL.W/REV.BRKT,ADJ,14MMASM-M/CYL.W/REV.BRKT,ADJ,14MM
-
152010191 ASM-THROTTLE CLAMPASM-THROTTLE CLAMP
-
162010335 ASM-THROTTLE CONTROL, 2X4ASM-THROTTLE CONTROL, 2X4
-
175411439 O-RINGO-RING
-
185434113 COVER-THROTTLE CONTROLCOVER-THROTTLE CONTROL
-
195410193 O RINGO RING
-
207081542 BRAKE CABLEBRAKE CABLE
-
217081541 CABLE-REVERSECABLE-REVERSE
-
225135514 BRKT-REVERSE LEVERBRKT-REVERSE LEVER
