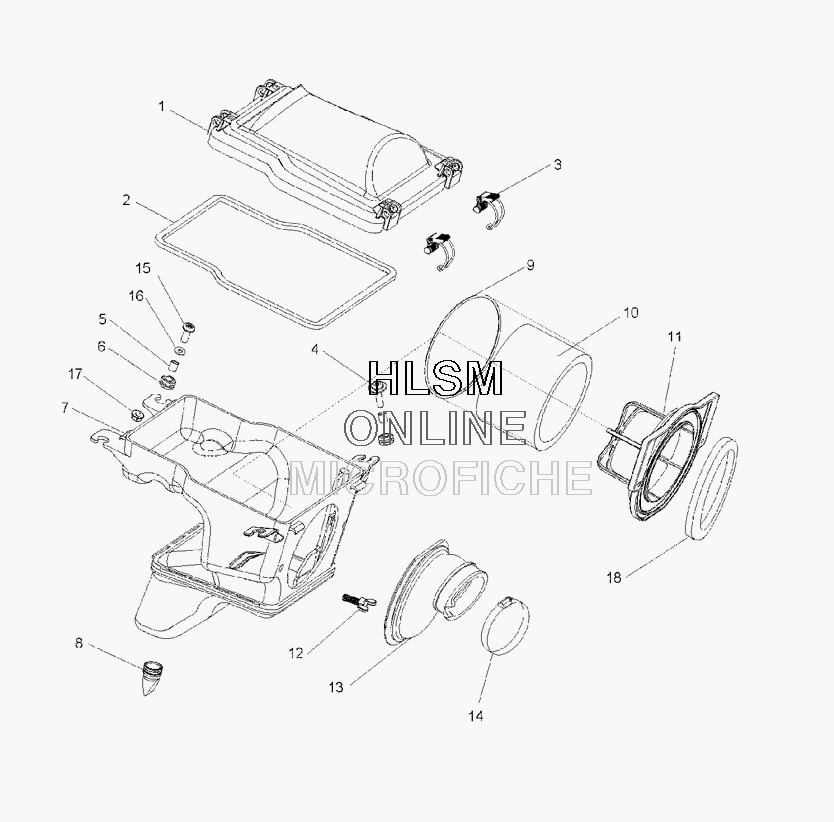

AIR INTAKE SYSTEM для Polaris OUTLAW 525 S (A09GJ52AA) - 2009 года выпуска
-
№АртикулНазвание
-
-1240350 ASM-AIR INTAKEASM-AIR INTAKE
-
15437460 COVER-AIRBOXCOVER-AIRBOX
-
25813269 SEAL-AIRBOXSEAL-AIRBOX
-
37081515 LATCH-AIRBOXLATCH-AIRBOX
-
47519069 BOLTBOLT
-
55436452 COLLAR-GROMMETCOLLAR-GROMMET
-
65412961 GROMMET-RUBBERGROMMET-RUBBER
-
75437463 HOUSING-AIRBOXHOUSING-AIRBOX
-
85413449 DRAIN-AIRBOXDRAIN-AIRBOX
-
97081441 CLAMP-AIR FILTERCLAMP-AIR FILTER
-
102520863 FILTER-AIRBOXFILTER-AIRBOX
-
115437462 SUPPORT-INNER, AIRBOXSUPPORT-INNER, AIRBOX
-
127518879 SCREW-AIRBOXSCREW-AIRBOX
-
135437461 DUCT-AIRBOXDUCT-AIRBOX
-
147080413 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
157512025 SCREWSCREW
-
167555799 WASHER, FLATWASHER, FLAT
-
177518287 NUT-#10-24 NYLOK INSERTNUT-#10-24 NYLOK INSERT
-
185813286 SEAL-FILTER, AIRBOXSEAL-FILTER, AIRBOX
