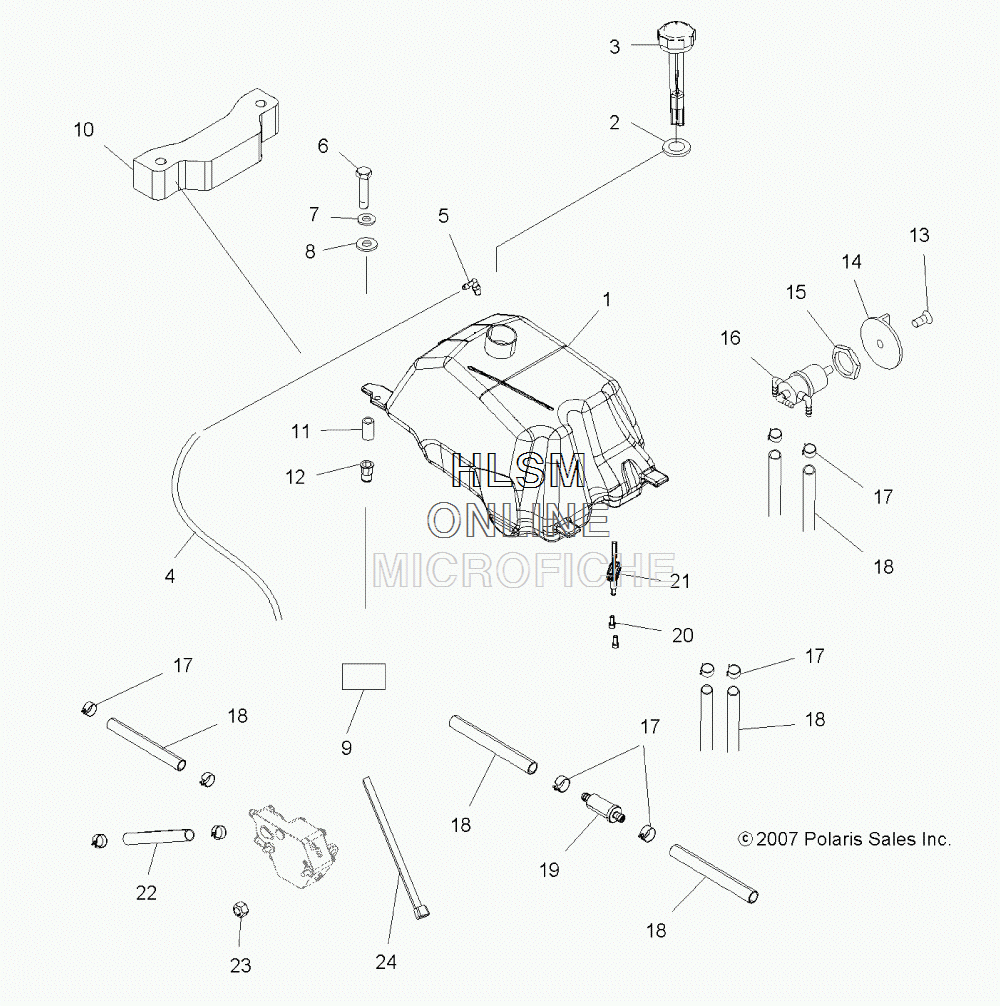

FUEL TANK для Polaris TRAILBLAZER 330 (BA32AA) (INDY RED) - 2008 года выпуска

№

Артикул

Название
1

2520409 ASM., FUEL TANK (INCL. 5,20,21)

ASM., FUEL TANK (INCL. 5,20,21)
2

5812123 GASKET

GASKET
3

2873626 KIT, FUEL GAUGE

KIT, FUEL GAUGE
4

8360009-600 LINE, FUEL

LINE, FUEL
5

5431053 VENT, TANK

VENT, TANK
6

7517451 BOLT

BOLT
7

7552801 WASHER, SPRING LOCK

WASHER, SPRING LOCK
8

7555859 WASHER, FLAT

WASHER, FLAT
9

5521131 TRIM, EDGE

TRIM, EDGE
10

5811951 SEAL, FOAM

SEAL, FOAM
11

5333936 SPACER

SPACER
12

7547069 NUTSERT, HEX

NUTSERT, HEX
13

7517505 SCREW

SCREW
14

5432559 KNOB, FUEL VALVE

KNOB, FUEL VALVE
15

5432733 NUT, FUEL VALVE

NUT, FUEL VALVE
16

7052161 VALVE, 3-WAY

VALVE, 3-WAY
17

7080003 CLAMP, HOSE

CLAMP, HOSE
18

8450117-250 HOSE, FUEL

HOSE, FUEL
19

2530009 FILTER, SMALL, IN-LINE

FILTER, SMALL, IN-LINE
20

7515136 SCREW

SCREW
21

7052364 FITTING, FUEL, DUAL OUTLET

FITTING, FUEL, DUAL OUTLET
22

8450040-600 LINE, FUEL

LINE, FUEL
23

7546601 NUT, NYLOK

NUT, NYLOK
24

7080492 CABLE TIE

CABLE TIE
